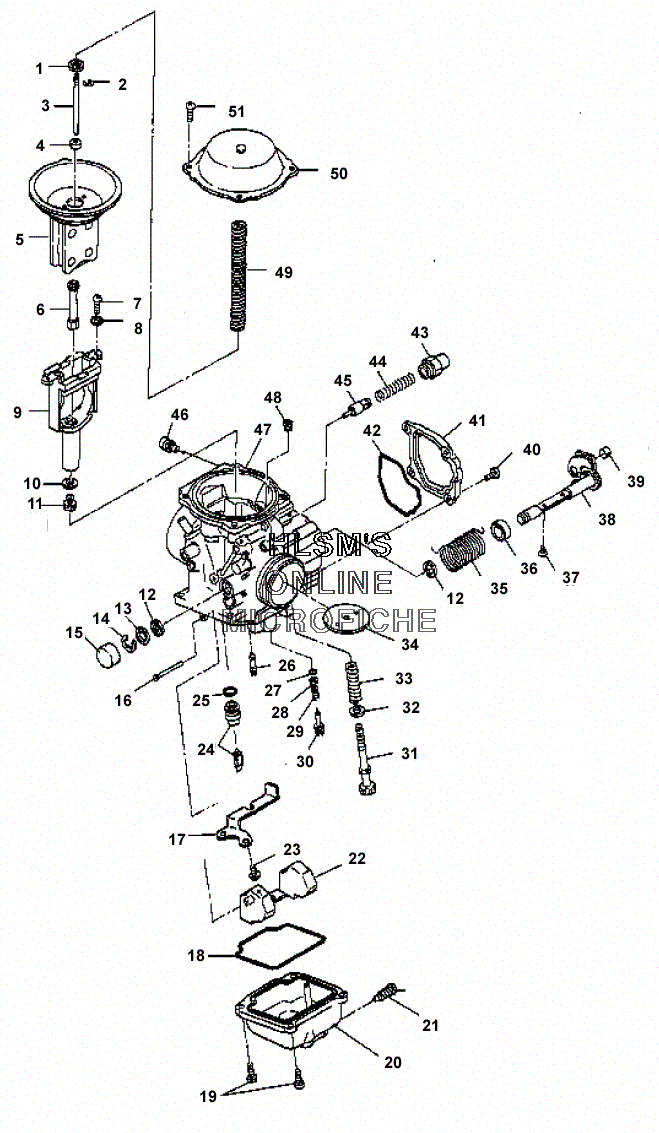

CARBURETOR для Polaris SPORTSMAN 6X6 (A02CL50AA) - 2002 года выпуска
-
№АртикулНазвание
-
13130507 RINGRING
-
23130508 E-RING,E-RING,
-
33130963 NEEDLE,JETNEEDLE,JET
-
43130752 RINGRING
-
53130732 DIAPHRAGM ASM.DIAPHRAGM ASM.
-
63131388 NEEDLE,JET [Q-4M]NEEDLE,JET [Q-4M]
-
73130541 SCREWSCREW
-
83130540 WASHER,SPRINGWASHER,SPRING
-
93130504 JETBLOCK ASM.JETBLOCK ASM.
-
103130014 WASHERWASHER
-
113131391 JET, MAIN [#142.5]JET, MAIN [#142.5]
-
123130515 SEALSEAL
-
133130517 PACKINGPACKING
-
143130518 E-RINGE-RING
-
153130519 CAPCAP
-
163130361 PIN, FLOATPIN, FLOAT
-
173130594 PLATEPLATE
-
183130532 O-RINGO-RING
-
193130520 SCREWSCREW
-
203130590 FLOATBODY ASM.FLOATBODY ASM.
-
213130521 SCREWSCREW
-
223130529 FLOAT ASM.FLOAT ASM.
-
233130591 SCREWSCREW
-
243131360 VALVE-NEEDLE [1.5]VALVE-NEEDLE [1.5]
-
253130533 O-RINGO-RING
-
263131390 JET,PILOT #40JET,PILOT #40
-
273130522 O-RINGO-RING
-
283130523 WASHERWASHER
-
293130525 SPRINGSPRING
-
303131389 ADJUSTERADJUSTER
-
313130546 SCREW, ADJ.SCREW, ADJ.
-
323130545 RINGRING
-
333130544 SPRINGSPRING
-
343130502 VALVE,THROTTLE [100]VALVE,THROTTLE [100]
-
353130589 SPRINGSPRING
-
363130514 RINGRING
-
373130501 SCREWSCREW
-
383130513 SHAFT ASM,THROTTLESHAFT ASM,THROTTLE
-
393130543 GUIDE,CABLEGUIDE,CABLE
-
403130535 SCREWSCREW
-
413130511 COVERCOVER
-
423130512 O-RINGO-RING
-
433130199 HOLDER,GUIDEHOLDER,GUIDE
-
443130538 SPRINGSPRING
-
453130593 PLUNGER ASSY.PLUNGER ASSY.
-
463130625 JET,AIR,#160JET,AIR,#160
-
473131387 ASM-CARBURETOR [INCL. 1-38,43-51]ASM-CARBURETOR [INCL. 1-38,43-51]
-
483084205 SCREW AND WASHERSCREW AND WASHER
-
493130505 SPRINGSPRING
-
503130503 COVERCOVER
-
513130592 SCREWSCREW
