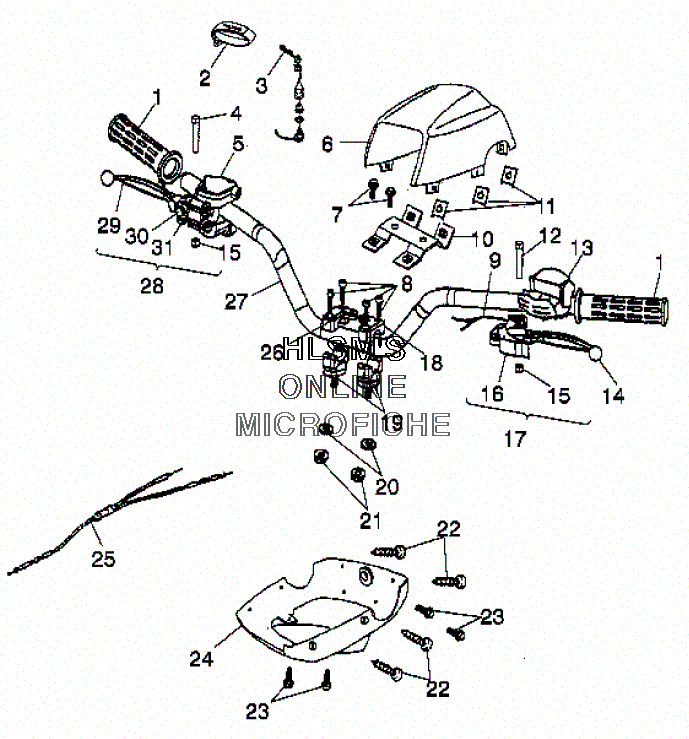

HANDLEBAR для Polaris SPORTSMAN 90 (A02FA09CB) (RED) - 2002 года выпуска
-
№АртикулНазвание
-
10450458 GRIP,HANDLE BARGRIP,HANDLE BAR
-
27080891 TETHER,WRIST BANDTETHER,WRIST BAND
-
30450550 SWITCH-SAFETYSWITCH-SAFETY
-
40450806 BOLT-BRAKE LVR,RHBOLT-BRAKE LVR,RH
-
50450689 THROTTLE ASSY.THROTTLE ASSY.
-
60450992 POD-HNDLBR,UPPERPOD-HNDLBR,UPPER
-
70450556 BOLT-HEXBOLT-HEX
-
80450148 BOLT-SOCKET,HEXBOLT-SOCKET,HEX
-
90450836 CABLE-SWTCH,SNSRCABLE-SWTCH,SNSR
-
100450468 PLATE,FIXED,PROTICTIVE COVERPLATE,FIXED,PROTICTIVE COVER
-
110450752 U-NUTU-NUT
-
120450807 BOLT-BRAKE LVR,LHBOLT-BRAKE LVR,LH
-
130450914 SWITCH-ASM,LHSWITCH-ASM,LH
-
140450693 LEVER,BRAKE, LHLEVER,BRAKE, LH
-
150450808 NUT-LOCKNUT-LOCK
-
160450692 HAND BRAKE-LOCKHAND BRAKE-LOCK
-
170450463 LEVER ASM,LH [INCL. 12,14,15,16]LEVER ASM,LH [INCL. 12,14,15,16]
-
180450460 CLAMP,LH,TOPCLAMP,LH,TOP
-
190450459 CLAMP-SADDLE,HANDLE BARCLAMP-SADDLE,HANDLE BAR
-
200450279 WASHERWASHER
-
210450276 NUT-LOCKNUT-LOCK
-
220450514 SCREW-TAPPINGSCREW-TAPPING
-
230450667 BOLT,PHILLIPSBOLT,PHILLIPS
-
240450669 POD,LOWER,HANDLE BARPOD,LOWER,HANDLE BAR
-
250450471 CABLE-THROTTLECABLE-THROTTLE
-
260450461 CLAMP,RH,TOPCLAMP,RH,TOP
-
270450663 HANDLE BARHANDLE BAR
-
280450664 ASM.,RIGHT LEVER [INCL. 5,29-31]ASM.,RIGHT LEVER [INCL. 5,29-31]
-
290450694 LEVER,BRAKE, RHLEVER,BRAKE, RH
-
300450309 BOLT-HEXBOLT-HEX
-
310450994 BRKT-BRAKE CABLEBRKT-BRAKE CABLE
