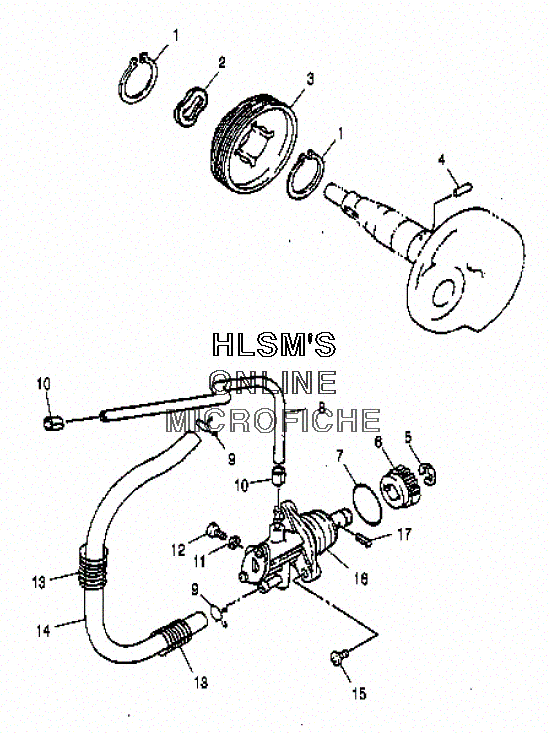

OIL PUMP для Polaris SPORTSMAN 90 (A02FA09CB) (RED) - 2002 года выпуска
-
№АртикулНазвание
-
10450060 CIRCLIP-EXTERNALCIRCLIP-EXTERNAL
-
20450655 WASHER-WAVEWASHER-WAVE
-
30450058 GEAR-DRIVE,OIL PUMPGEAR-DRIVE,OIL PUMP
-
40450059 PIN-DOWELPIN-DOWEL
-
50450052 CIRCLIP-EXTERNALCIRCLIP-EXTERNAL
-
60450050 WORMWHEEL-OILPMPWORMWHEEL-OILPMP
-
70450048 O-RINGO-RING
-
80450055 TUBE-OILTUBE-OIL
-
90450054 CLIPCLIP
-
100450056 CLIPCLIP
-
110450046 WASHERWASHER
-
120450884 BOLT-PHILLIPSBOLT-PHILLIPS
-
130450061 SPRING-PROTECEIVE,OIL PIPESPRING-PROTECEIVE,OIL PIPE
-
140450053 TUBE-OILTUBE-OIL
-
150450057 BOLT-PAN,PHILLIPSBOLT-PAN,PHILLIPS
-
160450846 ASM-OIL PUMP [INCL. 5,6,7,8,9,10,11,12,13,14,17]ASM-OIL PUMP [INCL. 5,6,7,8,9,10,11,12,13,14,17]
-
170450051 PIN-SHAFTPIN-SHAFT
