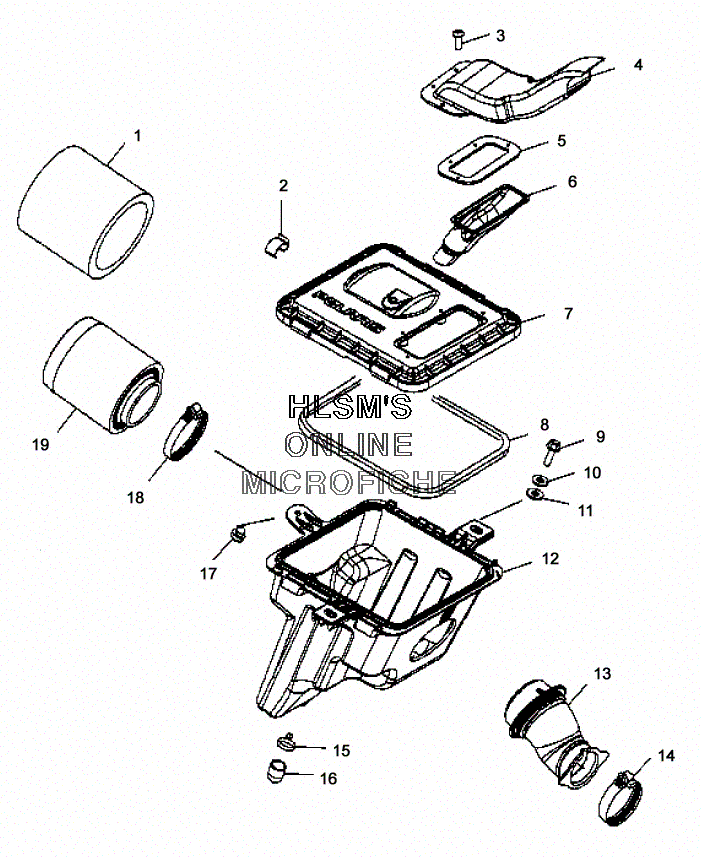

AIR BOX ASSY. для Polaris TRAIL BLAZER FREEDOM (A02BA25CB) (RED/BLUE) - 2002 года выпуска
-
№АртикулНазвание
-
15811660 FILTER,PRECLEAN.SLEEVE,4''FILTER,PRECLEAN.SLEEVE,4''
-
27670117 CLIP,AIRBOXCLIP,AIRBOX
-
37517541 SCREW,SEMSSCREW,SEMS
-
45433052 DUCT,AIRBOX CVR, 2-STRKDUCT,AIRBOX CVR, 2-STRK
-
55411422 GASKET,INTAKEGASKET,INTAKE
-
65433740 BAFFLE,AIR INLET,400BAFFLE,AIR INLET,400
-
75433051 COVER,AIRBOX,HYBRIDCOVER,AIRBOX,HYBRID
-
85811659 SEAL,AIRBOX CVR,HYBRIDSEAL,AIRBOX CVR,HYBRID
-
97515180 SCREWSCREW
-
107558301 WASHERWASHER
-
117555716 WASHERWASHER
-
125433050 BOX,AIR INTAKE,2-STK,HYBRIDBOX,AIR INTAKE,2-STK,HYBRID
-
131253389 ASM-CARB BOOT,250ASM-CARB BOOT,250
-
147080140 CLAMPCLAMP
-
157080865 CLAMP,SINGLE WIRE,.88 IDCLAMP,SINGLE WIRE,.88 ID
-
165411765 CAP,DRAIN,.75 IDCAP,DRAIN,.75 ID
-
175411766 BUMPER,RUBBERBUMPER,RUBBER
-
187080707 CLAMP,BAND,NARROWCLAMP,BAND,NARROW
-
191253355 FILTER,AIR BOX (INCL. 1)FILTER,AIR BOX (INCL. 1)
