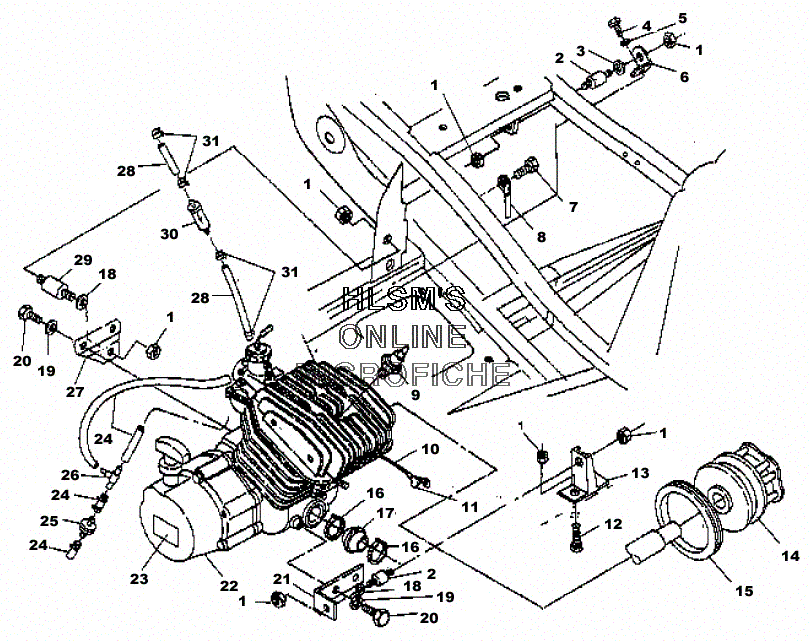

MOUNTING - ENGINE для Polaris TRAIL BLAZER FREEDOM (A02BA25CB) (RED/BLUE) - 2002 года выпуска
-
№АртикулНазвание
-
17547108 NUTNUT
-
23110026 MOUNT,MOTORMOUNT,MOTOR
-
35430802 INSULATOR,MOTOR MT.INSULATOR,MOTOR MT.
-
47512315 BOLTBOLT
-
57552901 LOCK WASHERLOCK WASHER
-
65244119-067 BRKT,ENGINE MOUNT,TOP,250,BLKBRKT,ENGINE MOUNT,TOP,250,BLK
-
77512232 BOLTBOLT
-
84010132 CABLE,GND-ENGINECABLE,GND-ENGINE
-
93070156 SPARKPLUGSPARKPLUG
-
104010129 CABLE,SOL/START,DBLBOOTCABLE,SOL/START,DBLBOOT
-
115410346 INSUL.CABLE SOL.INSUL.CABLE SOL.
-
127515481 BOLTBOLT
-
131040687-067 MOUNT,FR.ENGINE,BLK.MOUNT,FR.ENGINE,BLK.
-
167080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
175410421 BOOT,CLUTCH INTAKEBOOT,CLUTCH INTAKE
-
187555823 WASHERWASHER
-
197552603 WASHERWASHER
-
207512490 SCREWSCREW
-
215242896-067 BRKT-ENGINE MOUNT,FRT,250,BLKBRKT-ENGINE MOUNT,FRT,250,BLK
-
223084717 ENGINE, SHORT BLOCK (SEE NOTE)ENGINE, SHORT BLOCK (SEE NOTE)
-
237078577 DECAL,DRAIN RECOILDECAL,DRAIN RECOIL
-
248360009-600 FUEL LINE,1/8 ID,600 CM.FUEL LINE,1/8 ID,600 CM.
-
257051011 VENT,CHECKVALVEVENT,CHECKVALVE
-
267052005 FITTING, TEEFITTING, TEE
-
275242897-067 BRKT-ENGINE MOUNT,REAR,250,BLKBRKT-ENGINE MOUNT,REAR,250,BLK
-
288450003-1525 FUEL LINE,1/4 ID(1525 CM.)FUEL LINE,1/4 ID(1525 CM.)
-
293110028 MOUNT, MOTORMOUNT, MOTOR
-
302530009 FILTER,SMALL,IN-LINE,FILTER,SMALL,IN-LINE,
-
317080003 CLAMP,HOSECLAMP,HOSE
