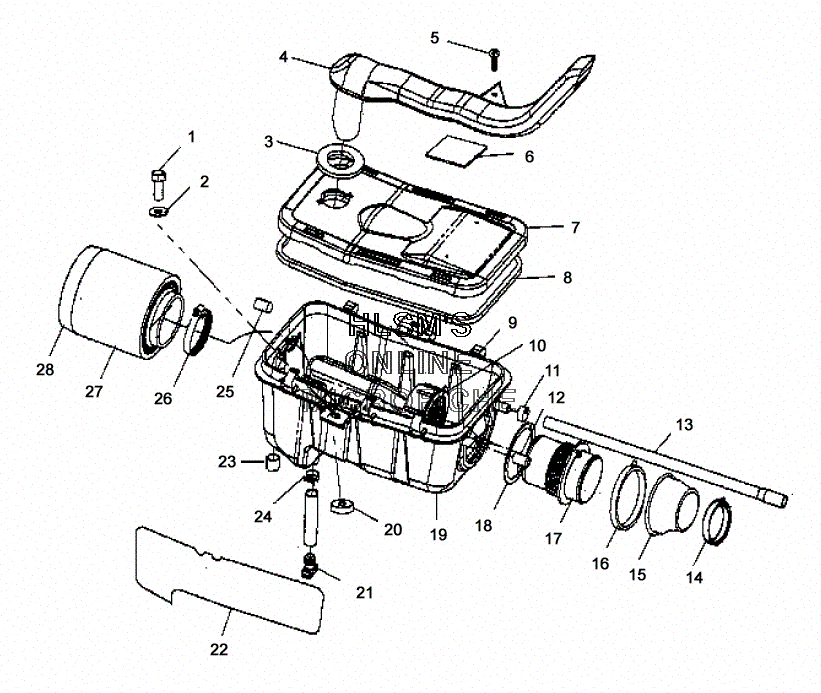

AIR BOX ASSY. для Polaris TRAIL BOSS (A02CA32AA) (BONNIE BLUE) - 2002 года выпуска
-
№АртикулНазвание
-
17515180 SCREWSCREW
-
27555859 WASHER, FLATWASHER, FLAT
-
35812023 SEAL,AIRBOX INTAKESEAL,AIRBOX INTAKE
-
45433767 DUCT,INLET,AIRBOX COVERDUCT,INLET,AIRBOX COVER
-
57517317 SCREWSCREW
-
65810317 PAD,FUELTANK BRKT.PAD,FUELTANK BRKT.
-
75433769 COVER,AIRBOXCOVER,AIRBOX
-
85811482 SEAL,AIRBOX COVERSEAL,AIRBOX COVER
-
95242044 CLIP,AIR BOXCLIP,AIR BOX
-
105432601 COLLAR,CARB INLETCOLLAR,CARB INLET
-
117080699 CLAMP,HOSECLAMP,HOSE
-
125412101 CAP-RUBBER,3/8 IDCAP-RUBBER,3/8 ID
-
135411866 HOSE,BRTHR,.47-.38X13.5''HOSE,BRTHR,.47-.38X13.5''
-
147080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
155411588 BOOT-CARB 325 PVTBOOT-CARB 325 PVT
-
167080413 CLAMP,BAND,NARROWCLAMP,BAND,NARROW
-
175433180 DUCT-CARB INLETDUCT-CARB INLET
-
185830128 GASKET,CARB.IN.DUCTGASKET,CARB.IN.DUCT
-
195433919 BOX-AIR INTAKE,4 STROKEBOX-AIR INTAKE,4 STROKE
-
207555932 WASHER,NYLONWASHER,NYLON
-
215432377 PLUG, TRAPPLUG, TRAP
-
225812111 FOIL-AIRBOX,RHFOIL-AIRBOX,RH
-
235412099 CAP-RUBBER,7/32 IDCAP-RUBBER,7/32 ID
-
247080650 CLAMP,HOSE,CLAMP,HOSE,
-
255412099 CAP-RUBBER,7/32 IDCAP-RUBBER,7/32 ID
-
267080413 CLAMP,BAND,NARROWCLAMP,BAND,NARROW
-
275811660 FILTER,PRECLEAN.SLEEVE,4''FILTER,PRECLEAN.SLEEVE,4''
-
281253372 ASM-FILTER,AIR,4.0'' LONG (INCL. 27)ASM-FILTER,AIR,4.0'' LONG (INCL. 27)
