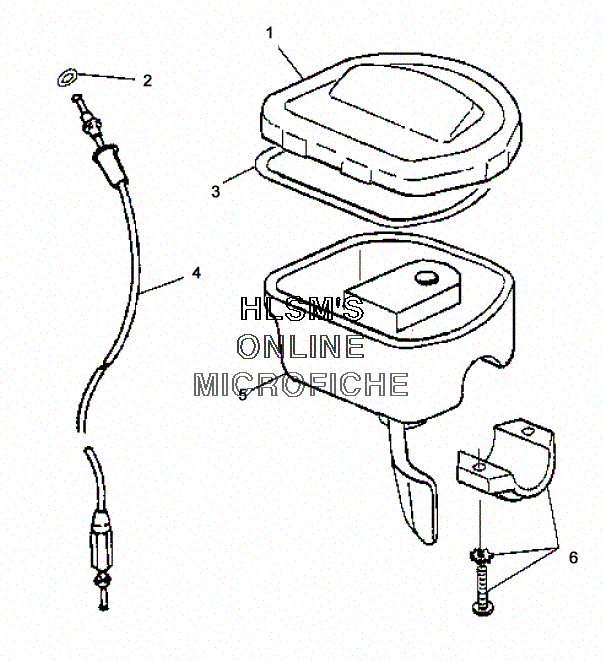

HANDLEBAR - THROTTLE ASSY. W/ CABLE для Polaris TRAIL BOSS (A02CA32AA) (BONNIE BLUE) - 2002 года выпуска`
-
№АртикулНазвание
-
15434113 COVER-THROTTLE CONTROLCOVER-THROTTLE CONTROL
-
25410193 O RINGO RING
-
35411439 O-RINGO-RING
-
47080969 CABLE-THROTTLE,1/4 TURN,991 MM (IF BUILT BEFORE 12/12/01)CABLE-THROTTLE,1/4 TURN,991 MM (IF BUILT BEFORE 12/12/01)
-
47080967 CABLE-THROTTLE,1/4 TURN,4 STK (IF BUILT AFTER 12/12/01)CABLE-THROTTLE,1/4 TURN,4 STK (IF BUILT AFTER 12/12/01)
-
52010204 ASM-THROTTLE CONTROL,HOBBS,2X4 (INCL. 6)ASM-THROTTLE CONTROL,HOBBS,2X4 (INCL. 6)
-
62010191 ASM-THROTTLE CLAMPASM-THROTTLE CLAMP
Все узлы модели:
- AIR BOX ASSY.
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER W/ BRAKE LINE
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH COVER
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER
- DECALS
- ELECTRICAL W/ TAILLIGHT ASSY.
- EXHAUST SYSTEM
- FENDER - FRONT W/ SIDE PANELS
- FENDER - REAR W/ SEAT - FRAME
- FUEL PUMP
- FUEL TANK
- GEAR SELECTOR
- GEARCASE
- GEARCASE MOUNTING
- HANDLEBAR
- • HANDLEBAR - THROTTLE ASSY. W/ CABLE
- HOUSING - REAR W/ AXLE
- MAGNETO
- MOUNTING - ENGINE
- OIL COOLING SYSTEM
- OIL PUMP AND OIL FILTER
- RACK AND BUMPER MOUNTING - FRONT
- STARTER - RECOIL
- STARTING MOTOR
- STEERING POST
- SUSPENSION - FRONT A - ARM W/ TIE RODS
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR SWING ARM W/ SHOCK MOUNTING
- TOOL KIT
- WHEEL - FRONT
- WHEEL - REAR
