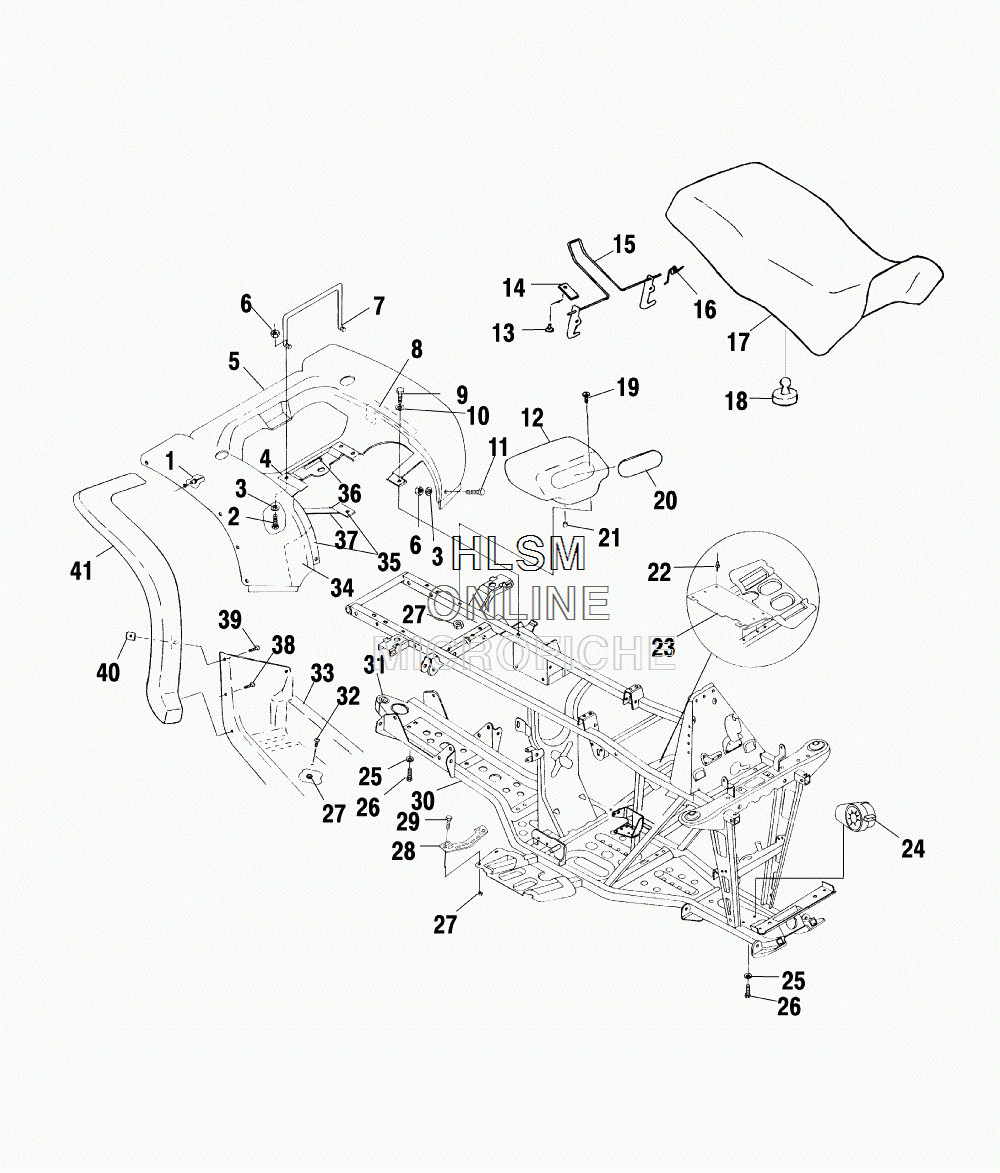

FENDER - REAR W/ SEAT для Polaris WORKER 500 (A02CH50EB) (PORCHE RED) - 2002 года выпуска
-
№АртикулНазвание
-
17661645 RIVET, T-LOCKRIVET, T-LOCK
-
27511930 BOLTBOLT
-
37555792 WASHERWASHER
-
45811107 FOIL, REAR CAB, REARFOIL, REAR CAB, REAR
-
55432117-136 CAB, REAR, (PORSCHE RED)CAB, REAR, (PORSCHE RED)
-
67541925 NUT, NYLOKNUT, NYLOK
-
75224592 RETAINER, SEAT LATCHRETAINER, SEAT LATCH
-
85811308 FOIL, TAPE, REAR CABFOIL, TAPE, REAR CAB
-
97512242 SCREWSCREW
-
107555859 WASHER, FLATWASHER, FLAT
-
117512085 SCREWSCREW
-
125431786 BOX, TOOLBOX, TOOL
-
137621403 RIVETRIVET
-
145211033 BRACKET, LEVER RETAINERBRACKET, LEVER RETAINER
-
151040387 LATCH, SEATLATCH, SEAT
-
167041370 SPRING, LATCHSPRING, LATCH
-
172682441-070 ASM., SEAT, (BLACK)ASM., SEAT, (BLACK)
-
172682958-070 COVERING, SEAT, (BLACK)COVERING, SEAT, (BLACK)
-
175811104 FOIL, SEAT BASE, LARGEFOIL, SEAT BASE, LARGE
-
175811105 FOIL, SEAT BASE, SMALLFOIL, SEAT BASE, SMALL
-
185412067 BUMPER, RUBBERBUMPER, RUBBER
-
197517375 SCREWSCREW
-
205431787 COVER, TOOL BOXCOVER, TOOL BOX
-
215410896 CAP, DRAINCAP, DRAIN
-
227661638 RIVETRIVET
-
235246103-067 GUARD, CLUTCHGUARD, CLUTCH
-
257552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
267512492 SCREWSCREW
-
277542122 NUT, NYLOKNUT, NYLOK
-
285432280 SPACER, FOOTWELLSPACER, FOOTWELL
-
297517377 SCREWSCREW
-
301013325-067 FRAME, MAIN (IF BUILT BEFORE 9/03/01)FRAME, MAIN (IF BUILT BEFORE 9/03/01)
-
311013729-067 FRAME, MAIN (IF BUILT AFTER 9/03/01)FRAME, MAIN (IF BUILT AFTER 9/03/01)
-
317078261 DECAL, HITCHDECAL, HITCH
-
327517376 SCREWSCREW
-
335432221-070 FOOTWELL, (BLACK), LEFT HANDFOOTWELL, (BLACK), LEFT HAND
-
345433219-070 FOOTWELL, (BLACK), RIGHT HANDFOOTWELL, (BLACK), RIGHT HAND
-
345811111 FOIL, FOAM, REAR FENDERFOIL, FOAM, REAR FENDER
-
355811106 FOIL, REAR CAB, FRONTFOIL, REAR CAB, FRONT
-
367079902 DECAL, CARB/FILTER INFORMATIONDECAL, CARB/FILTER INFORMATION
-
375811087 FOIL, FOAMFOIL, FOAM
-
387512232 SCREWSCREW
-
397517685 SCREWSCREW
-
407670057 NUT, U-TYPE SPEEDNUT, U-TYPE SPEED
-
415431796-070 GUARD, MUD, REAR, LEFT HANDGUARD, MUD, REAR, LEFT HAND
-
415431797-070 GUARD, MUD, REAR, RIGHT HANDGUARD, MUD, REAR, RIGHT HAND
