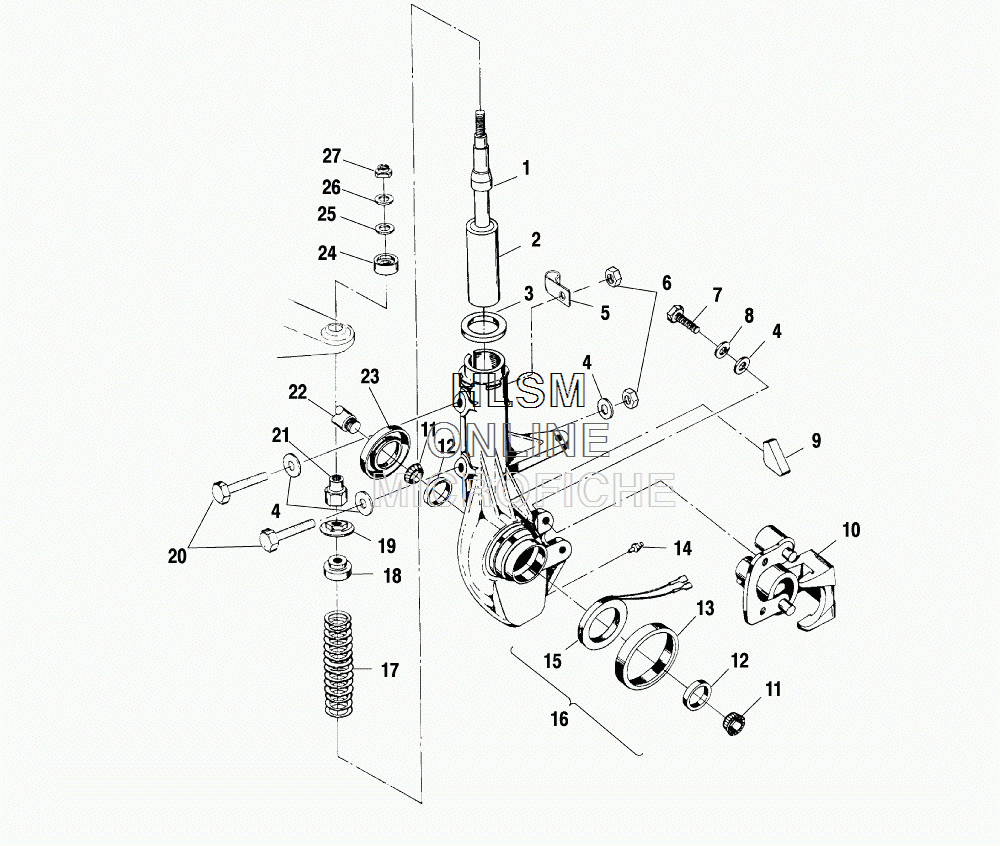

SUSPENSION - FRONT STRUT для Polaris WORKER 500 (A02CH50EB) (PORCHE RED) - 2002 года выпуска
-
№АртикулНазвание
-
15411608 BUMPERBUMPER
-
27041761 STRUT, FRONTSTRUT, FRONT
-
35211115 WASHERWASHER
-
47558402 WASHER, FLATWASHER, FLAT
-
57080367 CLAMPCLAMP
-
67542324 NUT, NYLOKNUT, NYLOK
-
77512365 SCREWSCREW
-
87552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
95810439 RETAINER, STRUT CASTING WIRERETAINER, STRUT CASTING WIRE
-
113554509 BEARING, TAPERED ROLLERBEARING, TAPERED ROLLER
-
123554507 BEARING, TAPERED ROLLER CUPBEARING, TAPERED ROLLER CUP
-
135222193 SLEEVE, HUBSTRUT SEALSLEEVE, HUBSTRUT SEAL
-
147080306 FITTING, LUBRICATIONFITTING, LUBRICATION
-
152410133 COIL, MAGNETICCOIL, MAGNETIC
-
161820950 ASM., HUBSTRUT, HEAVY, LEFT HAND (42MM) (INCL. 9,12-15,23)ASM., HUBSTRUT, HEAVY, LEFT HAND (42MM) (INCL. 9,12-15,23)
-
161820951 ASM., HUBSTRUT, HEAVY, RIGHT HAND (42MM) (INCL. 9,12-15,23)ASM., HUBSTRUT, HEAVY, RIGHT HAND (42MM) (INCL. 9,12-15,23)
-
177041375-067 SPRING, COILSPRING, COIL
-
185243364 RETAINER, SPRING, TOPRETAINER, SPRING, TOP
-
195432871 BALL, PIVOT, BOTTOMBALL, PIVOT, BOTTOM
-
207515339 BOLTBOLT
-
215132062 SPACER, THREADEDSPACER, THREADED
-
233610028 SEAL, HUBSTRUTSEAL, HUBSTRUT
-
245432872 BALL, PIVOT, TOPBALL, PIVOT, TOP
-
255810291 SPACER, RUBBERSPACER, RUBBER
-
267555749 WASHERWASHER
-
277547104 NUT, NYLOKNUT, NYLOK
