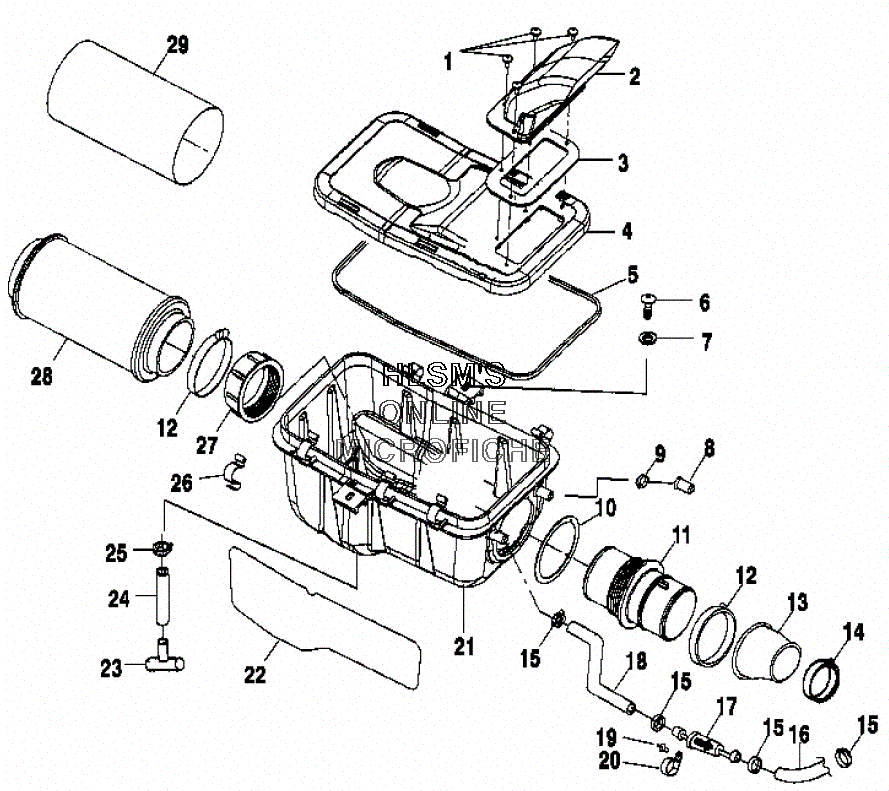

AIR BOX ASSY. для Polaris XPEDITION 425 (A02CK42AA) (DESERT DUNE) - 2002 года выпуска
-
№АртикулНазвание
-
17517541 SCREW, SEMS(10)SCREW, SEMS(10)
-
25432859 DUCT, INLET, AIRBOX COVERDUCT, INLET, AIRBOX COVER
-
35411422 GASKET, INTAKEGASKET, INTAKE
-
45432868 COVER, AIRBOXCOVER, AIRBOX
-
55811482 SEAL, AIRBOX COVERSEAL, AIRBOX COVER
-
67515179 SCREW(10)SCREW(10)
-
77558301 WASHER(10)WASHER(10)
-
85433396 CAP, END, AIRBOX IN, 406-12, 3/4 (BLACK)CAP, END, AIRBOX IN, 406-12, 3/4 (BLACK)
-
97080534 CLAMP,SPRING,(10)CLAMP,SPRING,(10)
-
105830128 GASKET,CARB.IN.DUCTGASKET,CARB.IN.DUCT
-
115432473 DUCT,CARB.INLETDUCT,CARB.INLET
-
127080413 CLAMP,BAND,NARROWCLAMP,BAND,NARROW
-
135411539 BOOT,CARB,(425 MAN)BOOT,CARB,(425 MAN)
-
147080511 CLAMP, NARROW BAND(10)CLAMP, NARROW BAND(10)
-
157080699 CLAMP,HOSE (10)CLAMP,HOSE (10)
-
165411723 HOSE,BREATHER,FORMED,.38 I.D.HOSE,BREATHER,FORMED,.38 I.D.
-
172530029 FILTER,BREATHER,IN LINEFILTER,BREATHER,IN LINE
-
185411724 HOSE,BREATHER,FORMED,.38 I.D.HOSE,BREATHER,FORMED,.38 I.D.
-
197621462 RIVET(50)RIVET(50)
-
207080653 CLAMP,HOSE,1'',NYLONCLAMP,HOSE,1'',NYLON
-
215433678 BOX,AIR INTAKE,4-STRKBOX,AIR INTAKE,4-STRK
-
225811650 FOIL,AIRBOXFOIL,AIRBOX
-
235432377 PLUG, TRAPPLUG, TRAP
-
248450059-150 FUEL LINE (OPT)FUEL LINE (OPT)
-
257080650 CLAMP,HOSE,(10)CLAMP,HOSE,(10)
-
265242044 CLIP,AIR BOXCLIP,AIR BOX
-
275432601 COLLAR,CARB INLETCOLLAR,CARB INLET
-
287080595 FILTER,AIR INTAKEFILTER,AIR INTAKE
-
295811633 FILTER,PRECLEAN.SLEEVEFILTER,PRECLEAN.SLEEVE
