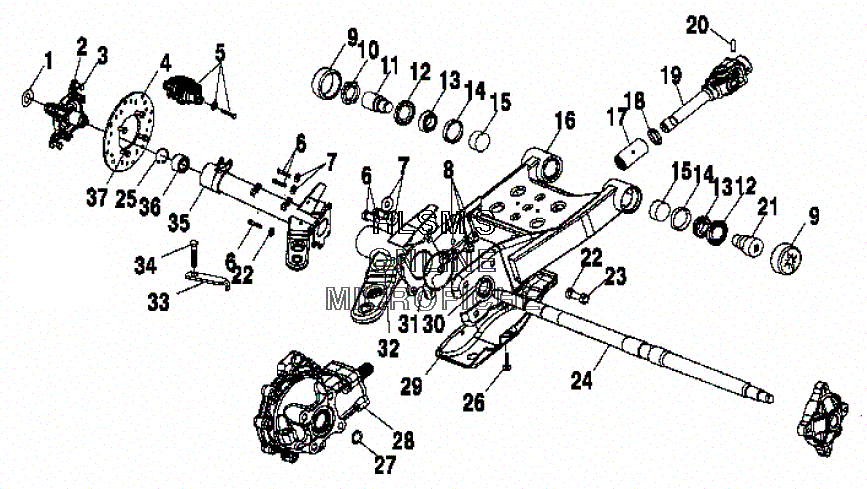

SUSPENSION - REAR SWING ARM W/ AXLE - DRIVESHAFT для Polaris XPEDITION 425 (A02CK42AA) (DESERT DUNE) - 2002 года выпуска
-
№АртикулНазвание
-
15412022 O-RING-0.739X0.879X0.070O-RING-0.739X0.879X0.070
-
25131935 HUB,WHEEL,4WD,MACHHUB,WHEEL,4WD,MACH
-
37515523 STUD(10)STUD(10)
-
45244882 DISC-BRAKE,REAR,8.125X.188DISC-BRAKE,REAR,8.125X.188
-
51910425 ASM-CALIPER,DH4P W/INS PADSASM-CALIPER,DH4P W/INS PADS
-
57515481 BOLT(10)BOLT(10)
-
57552603 WASHER(10)WASHER(10)
-
67517604 BOLT (10)BOLT (10)
-
77555721 WASHER(10)WASHER(10)
-
87547065 NUT-1/2-20,NYLOK,Y (10)NUT-1/2-20,NYLOK,Y (10)
-
95411532 CAP,SWINGARM PIVOTCAP,SWINGARM PIVOT
-
105131863 NUT,JAM,SWINGARMPIVOTNUT,JAM,SWINGARMPIVOT
-
115131864 PIVOT,SWINGARM,THREADEDPIVOT,SWINGARM,THREADED
-
123610072 SEAL,SWINGARM PIVOTSEAL,SWINGARM PIVOT
-
133554506 BRG,TAPER.ROLL.CONEBRG,TAPER.ROLL.CONE
-
143554507 BRG,TAPER,ROLL CUPBRG,TAPER,ROLL CUP
-
155411602 SEAL-SWINGARM PIVOTSEAL-SWINGARM PIVOT
-
161541577 SWINGARM,ASM. [INCL. 14,15]SWINGARM,ASM. [INCL. 14,15]
-
175132201 COUPLING-PROP SHAFT,GREASEDCOUPLING-PROP SHAFT,GREASED
-
177080433 ZERK,FITTING,THREADED(10)ZERK,FITTING,THREADED(10)
-
185411092 O-RING (10)O-RING (10)
-
191380137 PROPSHAFT ASM,REARPROPSHAFT ASM,REAR
-
207661913 PIN,SPRING(10)PIN,SPRING(10)
-
215132683 PIVOT-SWINGARM (RIGHT)PIVOT-SWINGARM (RIGHT)
-
227553201 LOCK WASHER(10)LOCK WASHER(10)
-
237517585 BOLT-1/2-13X1 1/4 HXHD GR5-Z (1BOLT-1/2-13X1 1/4 HXHD GR5-Z (1
-
245132699 AXLE-REARAXLE-REAR
-
257710507 RING,RET.,2.500 INTERNAL (10)RING,RET.,2.500 INTERNAL (10)
-
267517612 SCREW (10)SCREW (10)
-
275411531 O-RINGO-RING
-
291012881 SKID PLATE,REARSKID PLATE,REAR
-
295242851-067 PLATE-SKID,REAR HOUSING (BLACK)PLATE-SKID,REAR HOUSING (BLACK)
-
295811716 PAD-RUBBERPAD-RUBBER
-
305132698 COLLAR-AXLE LOCKCOLLAR-AXLE LOCK
-
315411707 O-RINGO-RING
-
327078261 DECAL-HITCH (1225)DECAL-HITCH (1225)
-
335245050 CLAMP-BRAKE LINE,REARCLAMP-BRAKE LINE,REAR
-
347512017 SCREW(10)SCREW(10)
-
351013264-067 AXLE,TUBE,LH,BLK,VLAXLE,TUBE,LH,BLK,VL
-
363514342 BEARING,HUBSTRUT,VISCOBEARING,HUBSTRUT,VISCO
-
377512325 BOLT(10)BOLT(10)
