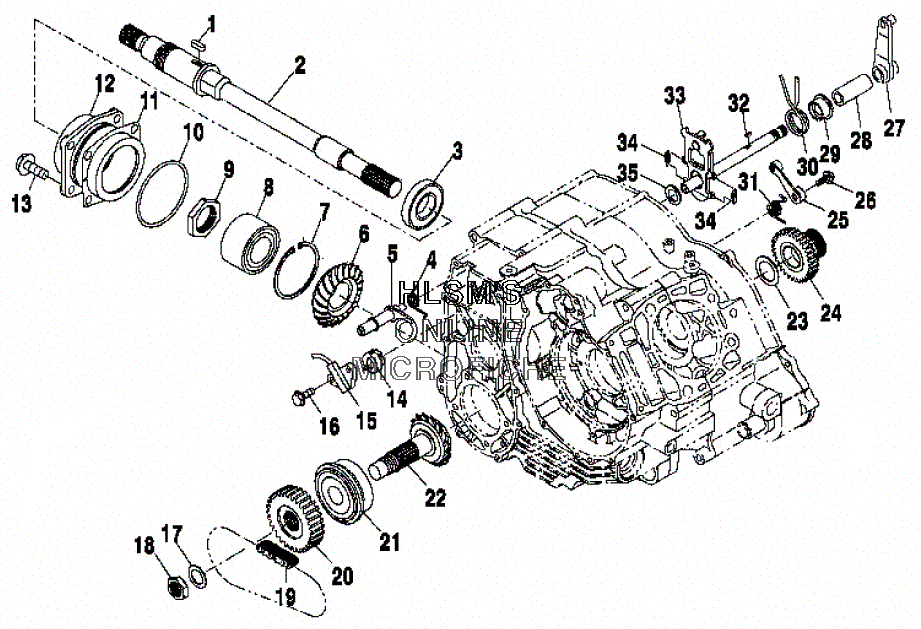

GEARCASE - CASE AND SNORKLE для Polaris XPEDITION 425 (A02CK42AB) (MOSSY OAK CAMO) - 2002 года выпуска
-
№АртикулНазвание
-
13086330 KEYKEY
-
23086324 SHAFT-OUTPUTSHAFT-OUTPUT
-
33086327 SEAL,OILSEAL,OIL
-
43086306 SPRING-REVERSE ARMSPRING-REVERSE ARM
-
53086919 REVERSE ARM,ASMREVERSE ARM,ASM
-
63086507 BEVEL AND GEAR SET [INCL. 2,3,6,7,9,12]BEVEL AND GEAR SET [INCL. 2,3,6,7,9,12]
-
73086328 RING,SNAPRING,SNAP
-
83086329 BEARING-BALLBEARING-BALL
-
93086326 NUT,LOCKNUT,LOCK
-
103086331 O-RINGO-RING
-
113086289 SHIM [.15]SHIM [.15]
-
113086290 SHIM [.2]SHIM [.2]
-
113086291 SHIM [.25]SHIM [.25]
-
113086292 SHIM [.3]SHIM [.3]
-
113086293 SHIM [.5]SHIM [.5]
-
113086294 SHIM [.175]SHIM [.175]
-
113086295 SHIM [.225]SHIM [.225]
-
113086296 SHIM [.275]SHIM [.275]
-
123086325 HOLDER-BEARINGHOLDER-BEARING
-
133086332 BOLT,FLANGEBOLT,FLANGE
-
143086917 REVERSE CAM,ASMREVERSE CAM,ASM
-
153086920 SWITCH,POSITIONSWITCH,POSITION
-
163084566 BOLT, FLANGE(10)BOLT, FLANGE(10)
-
173086314 WASHER-LOCKWASHER-LOCK
-
183086310 NUT,LOCKNUT,LOCK
-
193086304 CHAINCHAIN
-
203086303 SPROCKET-DRIVENSPROCKET-DRIVEN
-
213086321 BEARING-BALLBEARING-BALL
-
223086318 PINION AND SHAFT,ASM. [INCL. 1-3,6-10,12,21,22]PINION AND SHAFT,ASM. [INCL. 1-3,6-10,12,21,22]
-
233086380 WASHERWASHER
-
243086506 WASHERWASHER
-
253086302 ARM,STOPPERARM,STOPPER
-
263086311 BOLT,STOPPER ARMBOLT,STOPPER ARM
-
273086301 ARM,RELEASEARM,RELEASE
-
283086317 SPACERSPACER
-
293086316 SPACERSPACER
-
303086307 SPRING-RETURNSPRING-RETURN
-
313086308 SPRING-STOPPER ARMSPRING-STOPPER ARM
-
323086312 KEY,WOODRUFFKEY,WOODRUFF
-
333086298 SHIFT SHAFT,ASM *SHIFT SHAFT,ASM *
-
343086309 SPRING-SHIFTSPRING-SHIFT
-
353086315 SPACERSPACER
