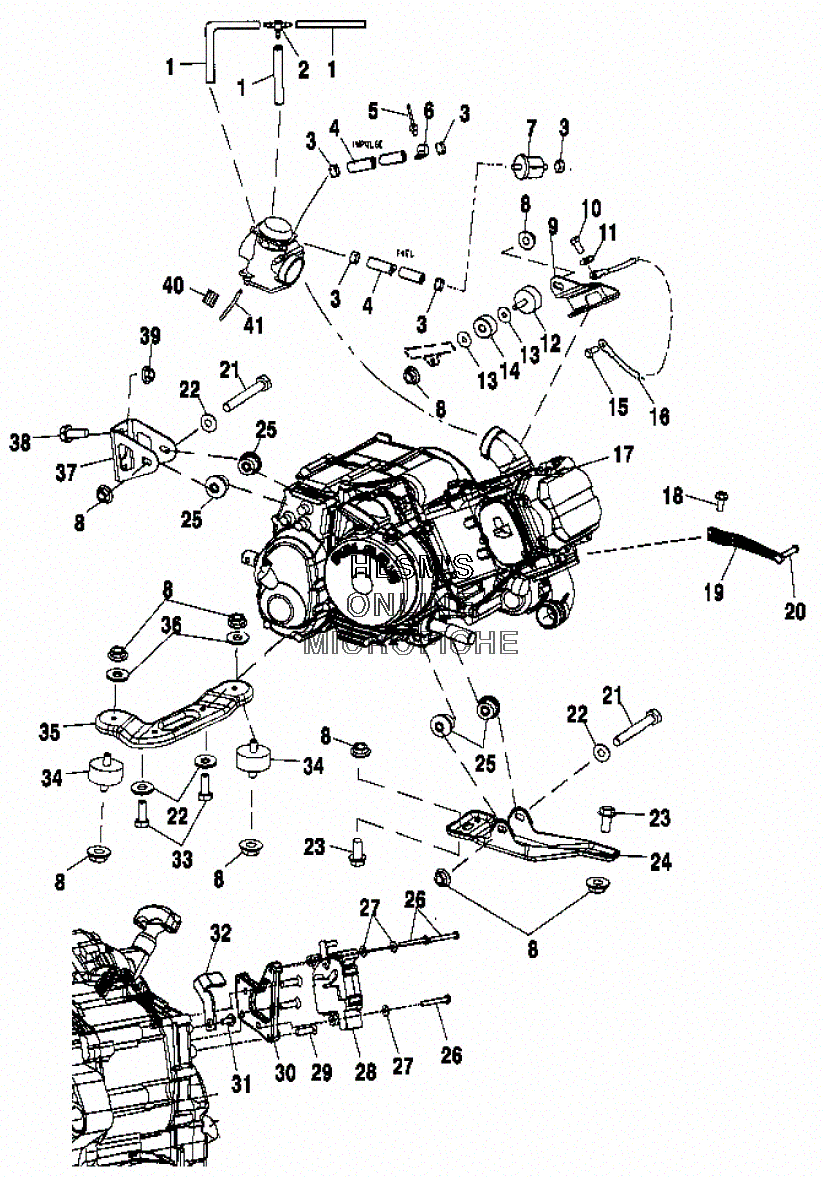

MOUNTING - ENGINE для Polaris XPEDITION 425 (A02CK42AB) (MOSSY OAK CAMO) - 2002 года выпуска
-
№АртикулНазвание
-
18450003-1525 FUEL LINE,1/4 ID(1525 CM.) (OPT)FUEL LINE,1/4 ID(1525 CM.) (OPT)
-
27052075 FITTING, TEE (10)FITTING, TEE (10)
-
37080003 CLAMP,HOSE(10)CLAMP,HOSE(10)
-
48450040-60 CLAMP,HOSE(10) (OPT)CLAMP,HOSE(10) (OPT)
-
57621432 RIVET,3/16X.402(50)RIVET,3/16X.402(50)
-
67080499 CLAMP, CABLE(10)CLAMP, CABLE(10)
-
72530009 FILTER,SMALL,IN-LINE,(10)FILTER,SMALL,IN-LINE,(10)
-
87547108 NUT (10)NUT (10)
-
95242964-067 MOUNT,ENG.TOP MAN,BLK.MOUNT,ENG.TOP MAN,BLK.
-
107512315 BOLT(10)BOLT(10)
-
117552901 LOCK WASHER(10)LOCK WASHER(10)
-
123021045 MOUNT-RUBBER,TOP,60 DUROMOUNT-RUBBER,TOP,60 DURO
-
137555823 WASHER(10)WASHER(10)
-
145132007 SPACER-MOTOR MNT TOPSPACER-MOTOR MNT TOP
-
157517386 SCREW,(10)SCREW,(10)
-
164010132 CABLE,GND-ENGINECABLE,GND-ENGINE
-
173085824 ENG.EH42PLE-03 (SEE NOTE)ENG.EH42PLE-03 (SEE NOTE)
-
187512225 SCREW(10)SCREW(10)
-
195630960-067 LEVER-SHIFT,5-SPEED,BLKLEVER-SHIFT,5-SPEED,BLK
-
205411364 PAD,SHIFT PEDALPAD,SHIFT PEDAL
-
217515406 SCREW CAP(10)SCREW CAP(10)
-
227552603 WASHER(10)WASHER(10)
-
237517388 SCREW,(10)SCREW,(10)
-
245242905-067 MOUNT-ENGINE LOWER,MANUAL,BLKMOUNT-ENGINE LOWER,MANUAL,BLK
-
255411575 ENGINE-MOUNT RUBBER MANENGINE-MOUNT RUBBER MAN
-
267510504 SCREW(10)SCREW(10)
-
277555746 BURR,RIVETBURR,RIVET
-
284010435 ACTUATOR-REVERSEACTUATOR-REVERSE
-
297517652 SCREWSCREW
-
305132519 MNT,LOCKOUT ACTUATOR,MACHMNT,LOCKOUT ACTUATOR,MACH
-
317517653 SCREW (10)SCREW (10)
-
325245124-067 LEVER-LOCKOUT,REVERSE,BLKLEVER-LOCKOUT,REVERSE,BLK
-
337512492 SCREW(10)SCREW(10)
-
343110044 MOUNT,RUBBER,TOPMOUNT,RUBBER,TOP
-
355242984-067 MOUNT,5 SPEED LWR,REAR,BLK.MOUNT,5 SPEED LWR,REAR,BLK.
-
367555806 WASHER(10)WASHER(10)
-
375242965-067 MNT-ENGINE TOP REAR MAN,BLKMNT-ENGINE TOP REAR MAN,BLK
-
387515398 SCREW(10)SCREW(10)
-
397542321 NUT LOCK(10)NUT LOCK(10)
-
407080816 CLIP-T,DUAL 3/16'' LINE (10)CLIP-T,DUAL 3/16'' LINE (10)
-
418360009-100 HOSE (OPT)HOSE (OPT)
