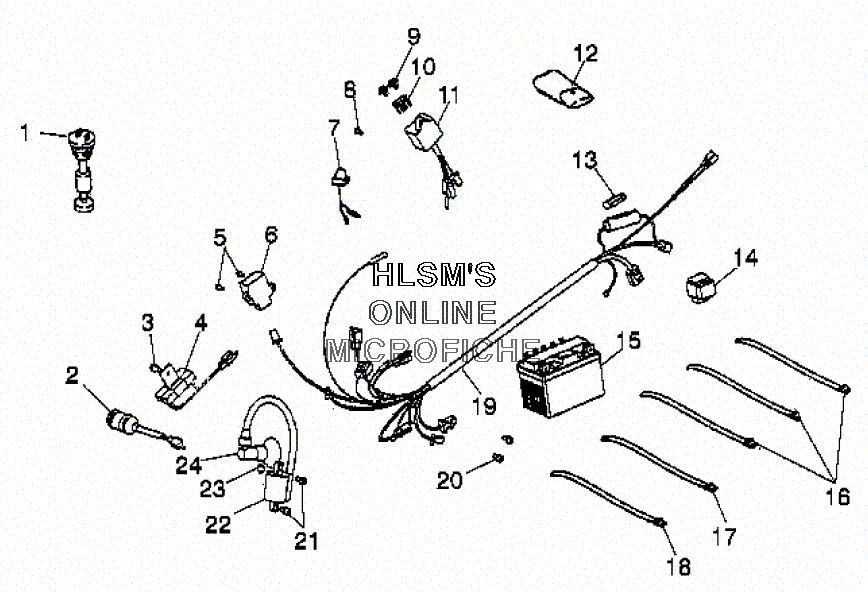

ELECTRICAL COMPONENTS для Polaris SCRAMBLER 50 (A03EA05CA) - 2003 года выпуска
-
№АртикулНазвание
-
10450558 GAUGE, OIL LEVEL ASSY.GAUGE, OIL LEVEL ASSY.
-
20450549 SWITCH, MAIN ASSY.SWITCH, MAIN ASSY.
-
30450701 BOLT, HEXAGON WASHERBOLT, HEXAGON WASHER
-
40450554 RESISTOR ASSY.RESISTOR ASSY.
-
50450057 BOLT, PAN PHILLIPSBOLT, PAN PHILLIPS
-
60450553 RECTIFIER, REGULATORRECTIFIER, REGULATOR
-
70450557 LAMP, WARNING OILLAMP, WARNING OIL
-
80450309 BOLT, HEXAGONBOLT, HEXAGON
-
90451020 SCREW, PHILLIPSSCREW, PHILLIPS
-
100451019 JUMPERJUMPER
-
110451021 CDI BOX ASSY.CDI BOX ASSY.
-
120450563 BAG, TOOLBAG, TOOL
-
130450842 FUSE (7.5 AMP)FUSE (7.5 AMP)
-
140450555 RELAY, STARTER ASSY.RELAY, STARTER ASSY.
-
150451043 BATTERYBATTERY
-
160450559 STRAPSTRAP
-
170450721 STRAPSTRAP
-
180450742 STRAPSTRAP
-
190451061 MAIN WIRE, ASSYMAIN WIRE, ASSY
-
200450888 BOLT/NUT, BATTERYBOLT/NUT, BATTERY
-
210450556 BOLT, HEXAGONBOLT, HEXAGON
-
220450753 IGNITION, COIL ASSY. (INCL. 24)IGNITION, COIL ASSY. (INCL. 24)
-
230450890 WASHER, STARWASHER, STAR
-
240450889 CAP, SPARK PLUGCAP, SPARK PLUG
