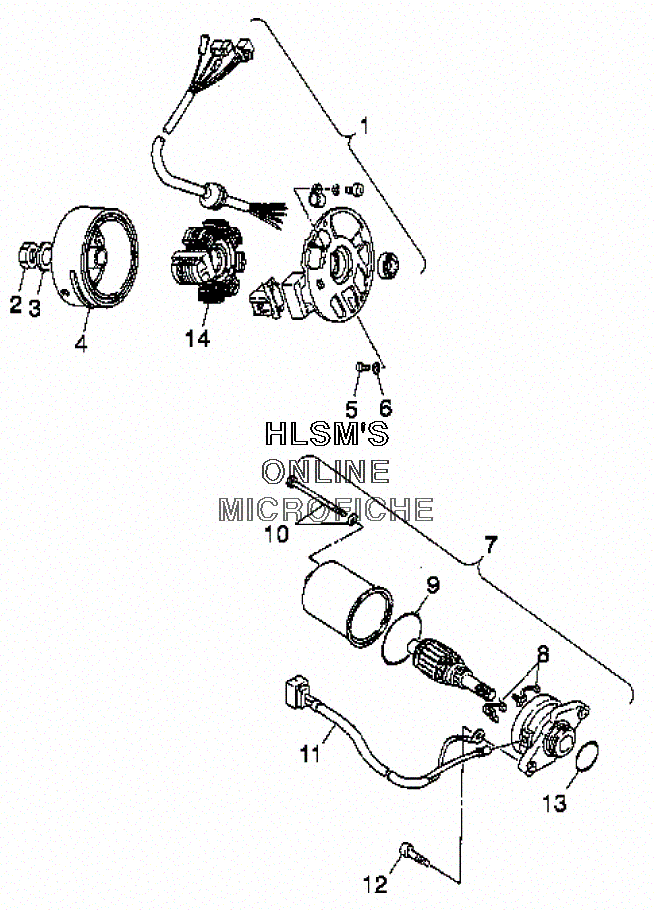

GENERATOR / STARTING MOTOR для Polaris SCRAMBLER 50 (A03EA05CA) - 2003 года выпуска
-
№АртикулНазвание
-
10450999 GENERATOR ASSY. (INCL. 1, 40)GENERATOR ASSY. (INCL. 1, 40)
-
20450249 NUT, FLANGENUT, FLANGE
-
30450279 WASHERWASHER
-
40450524 FLYWHEELFLYWHEEL
-
50450033 BOLT, SOCKET HEXAGONBOLT, SOCKET HEXAGON
-
60450034 WASHER, PLAINWASHER, PLAIN
-
70450532 STARTING, MOTOR ASSY. (INCL. 8, 9, 10, 11, 13)STARTING, MOTOR ASSY. (INCL. 8, 9, 10, 11, 13)
-
80450534 BRUSH SETBRUSH SET
-
90450536 RING, OILRING, OIL
-
100450540 BOLT SETBOLT SET
-
110450840 RELAYRELAY
-
120450039 BOLT, SOCKETBOLT, SOCKET
-
130450538 RING, OILRING, OIL
-
140450998 STATORSTATOR
