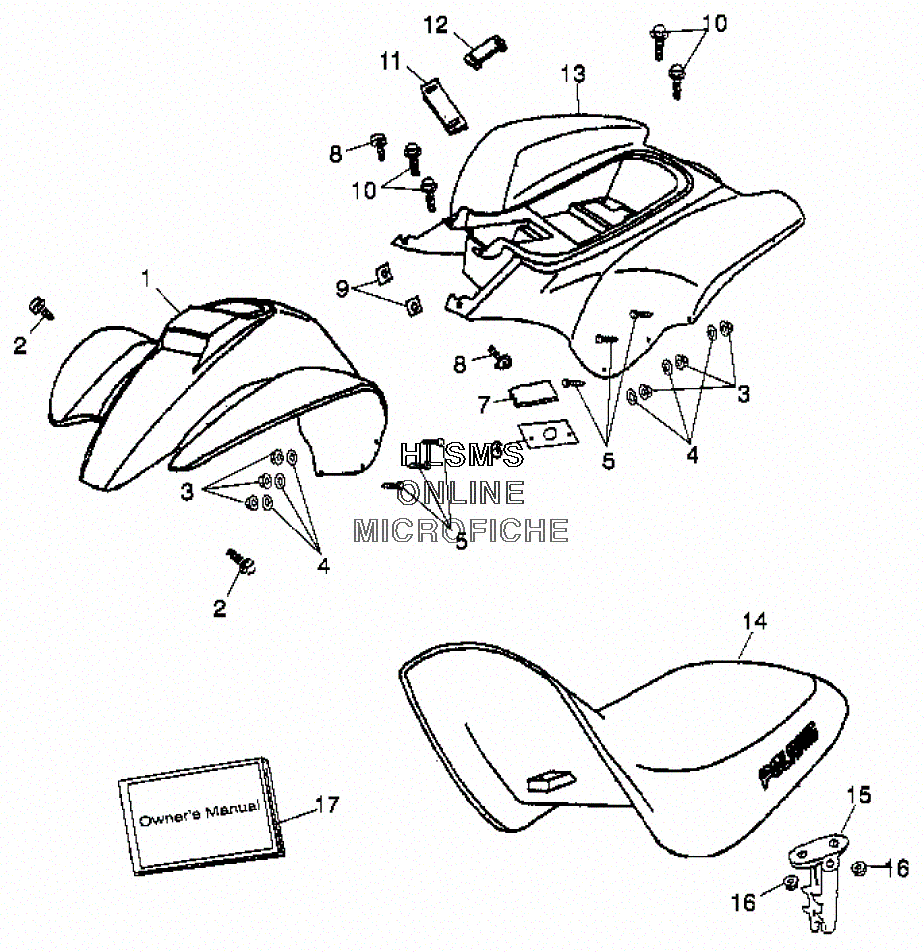

FENDER - REAR W/ SEAT для Polaris SCRAMBLER 90 (A03EA09CA) - 2003 года выпуска
-
№АртикулНазвание
-
10451005 CAB (FRONT/YELLOW)CAB (FRONT/YELLOW)
-
20450824 BOLT, W/WASHER HEXAGONBOLT, W/WASHER HEXAGON
-
30450741 NUT, LOCKNUT, LOCK
-
40450710 WASHER, PLAINWASHER, PLAIN
-
50450667 BOLT, PHILLIPSBOLT, PHILLIPS
-
60450345 PAD, FOIL PROTECTORPAD, FOIL PROTECTOR
-
70450346 FOAM, BATTERY PADFOAM, BATTERY PAD
-
80450297 BOLT, PANBOLT, PAN
-
90450342 NUT, U-PLATENUT, U-PLATE
-
100450340 BOLT, HEXAGONBOLT, HEXAGON
-
110450897 STRAP BATTERYSTRAP BATTERY
-
120450898 STRAP, TOOL BOXSTRAP, TOOL BOX
-
130451006 CAB (REAR/YELLOW)CAB (REAR/YELLOW)
-
140451007 SEAT ASSY. (RED/BLACK)SEAT ASSY. (RED/BLACK)
-
150450356 HOOK, SEATHOOK, SEAT
-
160450880 NUT, FLANG W/SERRNUT, FLANG W/SERR
-
179917873 OWNERS, MANUALOWNERS, MANUAL
