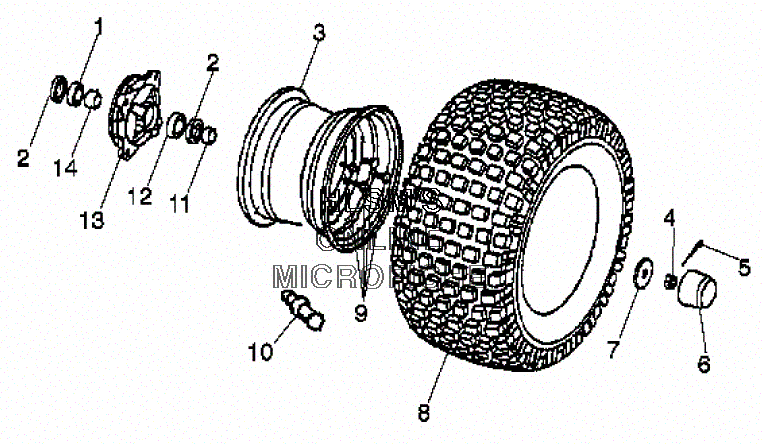

WHEEL - FRONT для Polaris SCRAMBLER 90 (A03EA09CA) - 2003 года выпуска
-
№АртикулНазвание
-
10450393 BEARINGBEARING
-
20450389 SEAL, OILSEAL, OIL
-
30451067 WHEEL 7 INCH (WHITE)WHEEL 7 INCH (WHITE)
-
40450394 NUT, LOCKNUT, LOCK
-
50450395 PIN, COTTERPIN, COTTER
-
60450829 CAP, RUBBERCAP, RUBBER
-
70450397 WASHERWASHER
-
80450908 TIRE (18X7)TIRE (18X7)
-
90450398 BOLT, CARRIAGEBOLT, CARRIAGE
-
100450401 VALVE, RIMVALVE, RIM
-
110450391 SPACER (OUTER)SPACER (OUTER)
-
120450392 BEARINGBEARING
-
130450388 DRUM, BRAKE (FRONT)DRUM, BRAKE (FRONT)
-
140450390 SPACER (INNER)SPACER (INNER)
