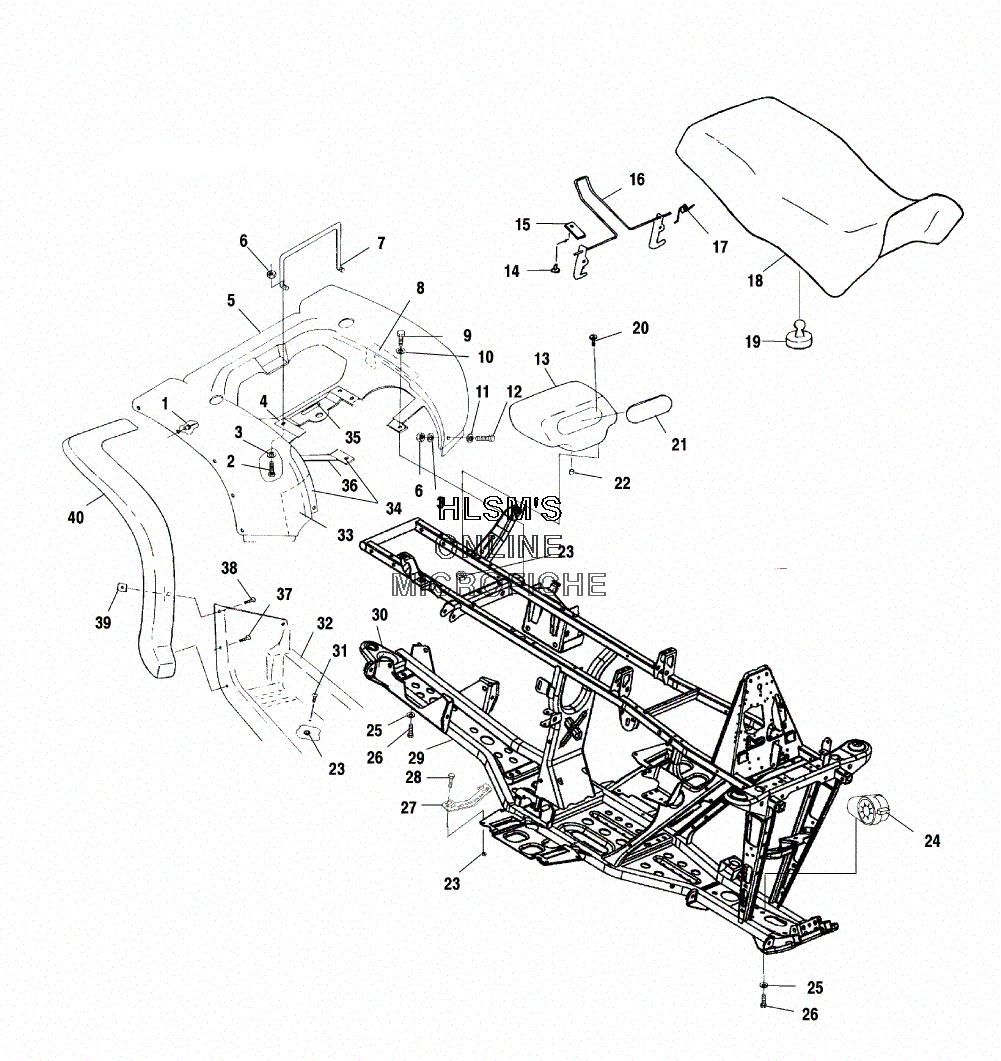

FENDER - REAR W/ SEAT для Polaris SPORTSMAN 500 HO 4X4 (A03CH50AC) (NBU NO SHADOW) - 2003 года выпуска
-
№АртикулНазвание
-
17661645 RIVETRIVET
-
27511930 SCREWSCREW
-
37555792 WASHERWASHER
-
45811107 FOIL, CAB (REAR)FOIL, CAB (REAR)
-
55434852-419A CAB, GEN4 (REAR/ NBU NO SHADOW)CAB, GEN4 (REAR/ NBU NO SHADOW)
-
67541925 NUT, NYLOKNUT, NYLOK
-
75224592 RETAINER, SEAT LATCHRETAINER, SEAT LATCH
-
85811308 FOIL, TAPE (3 X 12)FOIL, TAPE (3 X 12)
-
97512242 SCREWSCREW
-
107555859 WASHER, FLATWASHER, FLAT
-
117556034 WASHERWASHER
-
127512085 SCREWSCREW
-
135431786 TOOLBOXTOOLBOX
-
147621403 BLIND RIVETBLIND RIVET
-
155211033 BRACKET, LEVER RETAINERBRACKET, LEVER RETAINER
-
161040387 LATCH, SEATLATCH, SEAT
