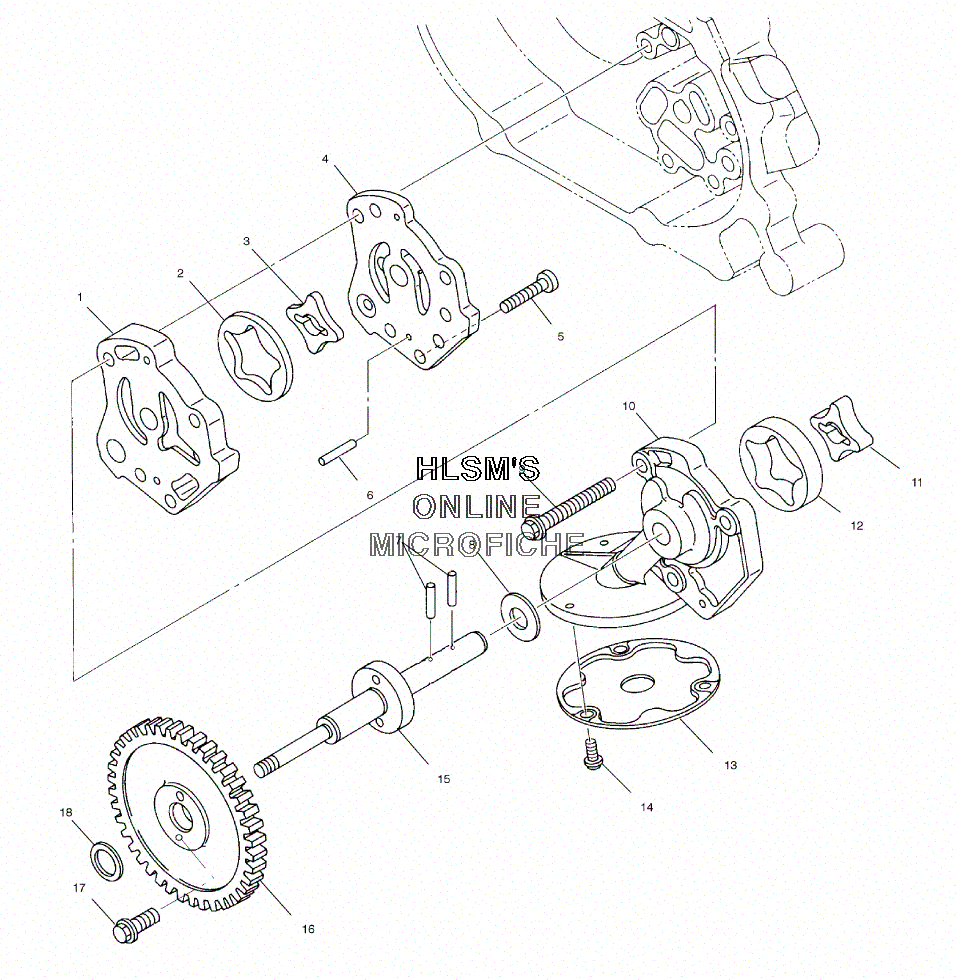

OIL PUMP для Polaris SPORTSMAN 500 HO 4X4 (A03CH50AC) (NBU NO SHADOW) - 2003 года выпуска
-
№АртикулНазвание
-
13084946 CASE #2, OILPUMPCASE #2, OILPUMP
-
23084949 ROTOR, FEED (OUTER)ROTOR, FEED (OUTER)
-
33084948 ROTOR, INNER FEED (FEED)ROTOR, INNER FEED (FEED)
-
43085817 OIL PUMP, ASSY. (INCL. 1-8, 10-15)OIL PUMP, ASSY. (INCL. 1-8, 10-15)
-
43084945 CASE #1, OILPUMPCASE #1, OILPUMP
-
53085535 SCREWSCREW
-
63084955 PIN, DOWELPIN, DOWEL
-
73084954 PIN, DOWELPIN, DOWEL
-
83084953 WASHERWASHER
-
93084962 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
103084947 CASE #3, OILPUMPCASE #3, OILPUMP
-
113084950 ROTOR, SCAV. (INNER)ROTOR, SCAV. (INNER)
-
123084951 ROTOR (OUTER)ROTOR (OUTER)
-
133084956 STRAINER UNIT, OILSTRAINER UNIT, OIL
-
143084205 SCREW AND WASHERSCREW AND WASHER
-
153085818 SHAFT, PUMPSHAFT, PUMP
-
163087173 PUMP, GEAR 2PUMP, GEAR 2
-
173085820 BOLT, FLANGEBOLT, FLANGE
-
183084959 SPACER (0.8) (OPT.)SPACER (0.8) (OPT.)
-
183084960 SPACER (1.0) (OPT.)SPACER (1.0) (OPT.)
-
183084961 SPACER (1.2) (OPT.)SPACER (1.2) (OPT.)
