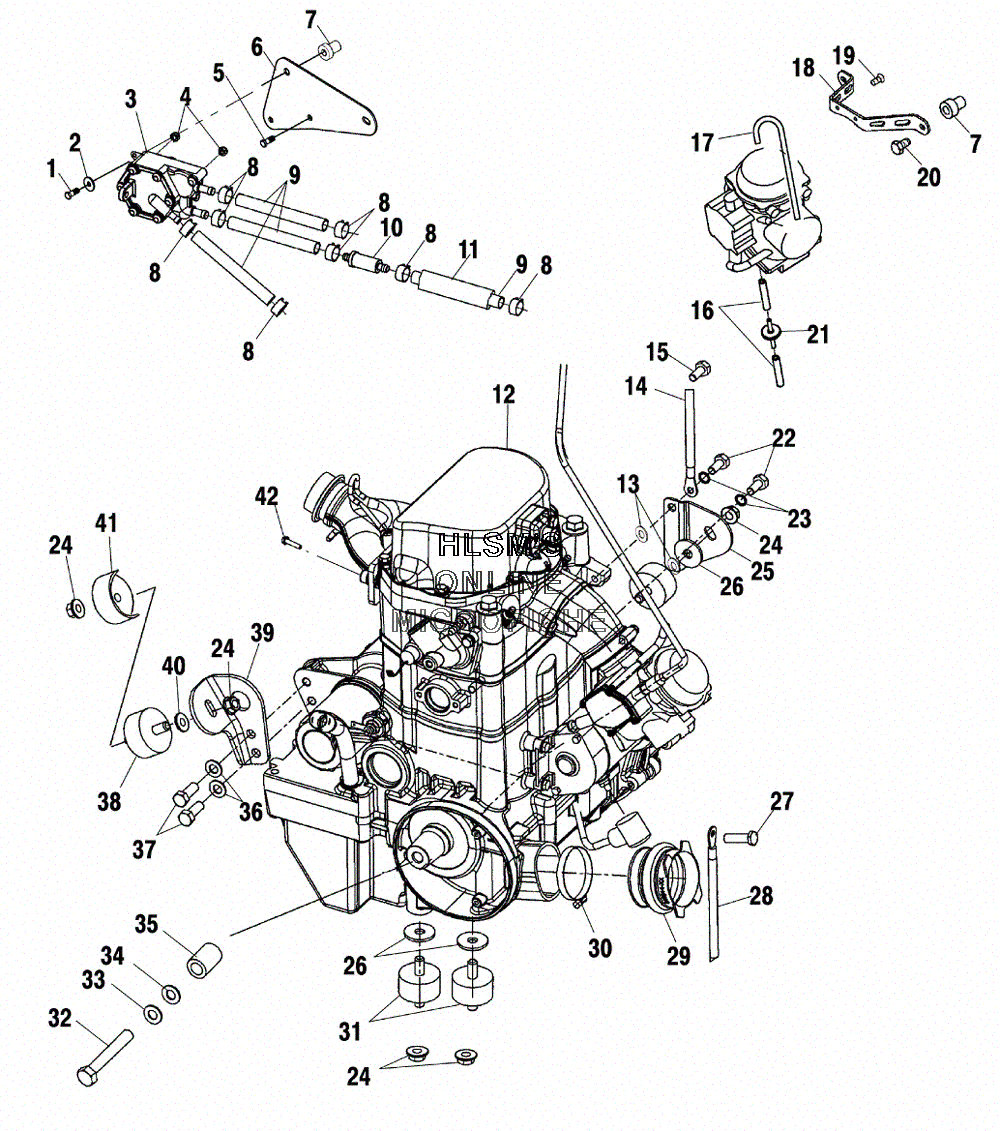

MOUNTING - ENGINE для Polaris SPORTSMAN 700 4X4 (A03CH68AL) (NBU NO SHADOW) - 2003 года выпуска
-
№АртикулНазвание
-
17517867 SCREW, L/W SEMSCREW, L/W SEM
-
27558301 WASHER, FLATWASHER, FLAT
-
32520227 PUMP FUEL, ASSY.PUMP FUEL, ASSY.
-
47546601 NUT, NYLOKNUT, NYLOK
-
57512329 BOLTBOLT
-
65243829 STRAP, FUEL PUMP MOUNTING (BLACK)STRAP, FUEL PUMP MOUNTING (BLACK)
-
77541923 NUT, WELLNUT, WELL
-
87080003 CLAMP, HOSECLAMP, HOSE
-
98450040-600 FUEL LINE (1/4 ID) (600 CM.) (OPT.)FUEL LINE (1/4 ID) (600 CM.) (OPT.)
-
102530009 FILTER, SMALL (IN-LINE)FILTER, SMALL (IN-LINE)
-
118450080-50 SHEATH, FOILSHEATH, FOIL
-
122202082 SHORT BLOCK ASSY.SHORT BLOCK ASSY.
-
137555770 WASHER, FLATWASHER, FLAT
-
144010132 CABLE, GROUND ENGINECABLE, GROUND ENGINE
-
157517386 SCREWSCREW
-
168360009-600 FUEL LINE (1/8 ID) (600 CM.) (OPT.)FUEL LINE (1/8 ID) (600 CM.) (OPT.)
-
175412287 HOSE, FORMED VENTHOSE, FORMED VENT
-
185246647 STRAP, CARBERATOR MOUNTSTRAP, CARBERATOR MOUNT
-
197517867 SCREW, L/W SEMSCREW, L/W SEM
-
207512247 BOLTBOLT
-
217051011 VENT, CHECKVALVEVENT, CHECKVALVE
-
227516714 SCREW, H.H. CAPSCREW, H.H. CAP
-
237552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
247547108 NUTNUT
-
255244622-067 BRACKET, MOUNT ENGINE (TOP/BLACK)BRACKET, MOUNT ENGINE (TOP/BLACK)
-
267555823 WASHERWASHER
-
277517868 BOLT, HEX HEAD SEMS L/WZYBOLT, HEX HEAD SEMS L/WZY
-
284010470 CABLE (BLACK) (25'')CABLE (BLACK) (25'')
-
295411944 BOOT, CLUTCH INTAKE (2.25I.D.)BOOT, CLUTCH INTAKE (2.25I.D.)
-
307080451 CLAMP, HOSECLAMP, HOSE
-
313021119 MOUNT, RUBBER 60 DURO (REAR)MOUNT, RUBBER 60 DURO (REAR)
-
327518197 BOLT, CLUTCH ATVBOLT, CLUTCH ATV
-
337575202 WASHER LOCKWASHER LOCK
-
345210748 WASHERWASHER
-
355430261 BUSHING, RETAINING BOLTBUSHING, RETAINING BOLT
-
367552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
377512492 SCREWSCREW
-
383110044 MOUNT, RUBBER (TOP)MOUNT, RUBBER (TOP)
-
395244771-067 MOUNT, ENGINE (LOWER/FRONT/BLACK)MOUNT, ENGINE (LOWER/FRONT/BLACK)
-
407555823 WASHER (OPT.)WASHER (OPT.)
-
415245043-067 BRACKET, TORQUE STOPBRACKET, TORQUE STOP
-
427516734 SCREWSCREW
