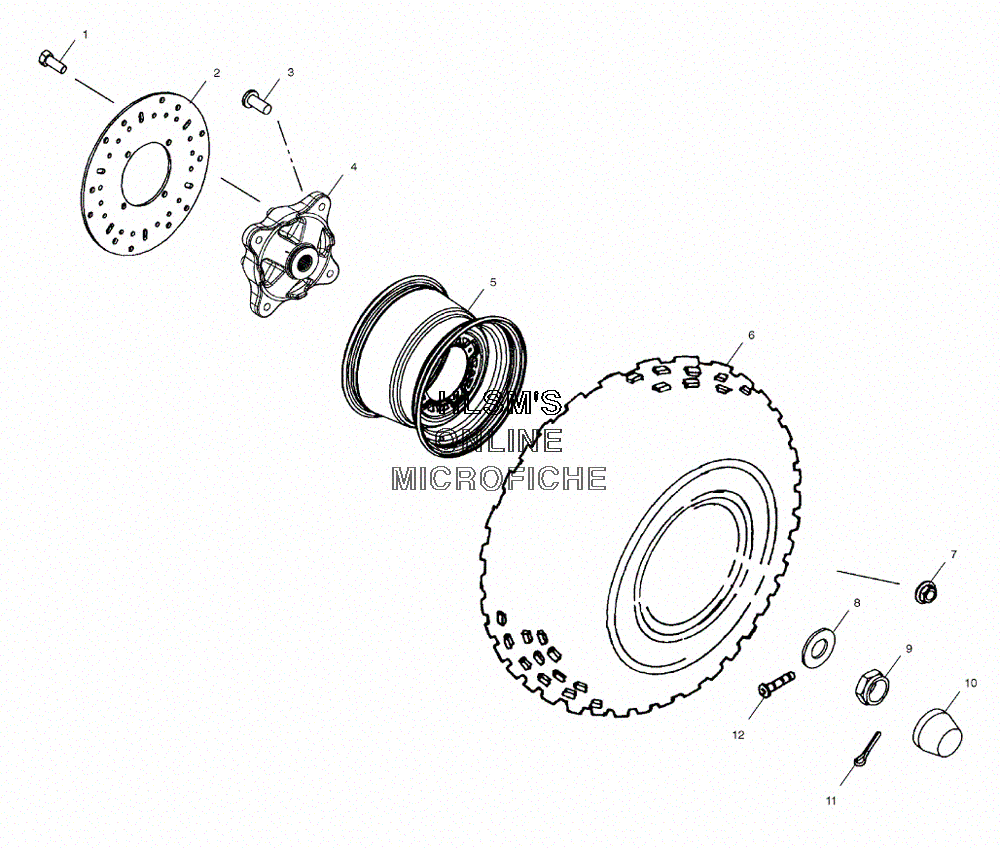

WHEEL - FRONT для Polaris SPORTSMAN 700 4X4 (A03CH68AL) (NBU NO SHADOW) - 2003 года выпуска
-
№АртикулНазвание
-
17512325 BOLTBOLT
-
25244314 DISC, BRAKE (FRONT)DISC, BRAKE (FRONT)
-
37515513 STUDSTUD
-
45133360 HUB, WHEEL AWD (MACH)HUB, WHEEL AWD (MACH)
-
51520519 RIM, FRONT 12 X 6 (10 GA CHROME) (IF BUILT BEFORE 6/17/02)RIM, FRONT 12 X 6 (10 GA CHROME) (IF BUILT BEFORE 6/17/02)
-
51520587 RIM, FRONT 12 X 6 (10 GA CHROME) (IF BUILT BEFORE 6/17/02)RIM, FRONT 12 X 6 (10 GA CHROME) (IF BUILT BEFORE 6/17/02)
-
51520563-067 RIM, FRONT 12 X 6 (11GA BLACK)RIM, FRONT 12 X 6 (11GA BLACK)
-
65411952 RAWHIDE, GRIP AT (25 X 8-12)RAWHIDE, GRIP AT (25 X 8-12)
-
77547237 NUT, FLANGE TWO PIECE (3/8-24)NUT, FLANGE TWO PIECE (3/8-24)
-
87556004 WASHERWASHER
-
97542810 NUT, SLOTTEDNUT, SLOTTED
-
105411164 DUST COVER, HUBDUST COVER, HUB
-
117661401 COTTER PINCOTTER PIN
-
121525017 VALVE, RIMVALVE, RIM
