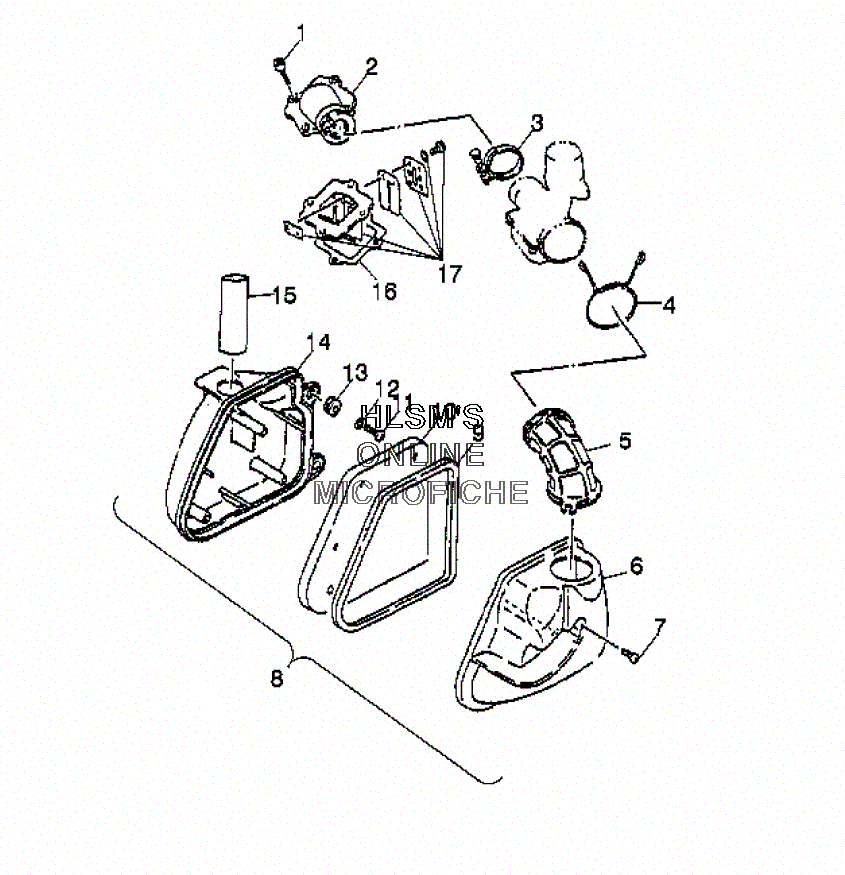

AIR BOX ASSY. для Polaris SPORTSMAN 90 (A03FA09CA) (YELLOW) - 2003 года выпуска
-
№АртикулНазвание
-
10450066 BOLT, HEXAGON WASHERBOLT, HEXAGON WASHER
-
20450065 MANIFOLD, INTAKEMANIFOLD, INTAKE
-
30450067 CLAMP, HOSE INTAKE MANIFOLDCLAMP, HOSE INTAKE MANIFOLD
-
40450068 CLIPCLIP
-
50451077 INLET, AIR BOXINLET, AIR BOX
-
60450071 CAP, CASE AIR CLEANERCAP, CASE AIR CLEANER
-
70450076 SCREW, TAPPINGSCREW, TAPPING
-
80451080 CLEANER, AIR (INCL. 5, 6, 7, 9, 10, 13, 14, 15)CLEANER, AIR (INCL. 5, 6, 7, 9, 10, 13, 14, 15)
-
90451081 SEALSEAL
-
100450073 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
110450039 BOLT, SOCKETBOLT, SOCKET
-
120450034 WASHER, PLAINWASHER, PLAIN
-
130450079 GROMMETGROMMET
-
140450070 CASE, AIR CLEANERCASE, AIR CLEANER
-
150450072 INLET, TUBE AIR CLEANERINLET, TUBE AIR CLEANER
-
160450064 GASKET, REEDGASKET, REED
-
170450063 REED VALVE, ASSY.REED VALVE, ASSY.
