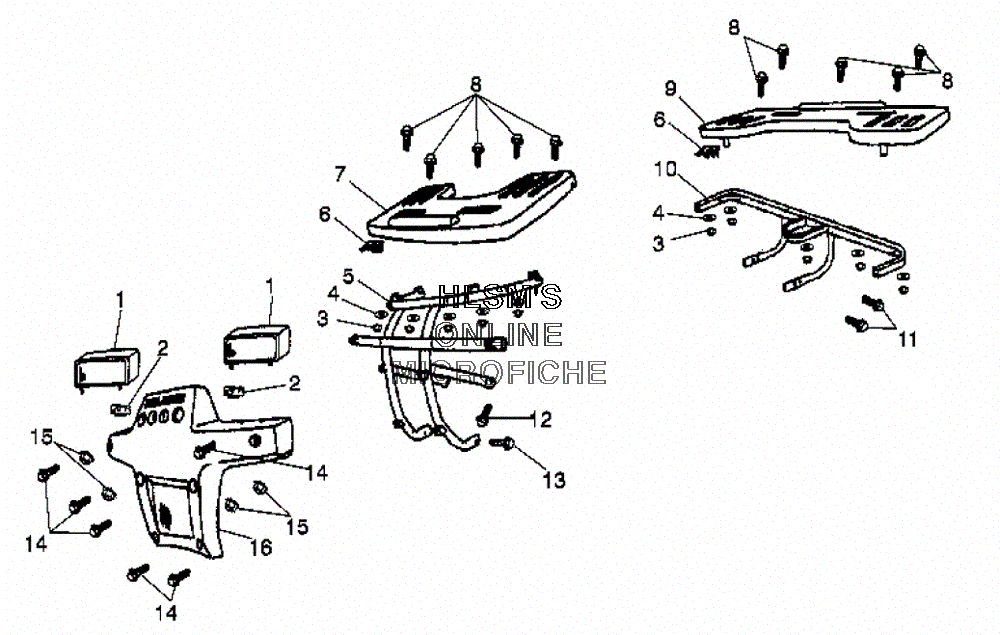

RACK AND BUMPER MOUNTING - FRONT для Polaris SPORTSMAN 90 (A03FA09CA) (YELLOW) - 2003 года выпуска
-
№АртикулНазвание
-
10450862 LIGHT, LOWBEAM ASSY.LIGHT, LOWBEAM ASSY.
-
20450800 RUBBERRUBBER
-
30450808 NUT, LOCKNUT, LOCK
-
40450879 WASHER, PLAINWASHER, PLAIN
-
50450602 SUPPORT, BUMPERSUPPORT, BUMPER
-
60450863 RUBBER, ANTIVIBRATIONRUBBER, ANTIVIBRATION
-
70450603 RACK (FRONT)RACK (FRONT)
-
80450310 BOLT, HEX WASHERBOLT, HEX WASHER
-
90450605 RACK (REAR)RACK (REAR)
-
100450945 SUPPORT, RACK (REAR)SUPPORT, RACK (REAR)
-
110450298 BOLT, HEXBOLT, HEX
-
120450701 BOLT, HEX WASHERBOLT, HEX WASHER
-
130450325 BOLT, HEXBOLT, HEX
-
140450701 BOLT, HEX WASHERBOLT, HEX WASHER
-
150450150 NUT, FLANGE HEXNUT, FLANGE HEX
-
160450601 BUMPERBUMPER
