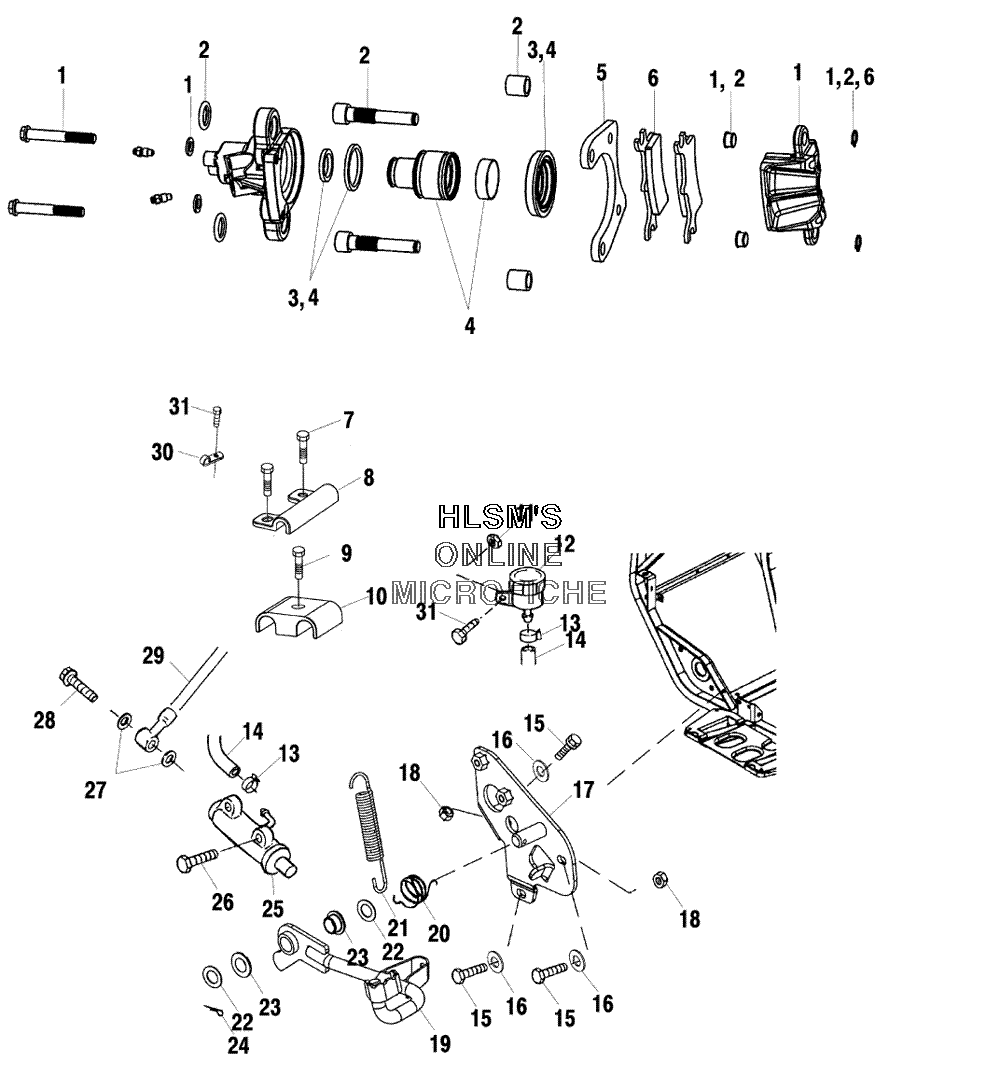

BRAKE - REAR для Polaris MAGNUM 330 2X4 (A04CB32FC) (CANADA) - 2004 года выпуска
-
№АртикулНазвание
-
12201873 ANVIL BODY KITANVIL BODY KIT
-
22201870 SLIDE BOLT KIT, DH4PSLIDE BOLT KIT, DH4P
-
32201872 SEAL, KIT, DH4PSEAL, KIT, DH4P
-
42201869 PISTON/SEAL KIT, DH4PPISTON/SEAL KIT, DH4P
-
52201732 PLATEPLATE
-
62202414 BRAKE PAD KIT ASSY, DH4PBRAKE PAD KIT ASSY, DH4P
-
77512084 SCREWSCREW
-
85434041 CLAMP BRAKE LINECLAMP BRAKE LINE
-
97512018 SCREWSCREW
-
107670126 CLIP RETAINING, DUAL .250" LINECLIP RETAINING, DUAL .250" LINE
-
117542153 NUT, NYLOK FLANGEDNUT, NYLOK FLANGED
-
121930854 RESERVOIR REAR BRAKE ASSYRESERVOIR REAR BRAKE ASSY
-
137080003 CLAMP, HOSECLAMP, HOSE
-
141910675 HOSE RESERVOIR, HBHOSE RESERVOIR, HB
-
157512240 BOLTBOLT
-
167558301 WASHER, FLATWASHER, FLAT
-
171012753-067 MOUNT, PIVOT REAR BRAKE (BLACK)MOUNT, PIVOT REAR BRAKE (BLACK)
-
187542122 NUT NYLOKNUT NYLOK
-
191014009-067 BRAKE ROD, HB, PIVOT (BLACK)BRAKE ROD, HB, PIVOT (BLACK)
-
207041750 SPRING, TORSIONSPRING, TORSION
-
217042075 SPRINGSPRING
-
227555919 WASHERWASHER
-
235433189 BUSHING PEDAL PIVOTBUSHING PEDAL PIVOT
-
247661401 PIN, COTTERPIN, COTTER
-
251910311 BRAKE MASTER CYLINDER FOOT BANJO, ASSYBRAKE MASTER CYLINDER FOOT BANJO, ASSY
-
267515158 SCREWSCREW
-
275410988 SEALSEAL
-
281910499 BOLT BANJOBOLT BANJO
-
291910516 LINE BRAKE (FRONT)LINE BRAKE (FRONT)
-
307080880 CLAMP HOSE, .625 DIA VNL COATEDCLAMP HOSE, .625 DIA VNL COATED
-
317517386 SCREWSCREW
-
311910680 CALIPER, DH4P W/INS PADS ASSY (INCL. 1-6)CALIPER, DH4P W/INS PADS ASSY (INCL. 1-6)
