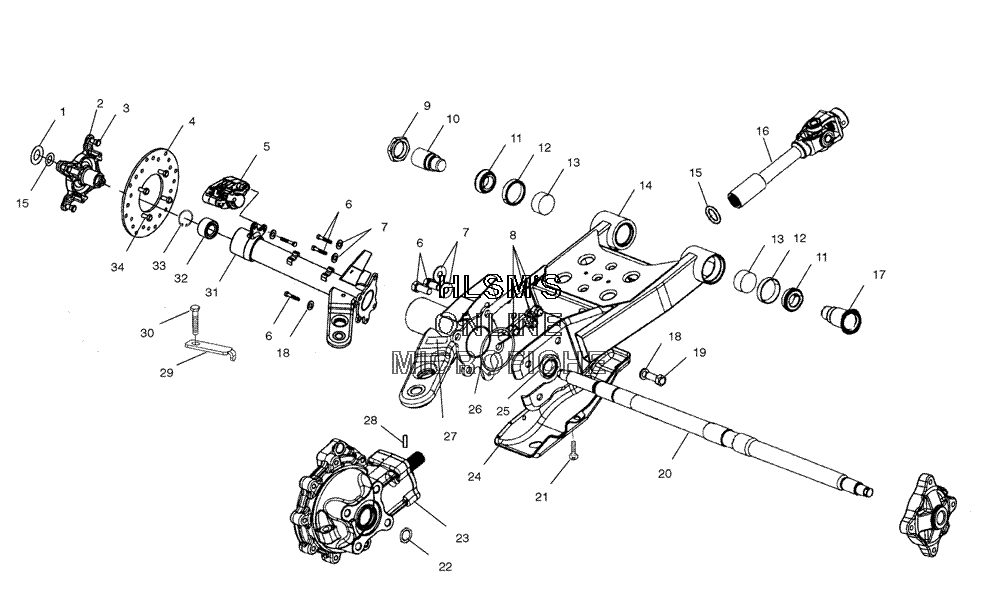

MOUNTING - REAR GEARCASE для Polaris MAGNUM 330 2X4 (A04CB32FC) (CANADA) - 2004 года выпуска
-
№АртикулНазвание
-
15412202 O-RINGO-RING
-
25133360 HUB WHEEL, AWD MACHHUB WHEEL, AWD MACH
-
37515513 STUDSTUD
-
45244882 DISC BRAKE (REAR)DISC BRAKE (REAR)
-
67517604 BOLTBOLT
-
77555721 WASHERWASHER
-
87547065 NUT NYLOK (1/2 20)NUT NYLOK (1/2 20)
-
95133387 NUT JAMNUT JAM
-
105133388 PIVOT THREADED (LEFT)PIVOT THREADED (LEFT)
-
113514399 BEARING TAPERED ROLLER CONEBEARING TAPERED ROLLER CONE
-
123514398 BEARING TAPERED ROLLER CUPBEARING TAPERED ROLLER CUP
-
135812447 FOAMFOAM
-
141541820 SWINGARM, 3/4" PIVOT ASSY (INCL. 12, 13)SWINGARM, 3/4" PIVOT ASSY (INCL. 12, 13)
-
155412202 O-RINGO-RING
-
161380202 PROP SHAFT, ASSY (REAR)PROP SHAFT, ASSY (REAR)
-
175133389 PIVOT THREADED, SWINGARM (RIGHT)PIVOT THREADED, SWINGARM (RIGHT)
-
187553201 WASHER, SPLIT LOCKWASHER, SPLIT LOCK
-
197517585 BOLT HEXAGON HEAD (1/2 13X1 1/4)BOLT HEXAGON HEAD (1/2 13X1 1/4)
-
205133626 AXLE (REAR)AXLE (REAR)
-
217517612 SCREWSCREW
-
225411531 O-RINGO-RING
-
241012881 SKID PLATE ASSY (REAR)SKID PLATE ASSY (REAR)
-
245242851-067 PLATE SKID (BLACK)PLATE SKID (BLACK)
-
245811716 PAD RUBBERPAD RUBBER
-
255132698 COLLAR AXLE LOCKCOLLAR AXLE LOCK
-
265411707 O-RINGO-RING
-
277170910 DECAL HITCH (1000 LBS.)DECAL HITCH (1000 LBS.)
-
287661913 PIN SPRINGPIN SPRING
-
295245050 CLAMP BRAKE LINE (REAR)CLAMP BRAKE LINE (REAR)
-
307512017 SCREWSCREW
-
311013264-067 AXLE, TUBE (LEFT/BLACK)AXLE, TUBE (LEFT/BLACK)
-
323514342 BEARING AXLE TUBE/HUBSTRUTBEARING AXLE TUBE/HUBSTRUT
-
337710507 RING, RETAINER 2.500 INTERNALRING, RETAINER 2.500 INTERNAL
-
347512325 BOLTBOLT
