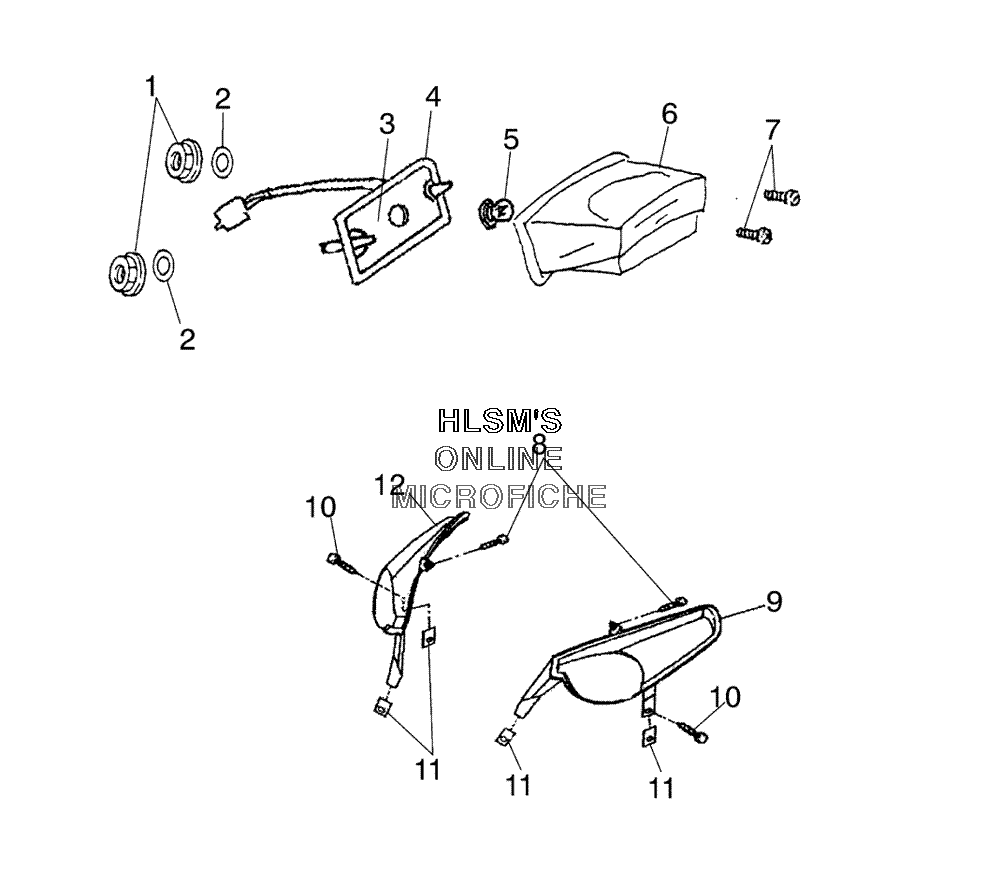

HEADLIGHT / BRAKELIGHT для Polaris PREDATOR 50 (A04KA05CA) - 2004 года выпуска
-
№АртикулНазвание
-
10450880 NUT FLANGE WITH SERRNUT FLANGE WITH SERR
-
20450041 WASHER PLAINWASHER PLAIN
-
30451800 SOCKET TAIL LIGHTSOCKET TAIL LIGHT
-
40451799 GASKET TAIL LIGHTGASKET TAIL LIGHT
-
50450995 BULB TAILLIGHTBULB TAILLIGHT
-
60451709 LENS TAILLIGHTLENS TAILLIGHT
-
70451801 TAPPING SCREW PHILLIPS PANTAPPING SCREW PHILLIPS PAN
-
80451803 SCREW TAPPINGSCREW TAPPING
-
90451324 HEAD LIGHT ASSY (RIGHT)HEAD LIGHT ASSY (RIGHT)
-
100451802 SCREW TAPPING (4MM)SCREW TAPPING (4MM)
-
110451134 U NUTU NUT
-
120451323 HEAD LIGHT ASSY (LEFT)HEAD LIGHT ASSY (LEFT)
-
120451691 TEAILLIGHT ASSY (INCL. 3, 4, 5, 6, 7)TEAILLIGHT ASSY (INCL. 3, 4, 5, 6, 7)
