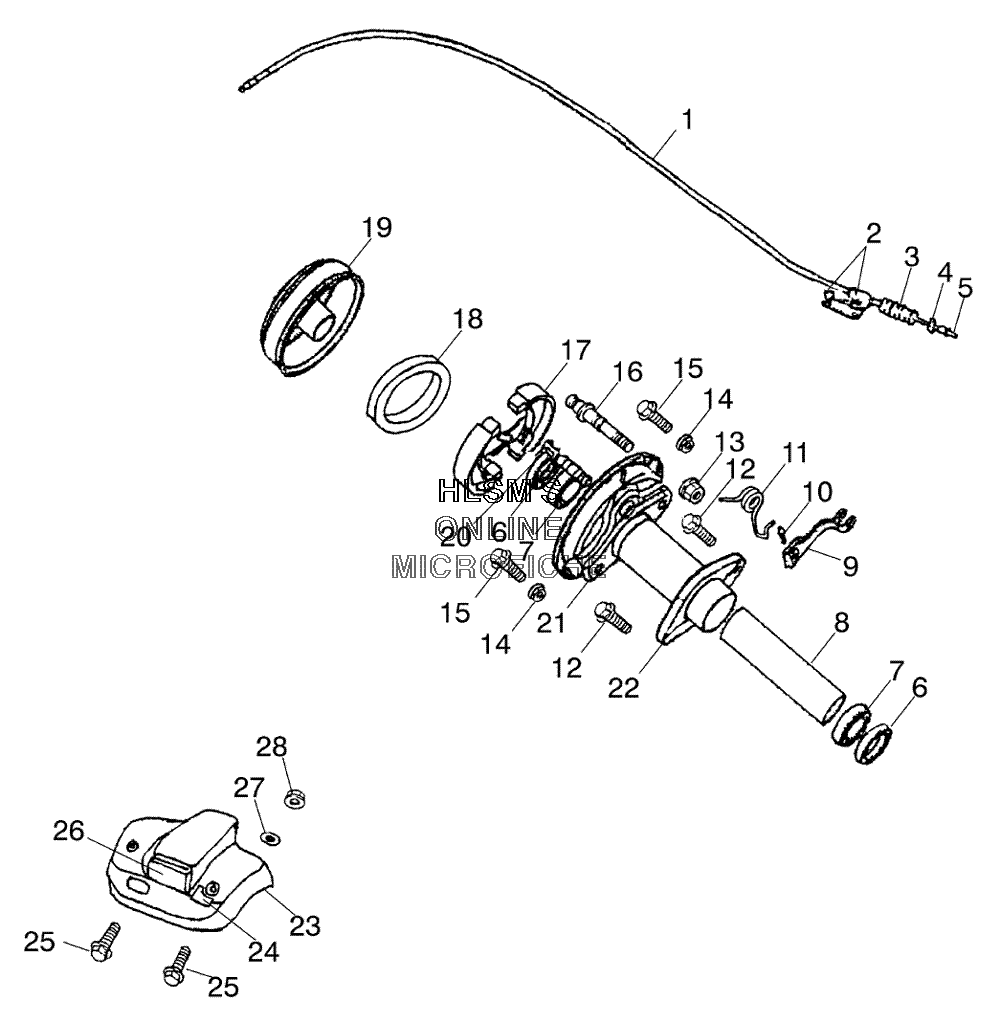

BRAKE - REAR для Polaris PREDATOR 90 (A04KA09CA) (BLACK) (USA) - 2004 года выпуска
-
№АртикулНазвание
-
10450438 CABLE, BRAKE (REAR) (43450-131-000)CABLE, BRAKE (REAR) (43450-131-000)
-
20450268 NUT FLANGENUT FLANGE
-
30450435 SPRING CABLE, BRAKE (REAR)SPRING CABLE, BRAKE (REAR)
-
40450437 FIXTURE REAR BRAKEFIXTURE REAR BRAKE
-
50451079 NUT, ADJUST BRAKENUT, ADJUST BRAKE
-
60450430 SEAL OILSEAL OIL
-
70450429 BEARING, NEEDLEBEARING, NEEDLE
-
80450428 TUBE, SPACER (42810-131-000)TUBE, SPACER (42810-131-000)
-
90450432 BRAKE ASSY (REAR)BRAKE ASSY (REAR)
-
100450433 BOLT HEXAGONBOLT HEXAGON
-
110450529 NUT FLANGENUT FLANGE
-
120450451 BOLT HEXBOLT HEX
-
130450881 NUT LOCK, NYLONNUT LOCK, NYLON
-
140450529 NUT FLANGENUT FLANGE
-
150450452 BOLT, HEXBOLT, HEX
-
160450854 SHAFT FIX, BRAKE (REAR)SHAFT FIX, BRAKE (REAR)
-
170450434 SHOE, BRAKE (REAR)SHOE, BRAKE (REAR)
-
180450442 RUBBER, PROTECTIVERUBBER, PROTECTIVE
-
190450441 DRUM, BRAKE (REAR)DRUM, BRAKE (REAR)
-
200450431 SHAFT, CAM, BRAKE (REAR)SHAFT, CAM, BRAKE (REAR)
-
210450440 PLATE, BRAKE (REAR)PLATE, BRAKE (REAR)
-
220451683 HOUSING, AXLE (REAR/SILVER)HOUSING, AXLE (REAR/SILVER)
-
230450751 COVER (REAR)COVER (REAR)
-
247171069 DECAL, DRIVE CHAINDECAL, DRIVE CHAIN
-
250450340 BOLT HEXAGONBOLT HEXAGON
-
260450446 REFLECTOR (REAR)REFLECTOR (REAR)
-
270450643 WASHER PLAINWASHER PLAIN
-
280450447 NUT, FLANGENUT, FLANGE
