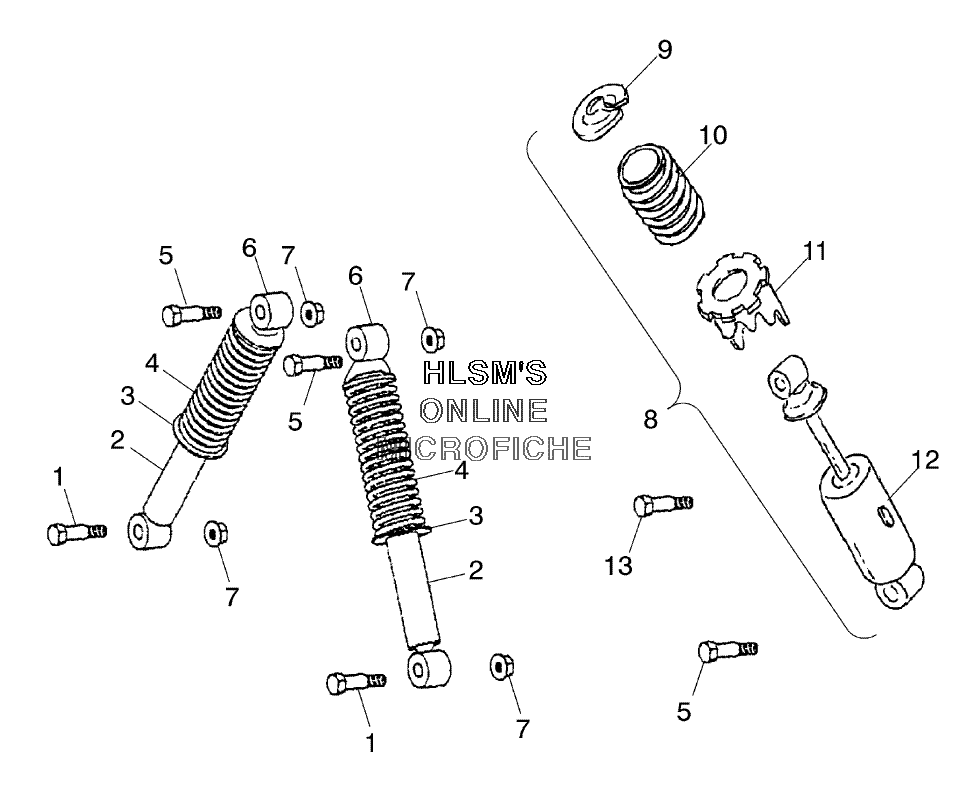

SUSPENSION для Polaris PREDATOR 90 (A04KA09CA) (BLACK) (USA) - 2004 года выпуска
-
№АртикулНазвание
-
10450868 BOLT HEXBOLT HEX
-
20450714 TUBE (INNER/FRONT) (51102-152-000)TUBE (INNER/FRONT) (51102-152-000)
-
30451675 COLLAR, ADJUSTMENT SPRING (REAR)COLLAR, ADJUSTMENT SPRING (REAR)
-
40450971 SPRING SUSPENSIONSPRING SUSPENSION
-
50450380 BOLT HEXAGONBOLT HEXAGON
-
60450906 SUSPENSION (FRONT) (INCL. 2, 4)SUSPENSION (FRONT) (INCL. 2, 4)
-
70450249 NUT FLANGENUT FLANGE
-
80451070 SHOCK ASSY (REAR) (INCL. 9, 10, 11, 12)SHOCK ASSY (REAR) (INCL. 9, 10, 11, 12)
-
90450929 RETAINER SPRINGRETAINER SPRING
-
100450905 SPRING SUSPENSION (REAR)SPRING SUSPENSION (REAR)
-
110450894 COLLAR SPRING ADJUSTMENTCOLLAR SPRING ADJUSTMENT
-
120451072 SHOCK (REAR)SHOCK (REAR)
-
130451135 BOLT, HEXAGONBOLT, HEXAGON
Все узлы модели:
- AIR BOX ASSY.
- AXLE - REAR
- BRAKE - FRONT
- BRAKE - REAR
- BUMPER MOUNTING - FRONT W/ HEADLIGHT AND TURN SIGNAL ASSY.
- CARBURETOR
- CHAIN / CHAIN GUARD
- CRANKCASE
- CRANKSHAFT W/ CYLINDER
- CYLINDER HEAD
- DECALS
- DRIVESHAFT - FRONT
- ELECTRICAL COMPONENTS
- EXHAUST SYSTEM
- FAN COVER
- FENDER - REAR W/ SEAT
- FRAME
- HANDLEBAR
- HEADLIGHT / BRAKELIGHT
- MOUNTING - ENGINE
- OIL PUMP
- OIL TANK / FUEL TANK
- PULLEY - DRIVE
- STARTER - RECOIL
- STARTING MOTOR /W GENERATOR
- STEERING POST
- • SUSPENSION
- SUSPENSION - SWING ARM W/ FOOTREST
- WHEEL - FRONT
- WHEEL - REAR
