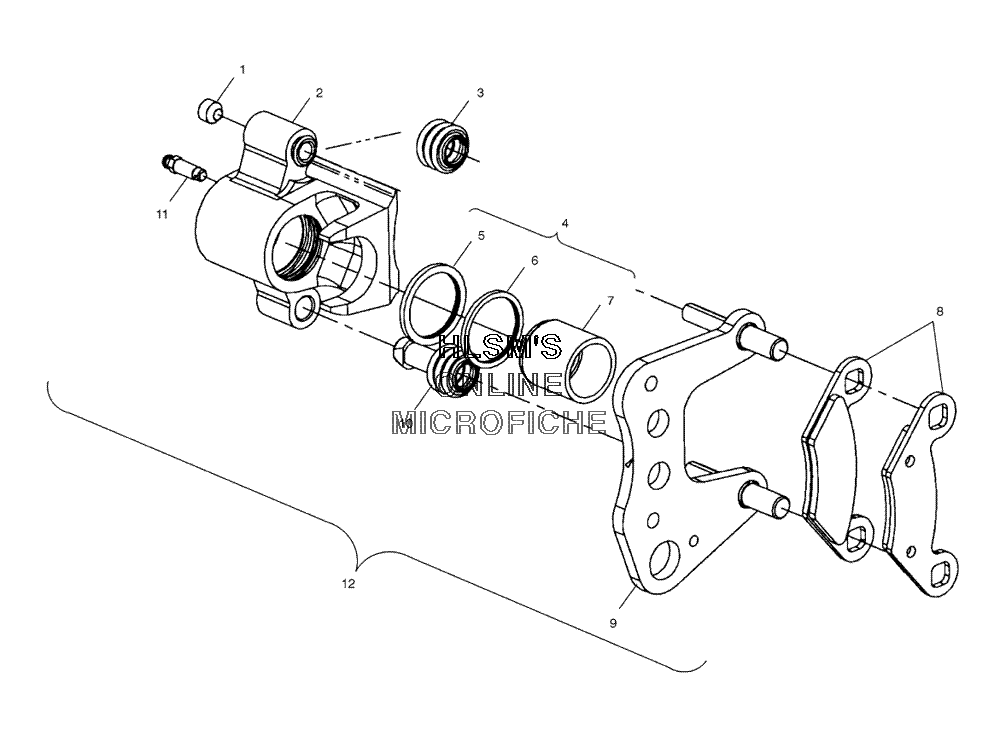

BRAKE - FRONT для Polaris SPORTSMAN 400 (A04CH42AA) (CAMO GREEN MET.) - 2004 года выпуска
-
№АртикулНазвание
-
17515489 SCREWSCREW
-
25133407 CALIPER BRAKE (LEFT) (MACH)CALIPER BRAKE (LEFT) (MACH)
-
25133408 CALIPER BRAKE (RIGHT) (MACH)CALIPER BRAKE (RIGHT) (MACH)
-
21930642 BOOT BRAKE KIT (FRONT)BOOT BRAKE KIT (FRONT)
-
35410494 BOOT PIN SEALBOOT PIN SEAL
-
41930665 PISTON AND SEAL KIT (INCL. 5 7)PISTON AND SEAL KIT (INCL. 5 7)
-
55410779 RING SQUARE MOLDED (.094)RING SQUARE MOLDED (.094)
-
65410780 RING SQUARE MOLDED (.103 X .134)RING SQUARE MOLDED (.103 X .134)
-
75132294 PSTON AND SEAL KITPSTON AND SEAL KIT
-
82202412 BRAKE PAD KIT ASSY (FRONT)BRAKE PAD KIT ASSY (FRONT)
-
91910411 MOUNT CALIPER ASSYMOUNT CALIPER ASSY
-
105410495 BOOT BUSHINGBOOT BUSHING
-
117080352 SCREW BLEEDERSCREW BLEEDER
-
121910681 CALIPER BRAKE ASSY (LEFT) (INCL. 1-7, 9, 10)CALIPER BRAKE ASSY (LEFT) (INCL. 1-7, 9, 10)
-
121910682 CALIPER BRAKE ASSY (RIGHT) (INCL. 1-7, 9, 10)CALIPER BRAKE ASSY (RIGHT) (INCL. 1-7, 9, 10)
