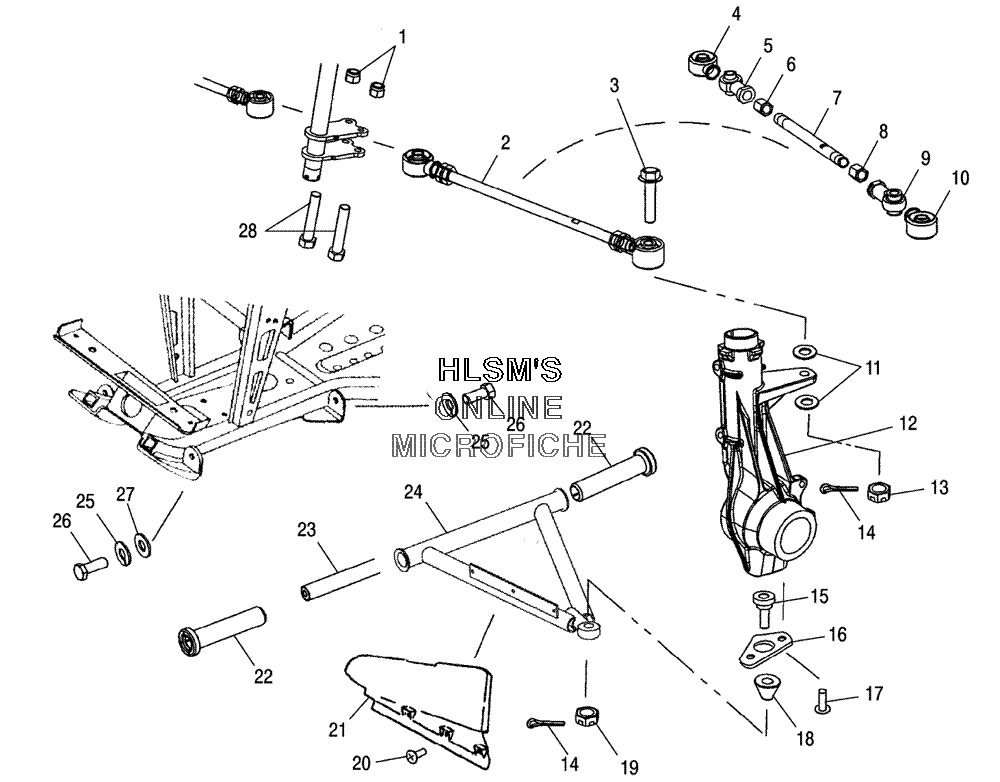

SUSPENSION - FRONT A ARM W/ STRUT MOUNTING для Polaris SPORTSMAN 400 (A04CH42AA) (CAMO GREEN MET.) - 2004 года выпуска
-
№АртикулНазвание
-
17542439 NUT NYLOKNUT NYLOK
-
21820805 TIE ROD ASSYTIE ROD ASSY
-
37517909 BOLT HEXAGON WASH HEADBOLT HEXAGON WASH HEAD
-
45411291 SEAL BOOT ROD ENDSEAL BOOT ROD END
-
57061034 ROD END (RIGHT)ROD END (RIGHT)
-
67542711 NUT JAMNUT JAM
-
75020926 ROD TIEROD TIE
-
87547028 NUT JAM (LEFT)NUT JAM (LEFT)
-
97061054 ROD END 42 DEG (10MM) (LEFT)ROD END 42 DEG (10MM) (LEFT)
-
105411920 BOOT SEAL ROD END (10MM)BOOT SEAL ROD END (10MM)
-
117556099 WASHERWASHER
-
137547177 NUT HEXAGON LOCKNUT HEXAGON LOCK
-
147661203 PIN COTTERPIN COTTER
-
157080927 BALL JOINT 52 DEGBALL JOINT 52 DEG
-
165211121 BRAKET BALL JOINTBRAKET BALL JOINT
-
177512284 BOLT SOCKETBOLT SOCKET
-
185410548 BOOT RUBBERBOOT RUBBER
-
197542438 NUT CASTLENUT CASTLE
-
207512084 SCREWSCREW
-
215431837 SHIELD (LEFT/BLACK)SHIELD (LEFT/BLACK)
-
215431838 SHIELD (RIGHT/BLACK)SHIELD (RIGHT/BLACK)
-
225434551 BUSHING A ARM LONG (BLACK)BUSHING A ARM LONG (BLACK)
-
235133806 SHAFT A ARMSHAFT A ARM
-
242202280 A FRAME KIT (LEFT) (INCL. 14, 22, 23, 25, 26)A FRAME KIT (LEFT) (INCL. 14, 22, 23, 25, 26)
-
242202281 A FRAME KIT (RIGHT) (INCL. 14, 22, 23, 25, 26)A FRAME KIT (RIGHT) (INCL. 14, 22, 23, 25, 26)
-
257552603 WASHER SPRING LOCKWASHER SPRING LOCK
-
267512492 SCREWSCREW
-
277555832 WASHERWASHER
-
287515415 SCREWSCREW
