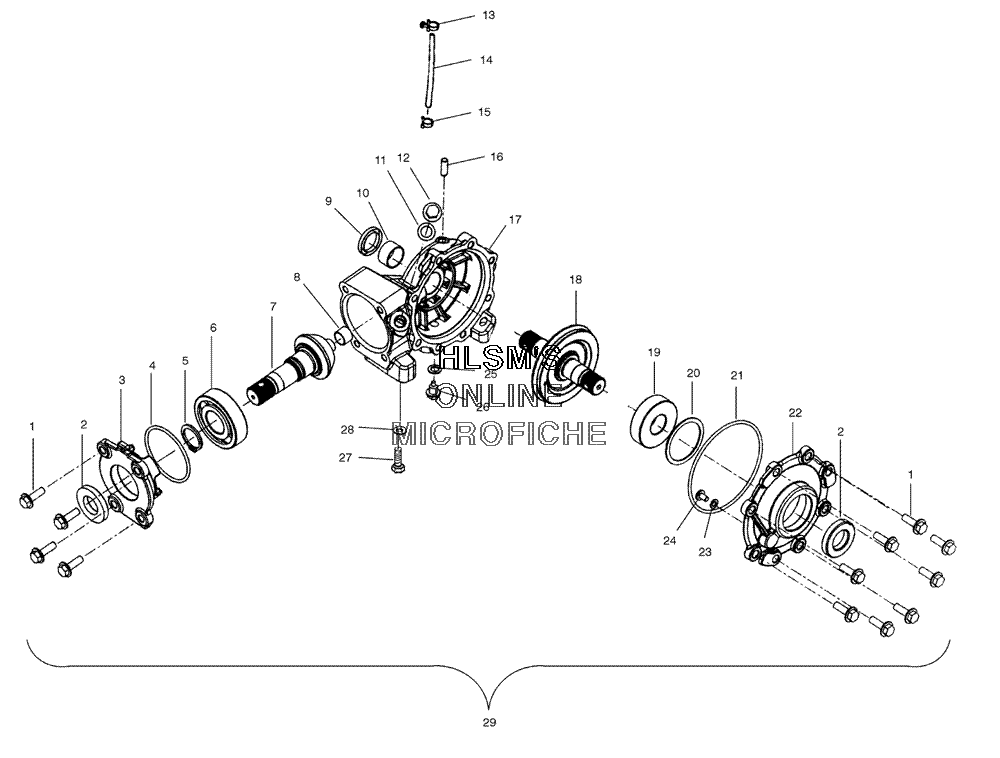

DIFFERENTIAL - FRONT для Polaris SPORTSMAN 400 (A04CH42AG) (MED. (YELLOW) - 2004 года выпуска
-
№АртикулНазвание
-
13233252 SCREWSCREW
-
23233248 SEAL TRIPLE LIPSEAL TRIPLE LIP
-
33233701 INPUT COVER HOUSING (FRONT)INPUT COVER HOUSING (FRONT)
-
43233700 O-RINGO-RING
-
53233699 RING RETAININGRING RETAINING
-
63233589 BEARING BALLBEARING BALL
-
73233726 PINION INPUTPINION INPUT
-
83233541 BUSHING GARLOCKBUSHING GARLOCK
-
93233319 SEALSEAL
-
103233697 BUSHINHG GARLOCKBUSHINHG GARLOCK
-
113233324 WASHERWASHER
-
123233711 PLUG OIL FILLPLUG OIL FILL
-
137080756 CLIP SNAP INCLIP SNAP IN
-
148450003-1525 LINE FUEL (1/4 ID/1525 CM.)LINE FUEL (1/4 ID/1525 CM.)
-
157080307 CLAMP HOSECLAMP HOSE
-
163233524 TUBE VENTTUBE VENT
-
173233696 GEARCASEGEARCASE
-
183233725 SHAFT OUTPUTSHAFT OUTPUT
-
193233020 BEARINGBEARING
-
203233554 SHIMSHIM
-
213233693 O-RINGO-RING
-
223233724 COVER OUTPUTCOVER OUTPUT
-
233233583 SHIM (.450 X .265)SHIM (.450 X .265)
-
243233582 BUTTON THRUSTBUTTON THRUST
-
253233254 WASHER PLUGWASHER PLUG
-
263233253 PLUG HEXAGON FLANGEPLUG HEXAGON FLANGE
-
277512492 SCREWSCREW
-
287552603 WASHER SPRING LOCKWASHER SPRING LOCK
-
291341323 GEARCASE ASSY (FRONT) (INCL. 1-12, 16-26)GEARCASE ASSY (FRONT) (INCL. 1-12, 16-26)
