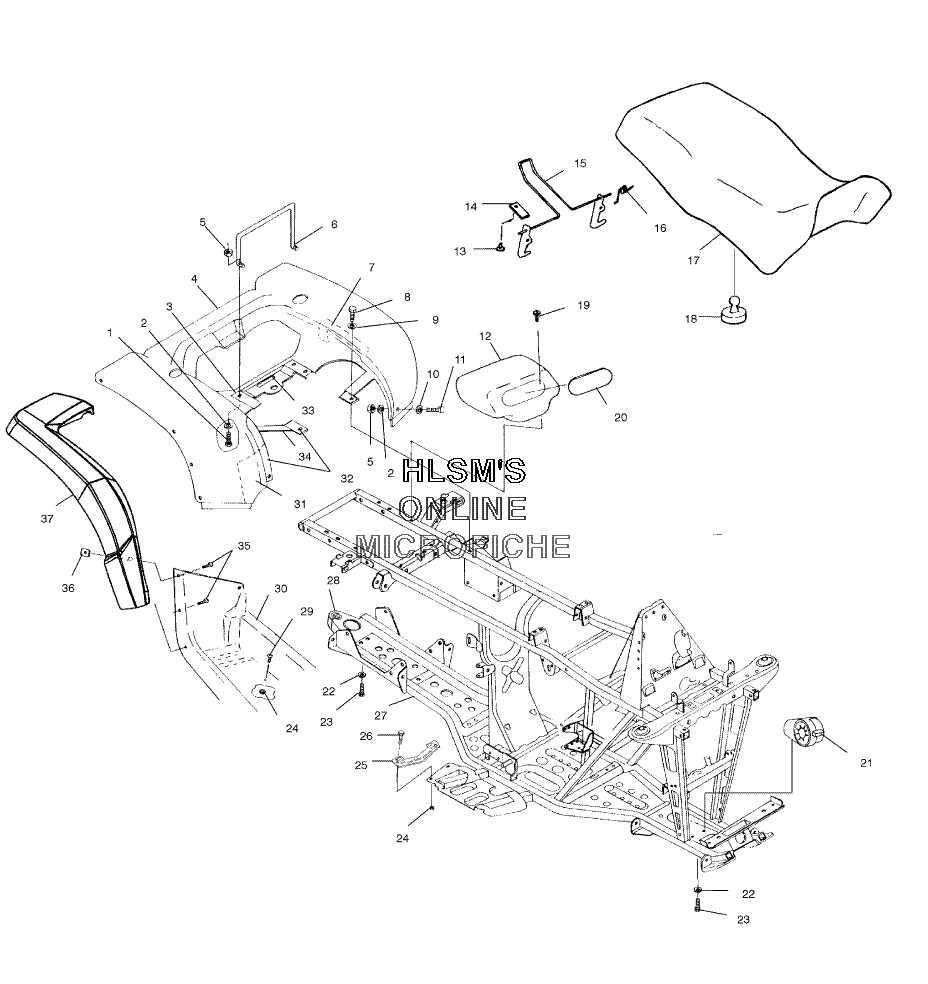

FENDER - REAR W/ SEAT для Polaris SPORTSMAN 400 (A04CH42AG) (MED. (YELLOW) - 2004 года выпуска
-
№АртикулНазвание
-
17511930 SCREWSCREW
-
27555792 WASHERWASHER
-
35811107 FOIL REARFOIL REAR
-
45432117-341 CAB (REAR/SONIC BLUE METALLIC)CAB (REAR/SONIC BLUE METALLIC)
-
57541925 NUT NYLOKNUT NYLOK
-
65224592 RETAINER SEAT LATCHRETAINER SEAT LATCH
-
75811308 FOIL TAPE (3 X 12)FOIL TAPE (3 X 12)
-
87512242 SCREWSCREW
-
97555859 WASHER FLATWASHER FLAT
-
107556034 WASHERWASHER
-
117512085 SCREWSCREW
-
125431786 TOOLBOXTOOLBOX
-
137621403 BLIND RIVETBLIND RIVET
-
145211033 BRACKET LEVER RETAINERBRACKET LEVER RETAINER
-
151040387 LATCH SEATLATCH SEAT
-
167041370 SPRING LATCHSPRING LATCH
-
172683222-070 SEAT ASSY (BLACK)SEAT ASSY (BLACK)
-
172682958-070 COVERING SEAT (BLACK)COVERING SEAT (BLACK)
-
185412067 BUMPER RUBBERBUMPER RUBBER
-
197517375 WASHERWASHER
-
205431787 COVER TOOLBOXCOVER TOOLBOX
-
227552603 WASHER SPRING LOCKWASHER SPRING LOCK
-
237512492 SCREWSCREW
-
247542122 NUT NYLOKNUT NYLOK
-
255432280 SPACER FOOTWELLSPACER FOOTWELL
-
267517377 SCREWSCREW
-
271014322-067 WELD MAIN FRAME (BLACK)WELD MAIN FRAME (BLACK)
-
287170911 DECAL HITCH (1225 LBS.)DECAL HITCH (1225 LBS.)
-
297517376 SCREWSCREW
-
305432221-070 FOOTWELL NYLON (LEFT/BLACK)FOOTWELL NYLON (LEFT/BLACK)
-
305433219-070 FOOTWELL NYLON (RIGHT/BLACK)FOOTWELL NYLON (RIGHT/BLACK)
-
315811111 FOILFOIL
-
325811106 FOIL (FRONT)FOIL (FRONT)
-
337079902 DECAL CARBURETOR/FILTER INFODECAL CARBURETOR/FILTER INFO
-
345811087 FOIL (6X1)FOIL (6X1)
-
357512232 BOLTBOLT
-
367670057 NUT SPEEDNUT SPEED
-
375434704-070 GUARD MUD (REAR/LEFT/BLACK)GUARD MUD (REAR/LEFT/BLACK)
-
375434705-070 GUARD MUD (REAR/RIGHT/BLACK)GUARD MUD (REAR/RIGHT/BLACK)
