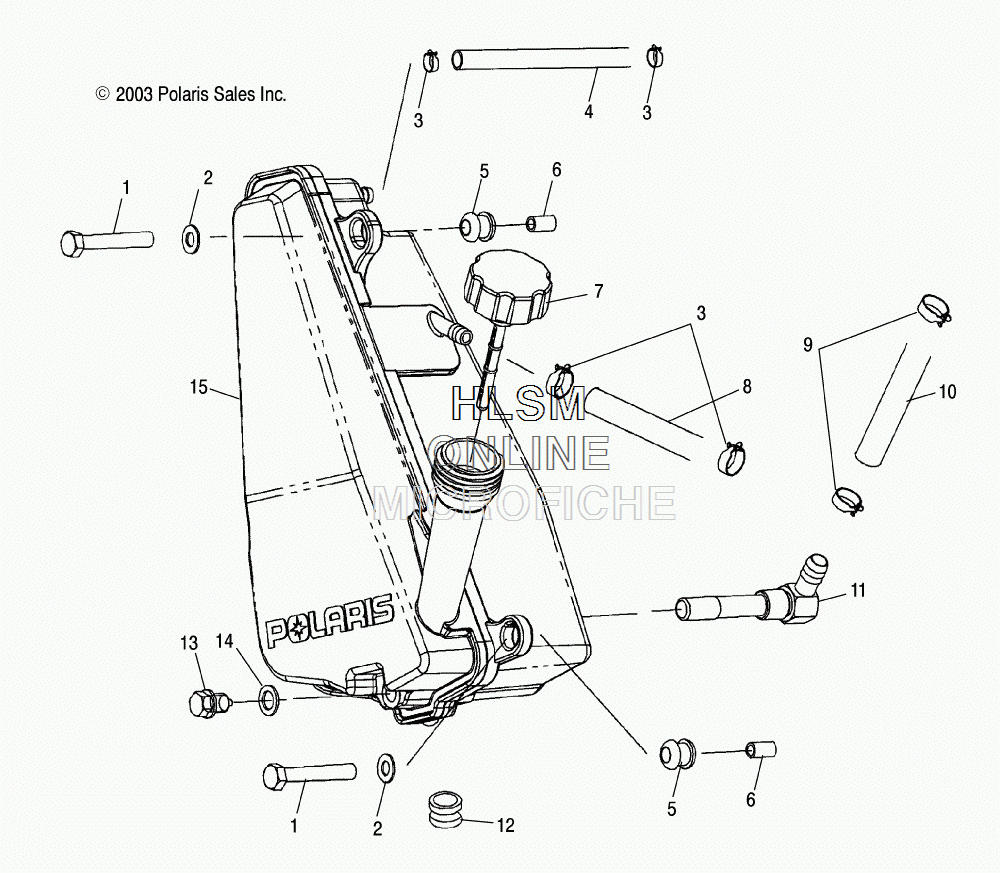

OIL TANK для Polaris SPORTSMAN 500 (A04CH50AC) (N.B.U. SUB CAMO) - 2004 года выпуска
-
№АртикулНазвание
-
17512242 SCREWSCREW
-
27558301 WASHER, FLATWASHER, FLAT
-
37080699 CLAMPCLAMP
-
45411668 LINE, BREATHERLINE, BREATHER
-
55410828 GROMMETGROMMET
-
65333204 BUSHING, MOUNTINGBUSHING, MOUNTING
-
75434574 DIPSTICKDIPSTICK
-
88450073-34 HOSE, BREATHERHOSE, BREATHER
-
97081026 CLAMPCLAMP
-
108450096-25 LINELINE
-
117052326 SCREEN, OIL FILTER, 90 DEGREESCREEN, OIL FILTER, 90 DEGREE
-
125411042 GROMMETGROMMET
-
137051524 PLUGPLUG
-
145850135 WASHER, NYLONWASHER, NYLON
-
151261176 TANK, OILTANK, OIL
