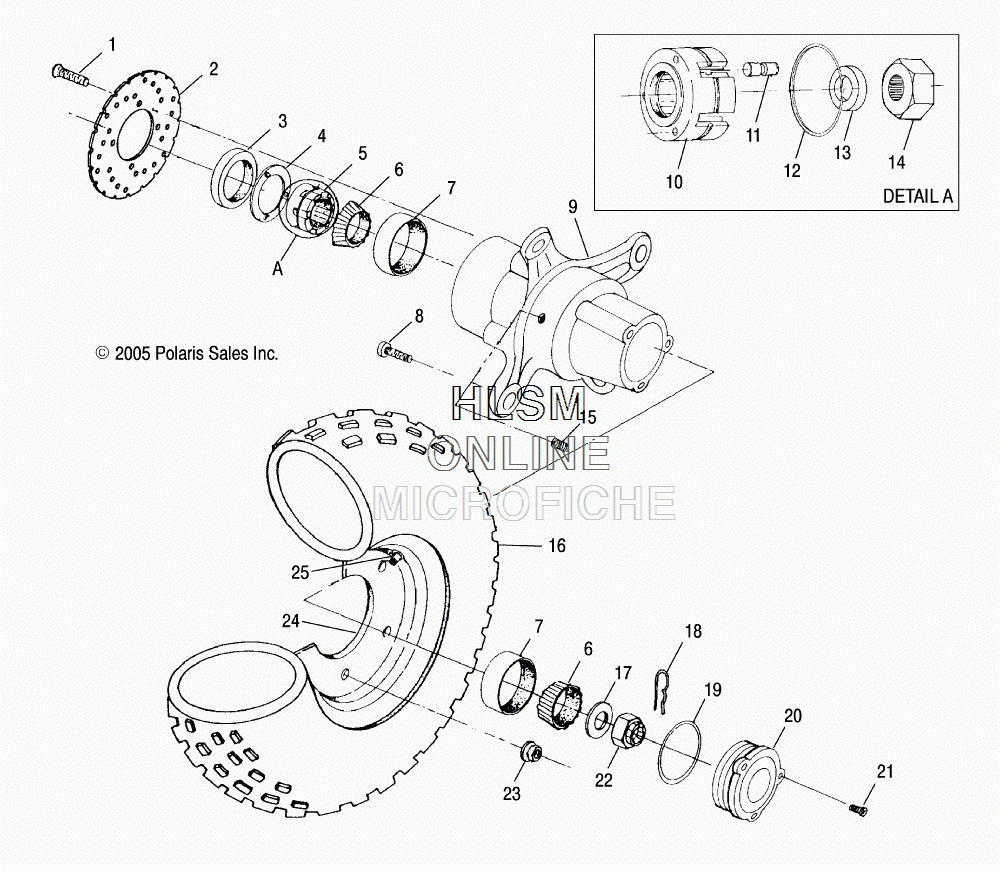

WHEEL - FRONT для Polaris SPORTSMAN 500 (A04CH50AC) (N.B.U. SUB CAMO) - 2004 года выпуска
-
№АртикулНазвание
-
17512325 BOLTBOLT
-
25243676 DISC, BRAKEDISC, BRAKE
-
33610019 SEAL, FRONT HUBSEAL, FRONT HUB
-
45211148 PLATE, ARMATUREPLATE, ARMATURE
-
51520281 CLUTCH, FRONT HUB, ELEC./MECH. (SPLINED DRIVE SHAFT)CLUTCH, FRONT HUB, ELEC./MECH. (SPLINED DRIVE SHAFT)
-
63554506 BEARING, TAPERED ROLLER CONEBEARING, TAPERED ROLLER CONE
-
73554507 BEARING, TAPERED ROLLER CUPBEARING, TAPERED ROLLER CUP
-
87515513 STUDSTUD
-
91520243 ASM., HUB (INCL. 3,7,8)ASM., HUB (INCL. 3,7,8)
-
103250028 CAGE, ROLLCAGE, ROLL
-
113250010 ROLLROLL
-
123250032 SPRING, GARTERSPRING, GARTER
-
131321814 SPACERSPACER
-
143250030 CAMCAM
-
157052045 PLUG, MAGNETIC DRAINPLUG, MAGNETIC DRAIN
-
165411952 TIRETIRE
-
177556004 WASHERWASHER
-
187661401 PIN, COTTERPIN, COTTER
-
195410470 O-RINGO-RING
-
205432611 CAP, HUBCAP, HUB
-
217512027 SCREWSCREW
-
227542810 NUT, SLOTTEDNUT, SLOTTED
-
237547237 NUT, FLANGENUT, FLANGE
-
241520563-067 RIM, FRONT, BLACKRIM, FRONT, BLACK
-
251525017 VALVE, RIMVALVE, RIM
