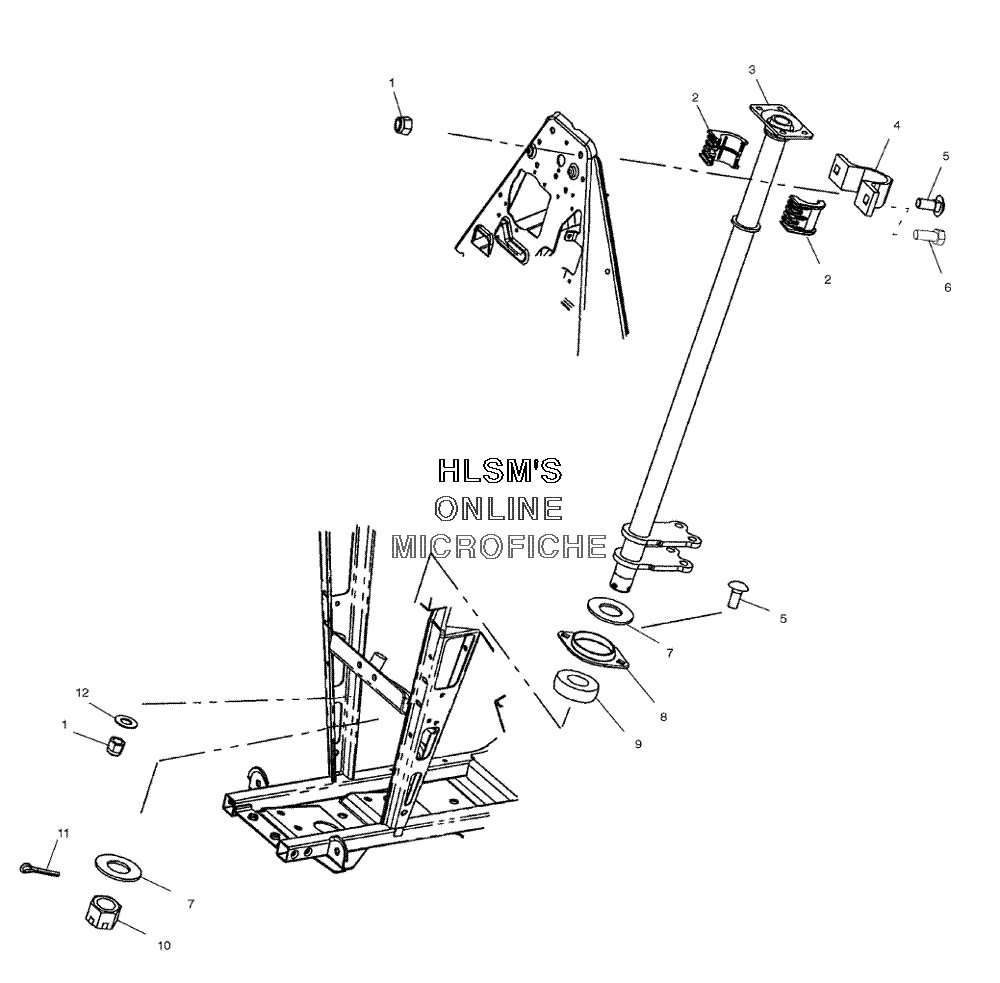

STEERING POST для Polaris SPORTSMAN 700 (A04CH68AC) (N.B.U. SUB. CAMO) - 2004 года выпуска
-
№АртикулНазвание
-
17542324 NUT,NYLOK (10)NUT,NYLOK (10)
-
25433866 BUSHING-UPPER,1 INBUSHING-UPPER,1 IN
-
31013920-067 SUBSTITUTED BY 2202825 (IF BUILT BEFORE 1/05/04)SUBSTITUTED BY 2202825 (IF BUILT BEFORE 1/05/04)
-
31822630-067 SUBSTITUTED BY 2202825 (IF BUILT AFTER 1/05/04)SUBSTITUTED BY 2202825 (IF BUILT AFTER 1/05/04)
-
45246732 BRKT-UPPER BUSHINGBRKT-UPPER BUSHING
-
57512377 BOLT,CARRIAGEBOLT,CARRIAGE
-
67517428 BOLTBOLT
-
77556162 BUSHING-1X1 1/2X .145BUSHING-1X1 1/2X .145
-
85222393 FLANGETTE (2-BOLT)FLANGETTE (2-BOLT)
-
93514352 BEARING-1XM52XM15,SPHBEARING-1XM52XM15,SPH
-
107547158 NUT-SLOTTED HEX,1-14-HXNUT-SLOTTED HEX,1-14-HX
-
117661633 PIN, COTTERPIN, COTTER
-
127558402 WASHER,FLAT (10)WASHER,FLAT (10)
