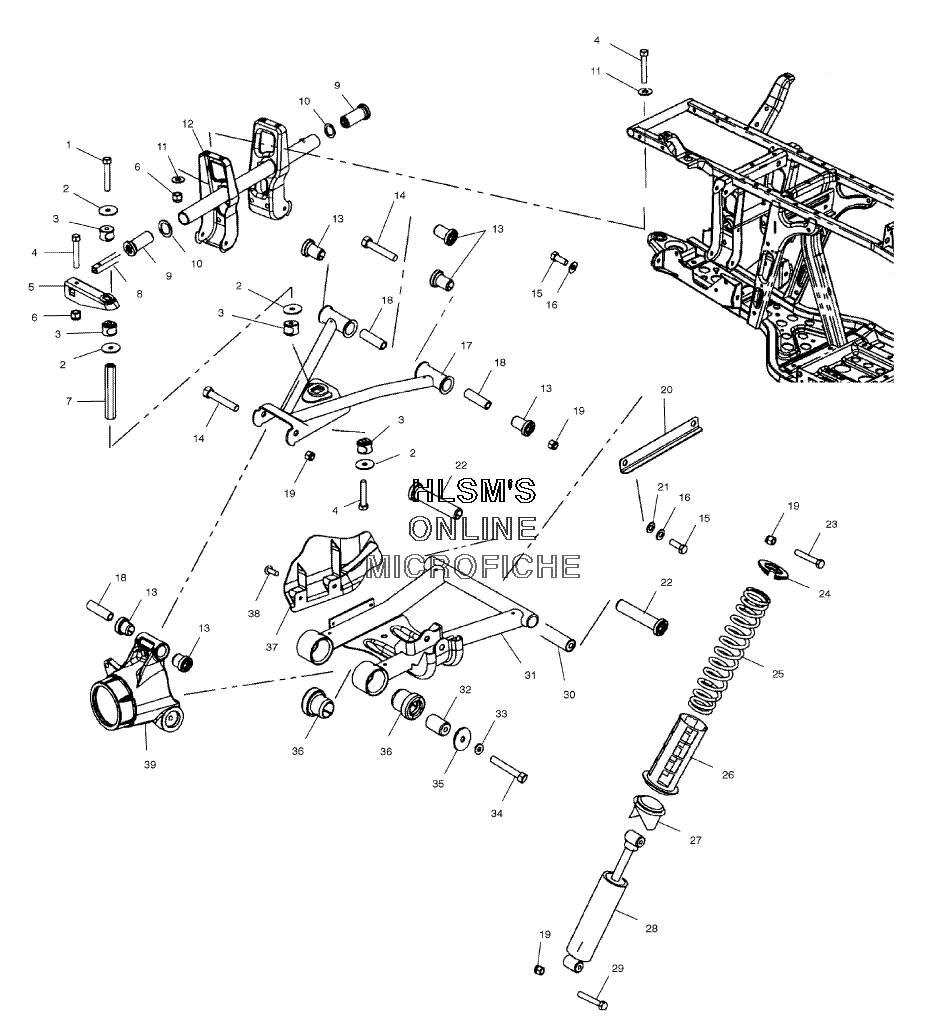

SUSPENSION - REAR для Polaris SPORTSMAN 700 (A04CH68AC) (N.B.U. SUB. CAMO) - 2004 года выпуска
-
№АртикулНазвание
-
17517231 SCREWSCREW
-
27555761 WASHERWASHER
-
35432598 BUSHING,STAB.LINKBUSHING,STAB.LINK
-
47512329 BOLTBOLT
-
51580107-067 ARM,STAB.BAR,BLKARM,STAB.BAR,BLK
-
67542324 NUT,NYLOK (10)NUT,NYLOK (10)
-
75020827 ROD-LINKAGE, STABILIZERROD-LINKAGE, STABILIZER
-
85334114-067 BAR-STABILIZER TUBE,BLKBAR-STABILIZER TUBE,BLK
-
95434549 BUSHING-STABILIZER,TUBE,BLKBUSHING-STABILIZER,TUBE,BLK
-
107555939 WASHERWASHER
-
117558402 WASHER,FLAT (10)WASHER,FLAT (10)
-
121541801-067 STABILIZER SUPPORT,BLKSTABILIZER SUPPORT,BLK
-
135434548 BUSHING-A-ARM-SHORT,BLKBUSHING-A-ARM-SHORT,BLK
-
147515472 BOLTBOLT
-
157512492 SCREW (10)SCREW (10)
-
167552603 WASHER,SPRING LOCK (10)WASHER,SPRING LOCK (10)
-
171014320-293 WELD-UPPER CONTROL ARM,LH,REDWELD-UPPER CONTROL ARM,LH,RED
-
171014321-293 WELD-UPPER CONTROL ARM,RH,REDWELD-UPPER CONTROL ARM,RH,RED
-
171014320-067 WELD-UPPER CONTROL ARM,LH,BLK (AT) (AV)WELD-UPPER CONTROL ARM,LH,BLK (AT) (AV)
-
171014321-067 WELD-UPPER CONTROL ARM,RH,BLK (AT) (AV)WELD-UPPER CONTROL ARM,RH,BLK (AT) (AV)
-
185020826 SHAFT,A-ARM,SHORTSHAFT,A-ARM,SHORT
-
197542439 NUT,NYLOK (10)NUT,NYLOK (10)
-
205245140-067 STRAP-BLKSTRAP-BLK
-
217555806 WASHER,FLAT (10)WASHER,FLAT (10)
-
225434551 BUSHING-A-ARM,LONG,BLKBUSHING-A-ARM,LONG,BLK
-
237515433 SCREW (10)SCREW (10)
-
245630885 RETAINER,SPRINGRETAINER,SPRING
-
257041453-293 SUBSTITUTED BY 7042311-293 (IF BUILT BEFORE 6/16/03)SUBSTITUTED BY 7042311-293 (IF BUILT BEFORE 6/16/03)
-
257041453-067 SUBSTITUTED BY 7042311-067 (AT) (AV) (IF BUILT BEFORE 6/16/03)SUBSTITUTED BY 7042311-067 (AT) (AV) (IF BUILT BEFORE 6/16/03)
-
257042311-293 SPRING-COMP,REAR,100#,15LG,RED (IF BUILT AFTER 6/16/03)SPRING-COMP,REAR,100#,15LG,RED (IF BUILT AFTER 6/16/03)
-
257042311-067 SPRING-COMP,REAR ,BLK (AT) (AV) (IF BUILT AFTER 6/16/03)SPRING-COMP,REAR ,BLK (AT) (AV) (IF BUILT AFTER 6/16/03)
-
265433551 SLEEVE,SHOCK PROTECTOR (IF BUILT BEFORE 6/01/04)SLEEVE,SHOCK PROTECTOR (IF BUILT BEFORE 6/01/04)
-
265435273 SUBSTITUTED BY 5433551 (IF BUILT AFTER 6/01/04)SUBSTITUTED BY 5433551 (IF BUILT AFTER 6/01/04)
-
275631014 CAM,SPRING ADJUST,1-3/8CAM,SPRING ADJUST,1-3/8
-
287041959 SHOCK-RR,IRSSHOCK-RR,IRS
-
297515415 SCREW (10)SCREW (10)
-
305133806 SHAFT-A-ARMSHAFT-A-ARM
-
311014174-293 WELD-ARM,CONTROL,LOWER,LH,REDWELD-ARM,CONTROL,LOWER,LH,RED
-
311014175-293 WELD-ARM,CONTROL,LOWER,RH,REDWELD-ARM,CONTROL,LOWER,RH,RED
-
311014174-067 WELD-ARM,CONTROL,LOWER,LH,BLK (AT) (AV)WELD-ARM,CONTROL,LOWER,LH,BLK (AT) (AV)
-
311014175-067 WELD-ARM,CONTROL,LOWER,RH,BLK (AT) (AV)WELD-ARM,CONTROL,LOWER,RH,BLK (AT) (AV)
-
325631142 BUSHING-BRNG,CARRIER,PM,7/16BUSHING-BRNG,CARRIER,PM,7/16
-
337552614 WASHER, LOCKWASHER, LOCK
-
347517873 BOLT-7/16-14 UNC-2AX2.75" GR5 (BOLT-7/16-14 UNC-2AX2.75" GR5 (
-
357555740 WASHER (10)WASHER (10)
-
365434550 BUSHING-CONTROL,LOWER,BLKBUSHING-CONTROL,LOWER,BLK
-
375434890-1038 SHIELD-CV REAR,LH,BLKSHIELD-CV REAR,LH,BLK
-
375434891-1038 SHIELD-CV REAR,RH,BLKSHIELD-CV REAR,RH,BLK
-
387512084 SCREW (10)SCREW (10)
-
395133663 CARRIER-BEARING,WHEEL (MACH)LHCARRIER-BEARING,WHEEL (MACH)LH
-
395133664 CARRIER-BEARING,WHEEL (MACH)RH (RH)CARRIER-BEARING,WHEEL (MACH)RH (RH)
