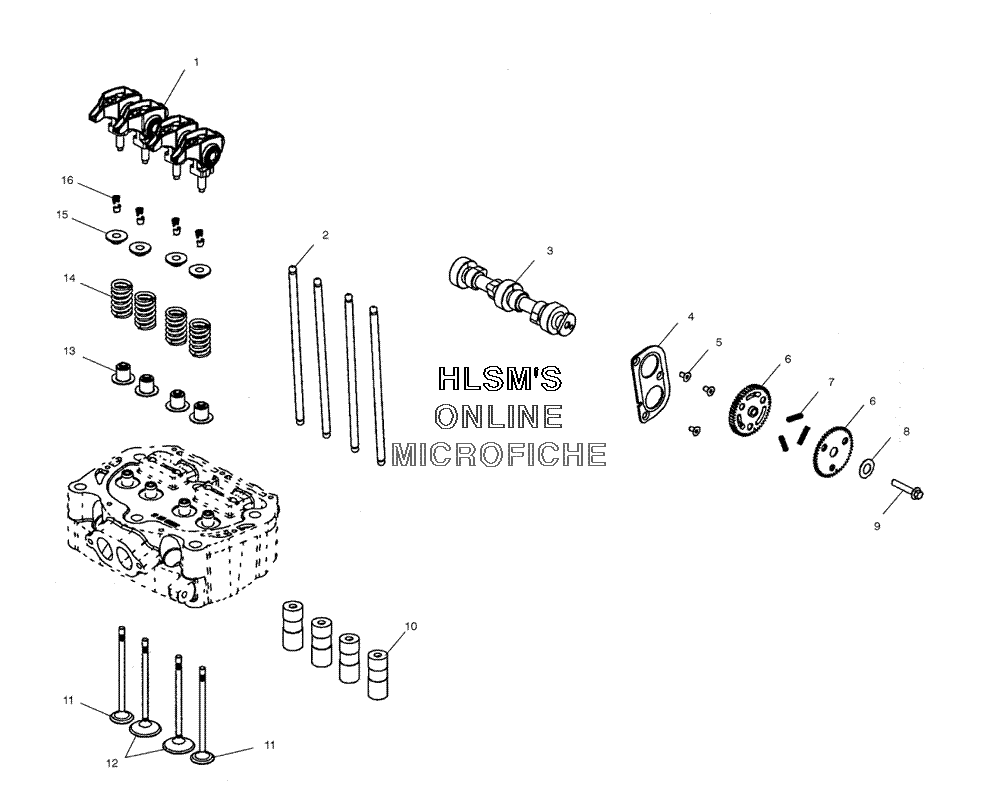

CAMSHAFT W/ VALVE ASSY. для Polaris SPORTSMAN 700 (A04CH68AK) (CAMO GREEN MET.) - 2004 года выпуска

№

Артикул

Название
1

1202169 ROCKER ARM ASSY

ROCKER ARM ASSY

20 800 ₽
2

5132402 PUSHROD

PUSHROD

7 490 ₽
3

2202110 CAMSHAFT 680 ATV 02 KIT (INCL. 10) (IF BUILT BEFORE 10/02/03)

CAMSHAFT 680 ATV 02 KIT (INCL. 10) (IF BUILT BEFORE 10/02/03)

85 280 ₽
3

2202693 CAMSHAFT KIT (INCL. 10) (IF BUILT AFTER 10/02/03)

CAMSHAFT KIT (INCL. 10) (IF BUILT AFTER 10/02/03)

70 720 ₽
4

5244286 PLATE THRUST

PLATE THRUST

7 910 ₽
5

7517598 SCREW

SCREW

1 670 ₽
6

2202145 GEAR SET KIT

GEAR SET KIT

79 670 ₽
7

7041999 SPRNG COMPRESSION

SPRNG COMPRESSION

5 620 ₽
8

7556183 WASHER SPRING

WASHER SPRING

1 460 ₽
9

7517865 SCREW

SCREW

1 870 ₽
10

5131415 LIFTER VALVE HYDRAULIC (IF BUILT BEFORE 10/02/03)

LIFTER VALVE HYDRAULIC (IF BUILT BEFORE 10/02/03)

4 370 ₽
10

5134152 LIFTER VALVE HYDRAULIC (IF BUILT AFTER 10/02/03)

LIFTER VALVE HYDRAULIC (IF BUILT AFTER 10/02/03)

4 370 ₽
11

5133141 VALVE EXHAUST HIGH TEMP (26MM) (IF BUILT BEFORE 10/02/03)

VALVE EXHAUST HIGH TEMP (26MM) (IF BUILT BEFORE 10/02/03)

16 640 ₽
11

5133363 VALVE EXHAUST HI TEMP (35MM) (IF BUILT AFTER 10/02/03)

VALVE EXHAUST HI TEMP (35MM) (IF BUILT AFTER 10/02/03)

13 520 ₽
12

5132696 VALVE INTAKE (35MM)

VALVE INTAKE (35MM)

6 240 ₽
13

5411895 SEAL VALVE GUIDE

SEAL VALVE GUIDE

2 290 ₽
14

7041565 SPRING VALVE

SPRING VALVE

2 910 ₽
15

5131413 RETAINER SPRING

RETAINER SPRING

4 370 ₽
16

5910042 RETAINER LOCK VALVE STEM

RETAINER LOCK VALVE STEM

670 ₽
