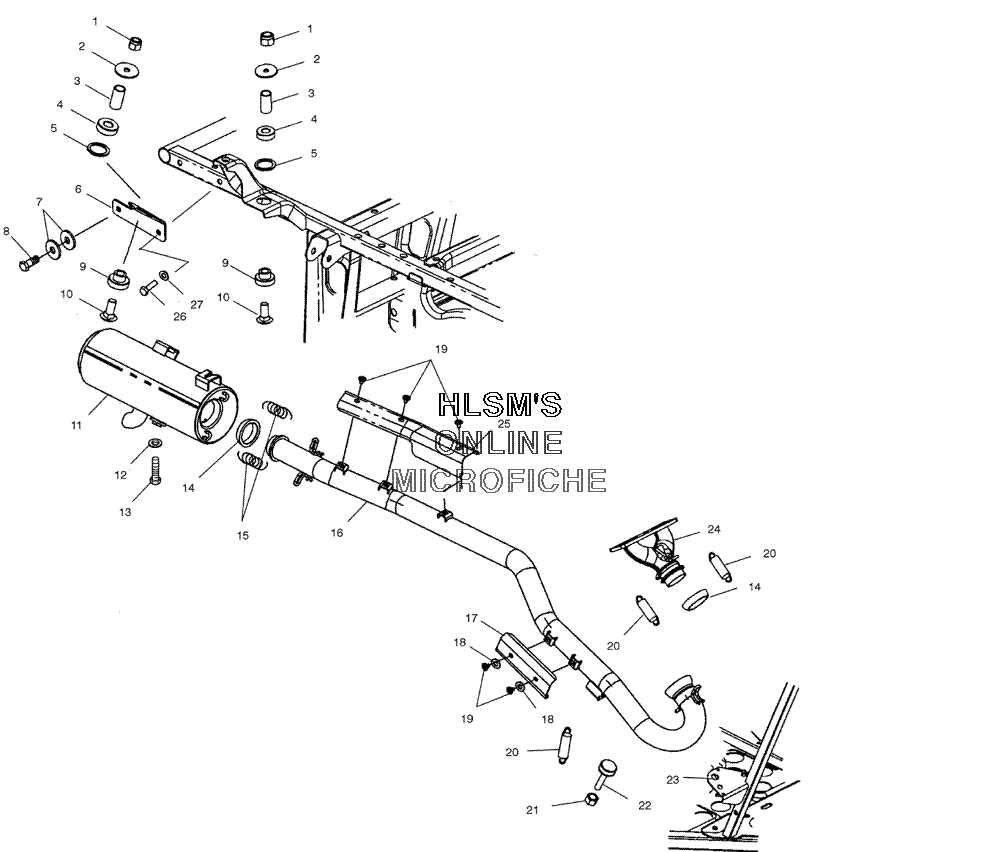

EXHAUST SYSTEM для Polaris SPORTSMAN 700 (A04CH68AK) (CAMO GREEN MET.) - 2004 года выпуска
-
№АртикулНазвание
-
17542324 NUT NYLOKNUT NYLOK
-
27555716 WASHERWASHER
-
35010192 BUSHINGBUSHING
-
45410436 WASHER RUBBERWASHER RUBBER
-
57555863 BUSHINGBUSHING
-
65241663 BRAKET SILENCER FRAME PLATEDBRAKET SILENCER FRAME PLATED
-
77555935 WASHERWASHER
-
87517615 SCREWSCREW
-
95412508 DAMPENER VIBRATIONDAMPENER VIBRATION
-
107515316 BOLTBOLT
-
111261223-029 WELD EXHAUST SILENCER (BLACK)WELD EXHAUST SILENCER (BLACK)
-
127556230 WASHER CLEAN OUTWASHER CLEAN OUT
-
137512666 BOLTBOLT
-
143610047 SEAL EXHAUST SOCKETSEAL EXHAUST SOCKET
-
157041804 SPRINGSPRING
-
161261242-029 EXHAUST PIPE (BLACK)EXHAUST PIPE (BLACK)
-
175244014 SHIELD HEAT EXHAUSTSHIELD HEAT EXHAUST
-
187555935 WASHERWASHER
-
197515197 SCREWSCREW
-
207041789 SPRINGSPRING
-
217542301 NUT HEXAGONNUT HEXAGON
-
223110064 MOUNT TORQUE STOPMOUNT TORQUE STOP
-
237547101 NUTSERT HEXAGONNUTSERT HEXAGON
-
241261077-029 WELD MANIFOLD (BLACK)WELD MANIFOLD (BLACK)
-
255245502 SHIELD HEAT EXHAUSTSHIELD HEAT EXHAUST
-
267512329 BOLTBOLT
-
277558402 WASHER FLATWASHER FLAT
