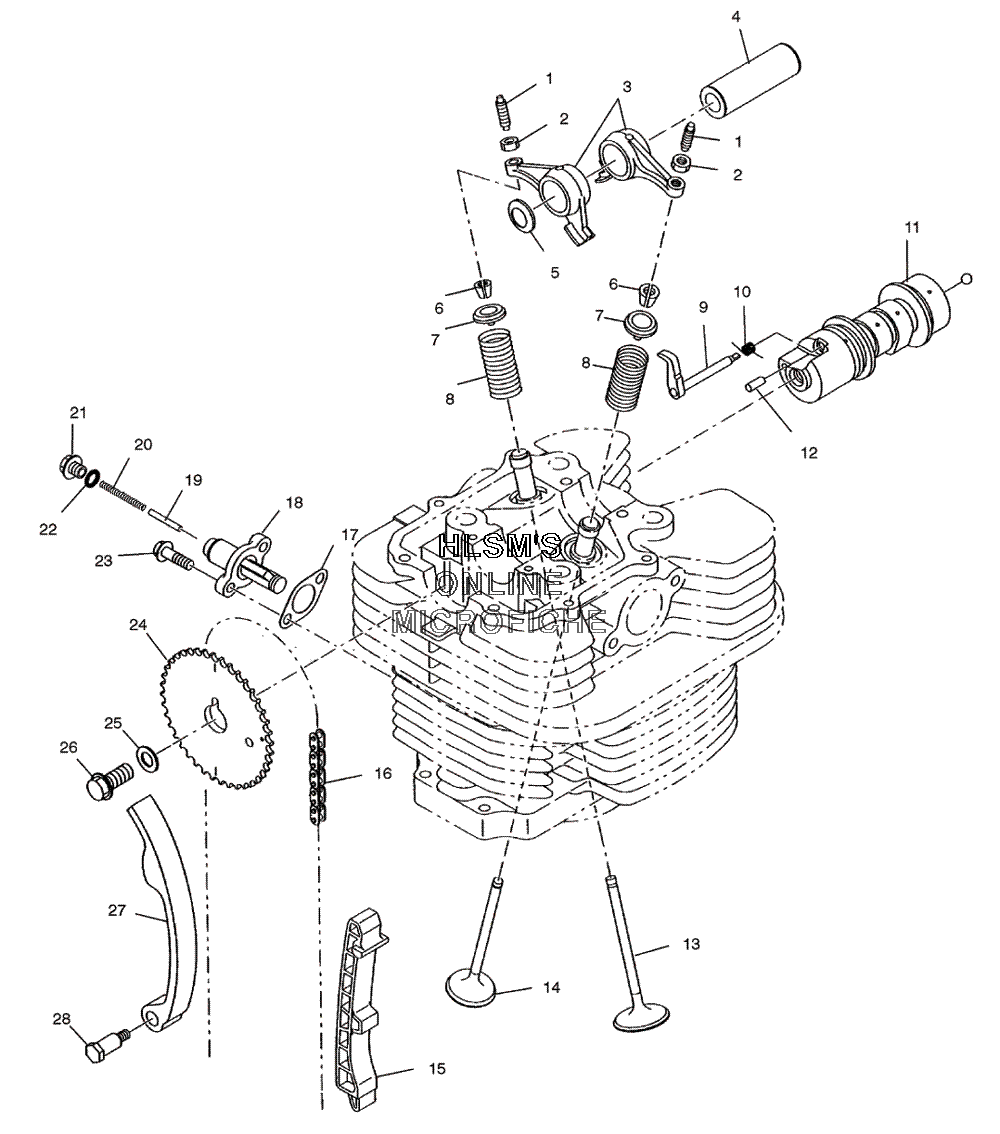

CAMSHAFT W/ VALVE ASSY. для Polaris TRAIL BOSS 330 (A04CA32AA) (SONIC BLUE) (USA) - 2004 года выпуска
-
№АртикулНазвание
-
13084911 SCREW, ADJUSTSCREW, ADJUST
-
23084912 NUTNUT
-
33084910 ROCKER ARM ASSY, INTAKE (INCL. 1, 2)ROCKER ARM ASSY, INTAKE (INCL. 1, 2)
-
43087053 SHAFT ROCKERSHAFT ROCKER
-
53085836 WASHER WAVEWASHER WAVE
-
63084908 COLLET, VALVECOLLET, VALVE
-
73087203 RETAINER VALVE SPRINGRETAINER VALVE SPRING
-
83087248 SPRING, VALVESPRING, VALVE
-
93086439 LEVER, RELEASE ASSYLEVER, RELEASE ASSY
-
103086804 SPRING RETURNSPRING RETURN
-
113087247 CAMSHAFT, ASSY (INCL. 9-12)CAMSHAFT, ASSY (INCL. 9-12)
-
123087254 PIN, DOWELPIN, DOWEL
-
133085778 VALVE, INTAKEVALVE, INTAKE
-
143086441 VALVE EXHAUSTVALVE EXHAUST
-
153086445 GUIDE CHAINGUIDE CHAIN
-
163086444 CHAIN TIMINGCHAIN TIMING
-
173086448 GASKET TENSIONERGASKET TENSIONER
-
183086493 TENSIONER, ASSYTENSIONER, ASSY
-
193087132 PINPIN
-
203087131 SPRING, TENSIONERSPRING, TENSIONER
-
213087129 PLUGPLUG
-
223087130 GASKET, PLUGGASKET, PLUG
-
233083361 BOLT, FLANGEBOLT, FLANGE
-
243086443 SPROCKET 2SPROCKET 2
-
253087249 WASHERWASHER
-
263086449 BOLT, FLANGEBOLT, FLANGE
-
273086446 LEVER, ASSYLEVER, ASSY
-
283084924 BOLT, PIVOT LEVER ASSYBOLT, PIVOT LEVER ASSY
