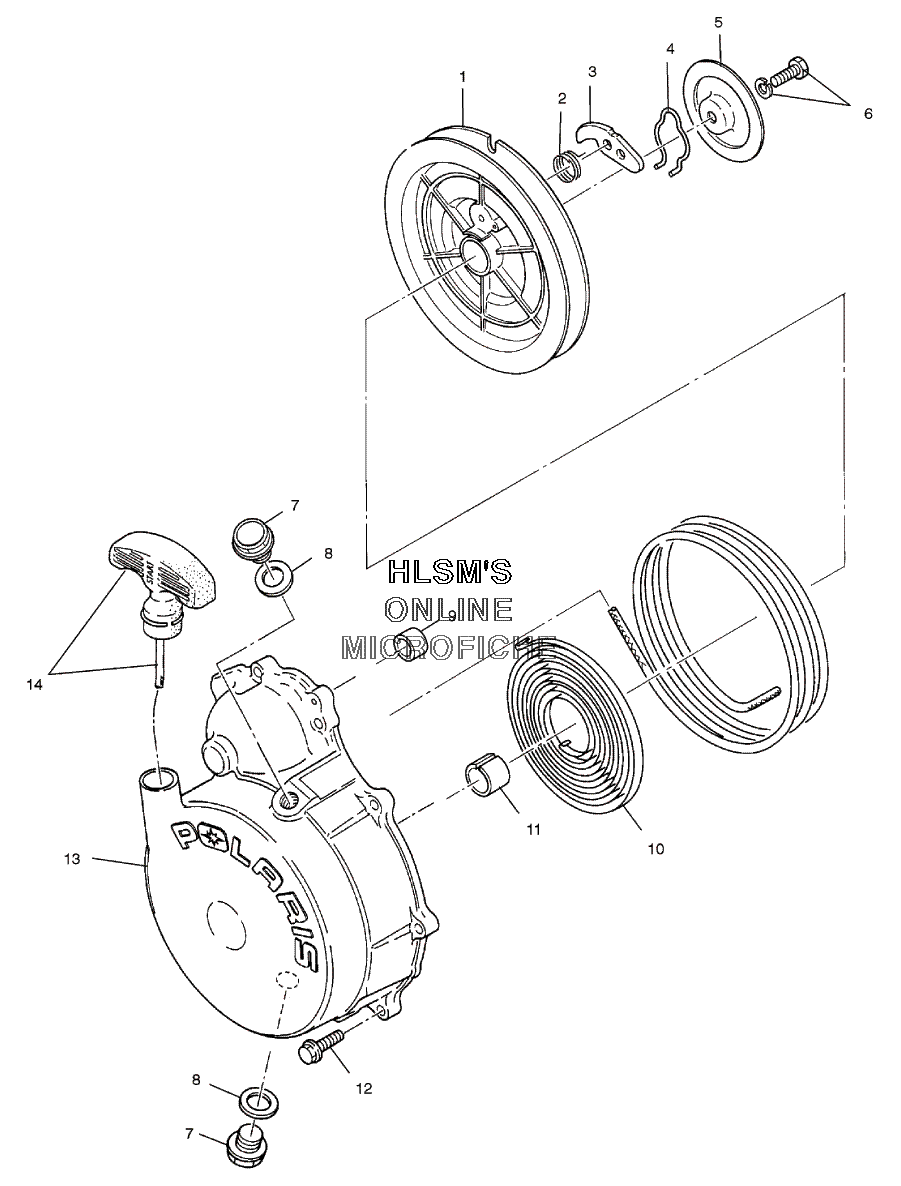

STARTER - RECOIL для Polaris TRAIL BOSS 330 (A04CA32AA) (SONIC BLUE) (USA) - 2004 года выпуска
-
№АртикулНазвание
-
13084822 REEL, ASSYREEL, ASSY
-
23083463 SPRING, RETURNSPRING, RETURN
-
33083378 RATCHETRATCHET
-
43083379 SPRING, FRICTIONSPRING, FRICTION
-
53084744 PLATE, FRICTIONPLATE, FRICTION
-
63085266 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
73086749 PLUGPLUG
-
83082956 GASKETGASKET
-
93083669 BUSHING, STARTERBUSHING, STARTER
-
103083185 SPRING, SPIRALSPRING, SPIRAL
-
113084750 BUSHINGBUSHING
-
123087150 BOLT FLANGEBOLT FLANGE
-
133087163 RECOIL, ASSY (INCL. 1-6, 9-11, 13, 14)RECOIL, ASSY (INCL. 1-6, 9-11, 13, 14)
-
133087164 CASE, STARTER ASSY (INCL. 11)CASE, STARTER ASSY (INCL. 11)
-
143085083 ROPE ASSYROPE ASSY
