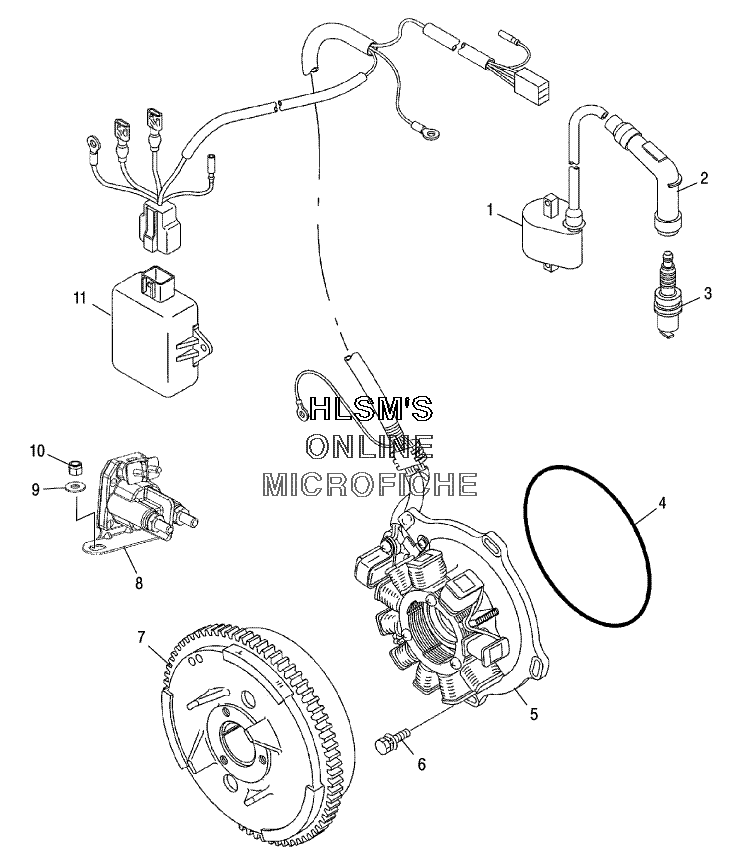

MAGNETO для Polaris MAGNUM 330 2X4 (A05CB32AA) - 2005 года выпуска
-
№АртикулНазвание
-
113088209 ASSY. CDI SYSTEMASSY. CDI SYSTEM
-
13087036 ASSY.-IGNITION COIL (INCL. 2)ASSY.-IGNITION COIL (INCL. 2)
-
23087037 CAP-SPARK PLUGCAP-SPARK PLUG
-
33070172 SPARK PLUG, BKR6ESPARK PLUG, BKR6E
-
43084978 O-RINGO-RING
-
53089275 ASSY.STATOR PLATEASSY.STATOR PLATE
-
63081657 BOLT & WASHER ASSY.BOLT & WASHER ASSY.
-
73087251 FLYWHEEL W/RING GEARFLYWHEEL W/RING GEAR
-
84011072 SUBSTITUTED BY 4011251 (IF BUILT BEFORE 1/05/05)SUBSTITUTED BY 4011251 (IF BUILT BEFORE 1/05/05)
-
84011251 SWITCH-MAGNETIC (IF BUILT AFTER 1/05/05)SWITCH-MAGNETIC (IF BUILT AFTER 1/05/05)
-
97552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
