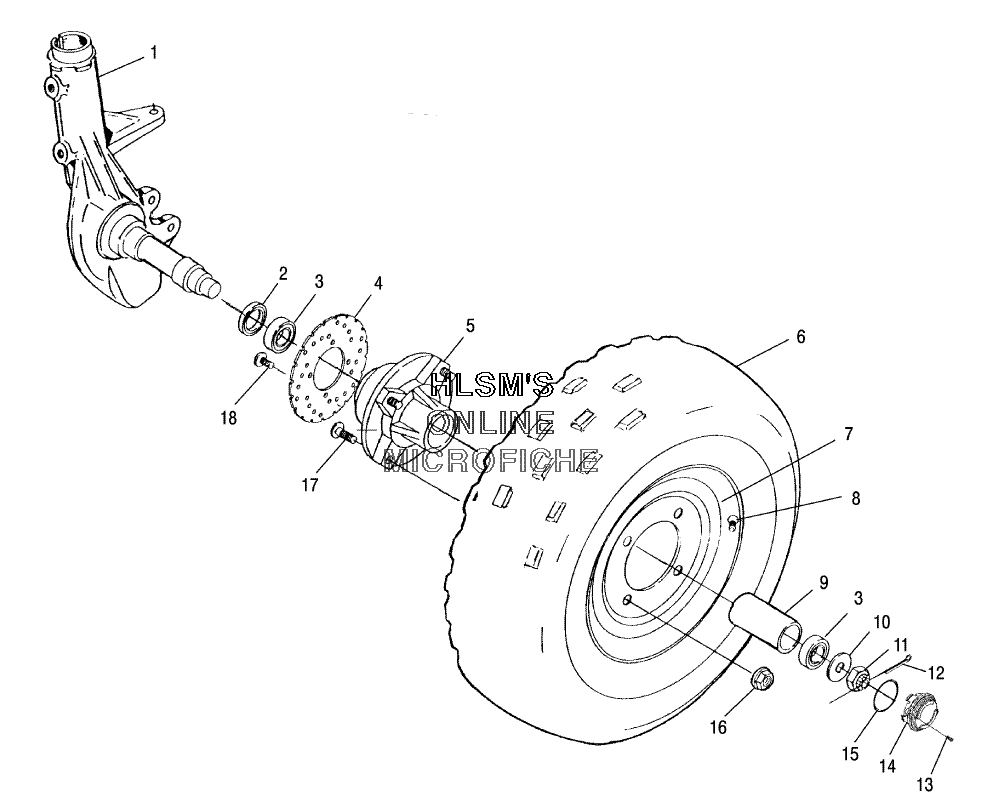

WHEEL - FRONT для Polaris MAGNUM 330 2X4 (A05CB32AA) - 2005 года выпуска
-
№АртикулНазвание
-
23610020 SEAL, FRONT HUBSEAL, FRONT HUB
-
33513519 BEARING, BALLBEARING, BALL
-
45243676 DISC, BRAKE, 8.95 OD .158DISC, BRAKE, 8.95 OD .158
-
55132627 HUB-WHEEL 2WD, MACHINEDHUB-WHEEL 2WD, MACHINED
-
65411709 TIRE, 24X8-12, TITANTIRE, 24X8-12, TITAN
-
71520269-067 RIM, FRONT, (BLACK)RIM, FRONT, (BLACK)
-
81525017 VALVE, RIMVALVE, RIM
-
95010256 SPACER, HUB, FRONTSPACER, HUB, FRONT
-
107555721 WASHERWASHER
-
117542712 NUTNUT
-
127661402 PIN, COTTERPIN, COTTER
-
137511866 SCREWSCREW
-
145433868 CAP, HUBCAP, HUB
-
155410470 O-RINGO-RING
-
167547237 NUT-FLANGE, TWO PIECE, 3/8-24NUT-FLANGE, TWO PIECE, 3/8-24
-
177515513 STUDSTUD
