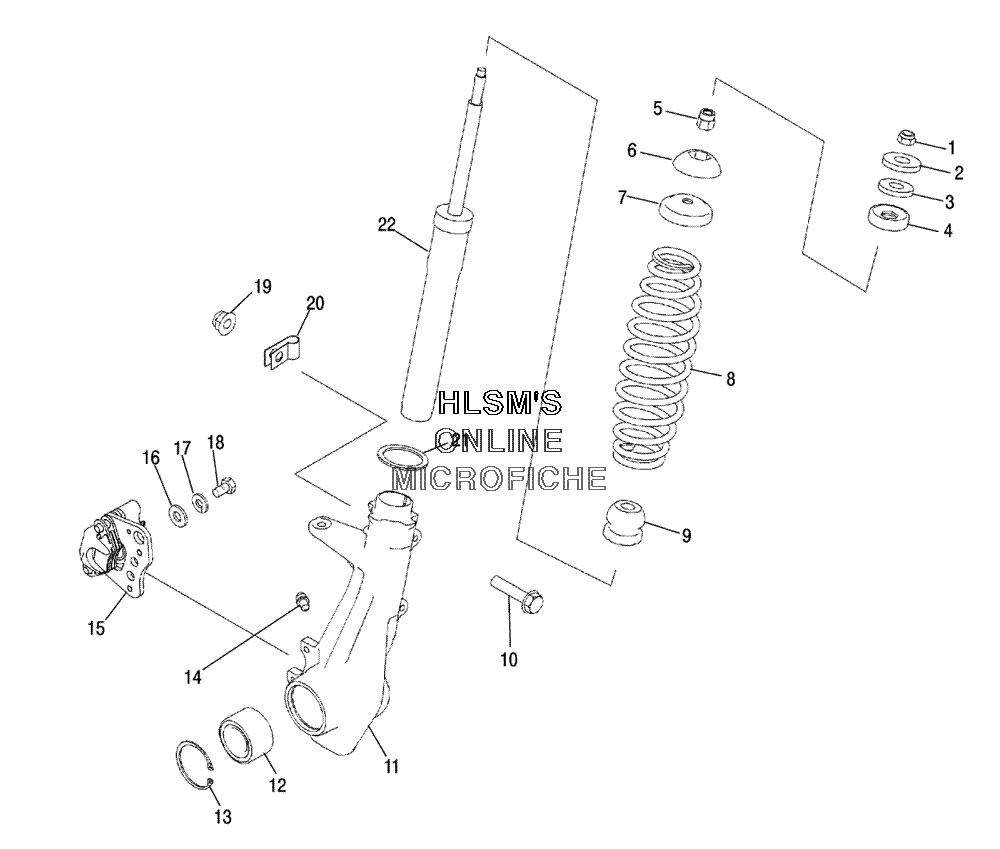

SUSPENSION - FRONT STRUT для Polaris MAGNUM 330 4X4 (A05CD32AB) (CAMO GREEN METALLIC) - 2005 года выпуска
-
№АртикулНазвание
-
17547104 NUTNUT
-
27555749 WASHERWASHER
-
35810291 SPACER RUBBERSPACER RUBBER
-
45432872 PIVOT BALL TOPPIVOT BALL TOP
-
55132062 SPACERSPACER
-
65432871 PIVOT BALL BOTTOMPIVOT BALL BOTTOM
-
75243364 RETAINER SPRINGRETAINER SPRING
-
87042312-067 SPRING COMP (BLACK)SPRING COMP (BLACK)
-
95411608 BUMPER MCU (8MM)BUMPER MCU (8MM)
-
107518340 BOLT HEXAGON FLANGEBOLT HEXAGON FLANGE
-
115134154 HUBSTRUT VL ASSY. (LEFT)HUBSTRUT VL ASSY. (LEFT)
-
115134155 HUBSTRUT VL ASSY. (RIGHT)HUBSTRUT VL ASSY. (RIGHT)
-
123514342 BEARING AXLE TUBE HUBSTRUTBEARING AXLE TUBE HUBSTRUT
-
137710507 RING RET (2.500 INTERNAL)RING RET (2.500 INTERNAL)
-
147080306 FITTING LUBE WITH BALL CHECKFITTING LUBE WITH BALL CHECK
-
167558402 WASHER FLATWASHER FLAT
-
177552901 WASHER SPRING LOCKWASHER SPRING LOCK
-
187512365 SCREW CAPSCREW CAP
-
197542343 NUT FLANGENUT FLANGE
-
207080367 CLAMP CABLECLAMP CABLE
-
215211115 WASHERWASHER
-
227041761 STURT, FRONT (18X30MM, 153.8MM)STURT, FRONT (18X30MM, 153.8MM)
