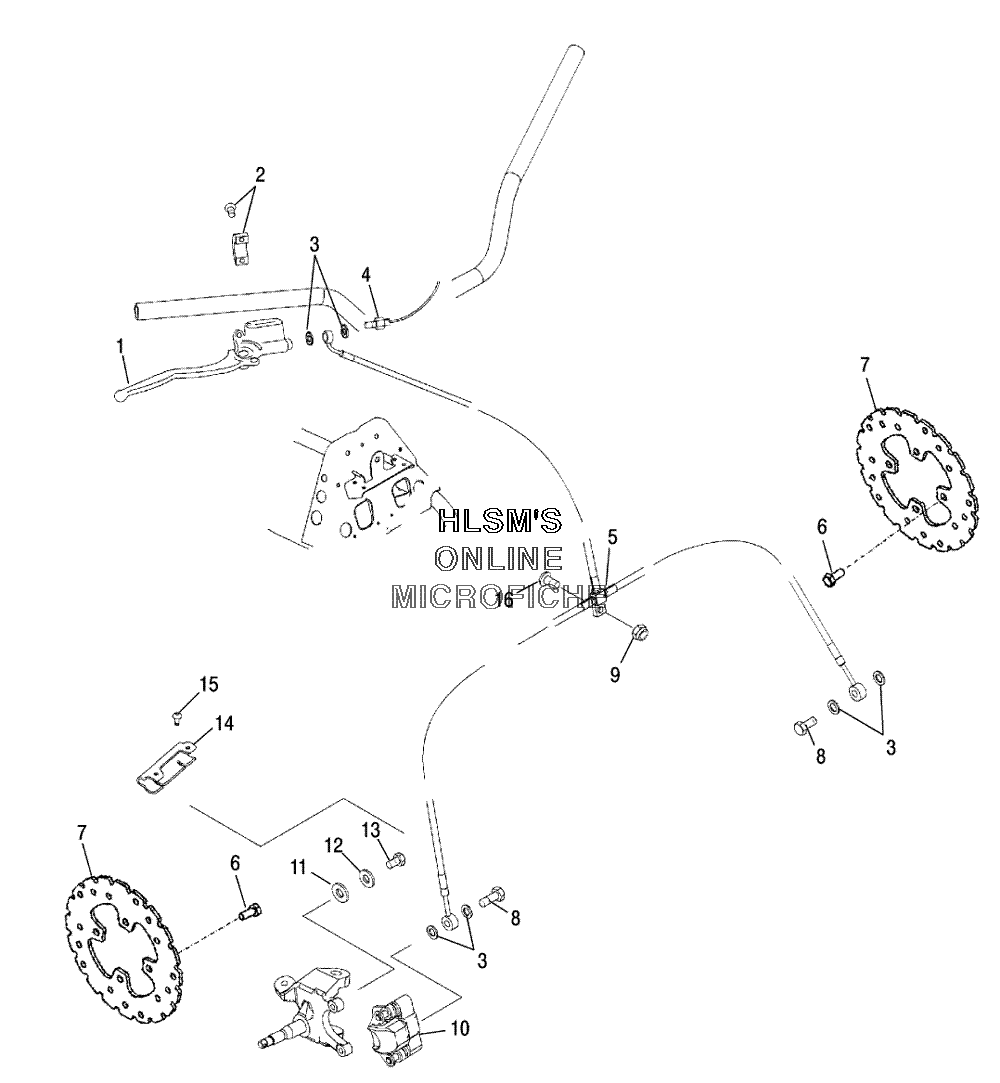

BRAKE - FRONT для Polaris PHOENIX 200 (A05PB20AA) (INDY RED) - 2005 года выпуска
-
№АртикулНазвание
-
11910590 MASTER CYLINDER ASSY (1/2") (REMOTE)MASTER CYLINDER ASSY (1/2") (REMOTE)
-
22202409 MASTER CYLINDER CLAMP KIT, HB3PMASTER CYLINDER CLAMP KIT, HB3P
-
35410988 SEALSEAL
-
44010758 SWITCH PRESSURE, BRAKE W/CONSWITCH PRESSURE, BRAKE W/CON
-
51910884 LINE BRAKE, J/B CRIMPED (FRONT)LINE BRAKE, J/B CRIMPED (FRONT)
-
67512325 BOLTBOLT
-
75247752 BRAKE DISC (7.0 OD)BRAKE DISC (7.0 OD)
-
81910499 BOLT BANJO (10MMX1.00)BOLT BANJO (10MMX1.00)
-
97542122 NUT NYLOKNUT NYLOK
-
117558402 WASHER, FLATWASHER, FLAT
-
127552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
137512365 SCREW, CAPSCREW, CAP
-
145435861 RETAINER BRAKE LINE (FRONT)RETAINER BRAKE LINE (FRONT)
-
157517396 SCREWSCREW
-
167512297 SCREWSCREW
