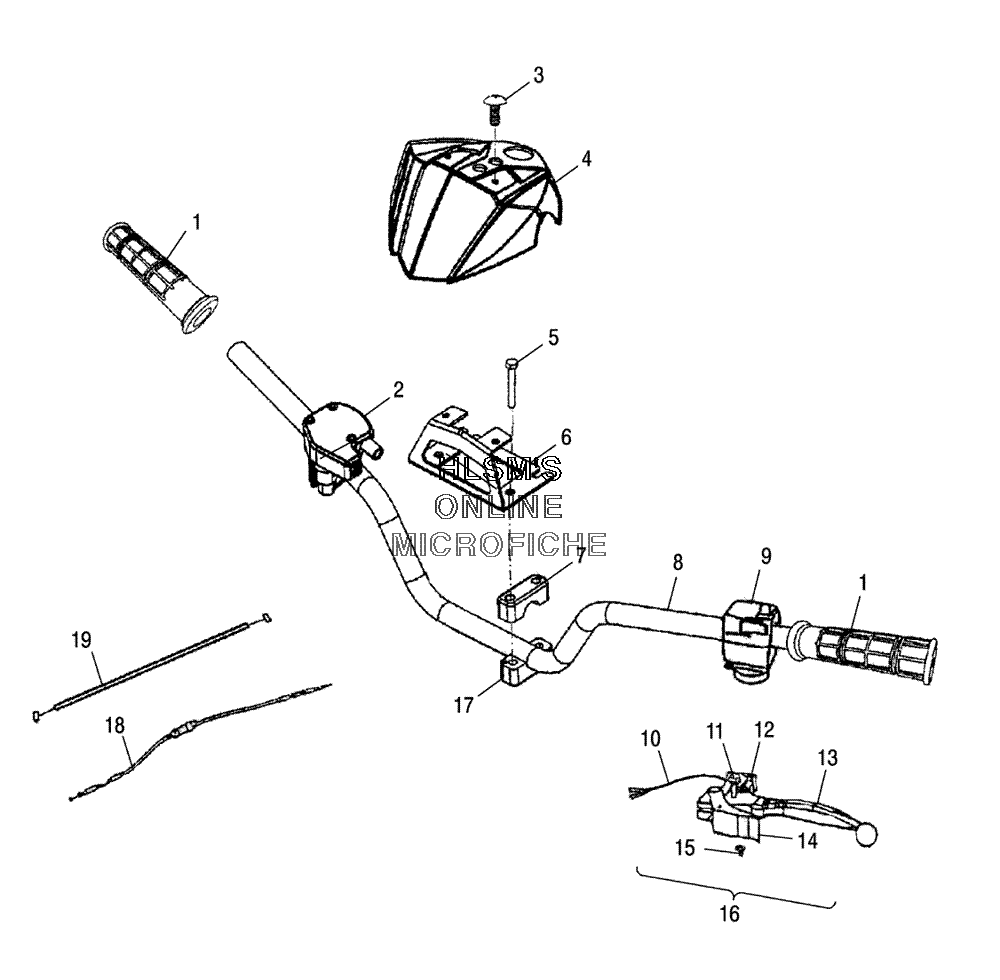

HANDLEBAR для Polaris PHOENIX 200 (A05PB20AA) (INDY RED) - 2005 года выпуска
-
№АртикулНазвание
-
10452683 GRIP HANDLEBARGRIP HANDLEBAR
-
20452696 CONTROL THROTTLECONTROL THROTTLE
-
30450622 BOLT PHILLIPSBOLT PHILLIPS
-
40452694-070 POD HANDLEBAR (BLACK)POD HANDLEBAR (BLACK)
-
50452699 BOLT HEXAGON (M8X60)BOLT HEXAGON (M8X60)
-
60452695 BRACKET PODBRACKET POD
-
70452688 CLAMP HANDLEBAR (UPPER)CLAMP HANDLEBAR (UPPER)
-
80452681 HANDLEBAR ASSYHANDLEBAR ASSY
-
90452693 SWITCH ASSY (LEFT)SWITCH ASSY (LEFT)
-
100450836 HARNESS, SENSOR SWITCHHARNESS, SENSOR SWITCH
-
110450807 BOLT BRAKE LEVER (LEFT)BOLT BRAKE LEVER (LEFT)
-
120452692 CAM LOCK, BRAKECAM LOCK, BRAKE
-
130452691 LEVER BRAKE (LEFT)LEVER BRAKE (LEFT)
-
140450692 HAND BRAKE LOCKHAND BRAKE LOCK
-
150450808 NUT LOCKNUT LOCK
-
160452914 BRAKE LEVER ASSY (LEFT/BLACK)BRAKE LEVER ASSY (LEFT/BLACK)
-
170452685 CLAMP HANDLEBAR (LOWER)CLAMP HANDLEBAR (LOWER)
-
180452689 CABLE THROTTLECABLE THROTTLE
-
190452697 CHOKE, CABLE MANUALCHOKE, CABLE MANUAL
Все узлы модели:
- AIR BOX ASSY.
- BRAKE - FRONT
- BRAKE - FRONT AND REAR CALIPER
- BRAKE - REAR
- BUMPER MOUNTING - FRONT W/ HEADLIGHT AND TURN SIGNAL ASSY.
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CRANKCASE
- CRANKCASE COVER - LEFT
- CRANKCASE COVER - RIGHT
- CRANKSHAFT W/ PISTON
- CYLINDER HEAD
- DECALS
- DRIVE - REAR
- ELECTRICAL COMPONENTS
- EXHAUST SYSTEM
- FENDER - REAR W/ SEAT
- FRAME
- FUEL TANK
- • HANDLEBAR
- HEADLIGHT / BRAKELIGHT
- STARTING MOTOR /W GENERATOR
- STEERING POST
- SUSPENSION
- SUSPENSION - REAR SWING ARM
- SUSPENSION - SWING ARM W/ FOOTREST
- TRANSMISSION - SHIFTER ASSY.
- WHEEL - FRONT
- WHEEL - REAR
- WHEEL - REAR W/ AXLE
