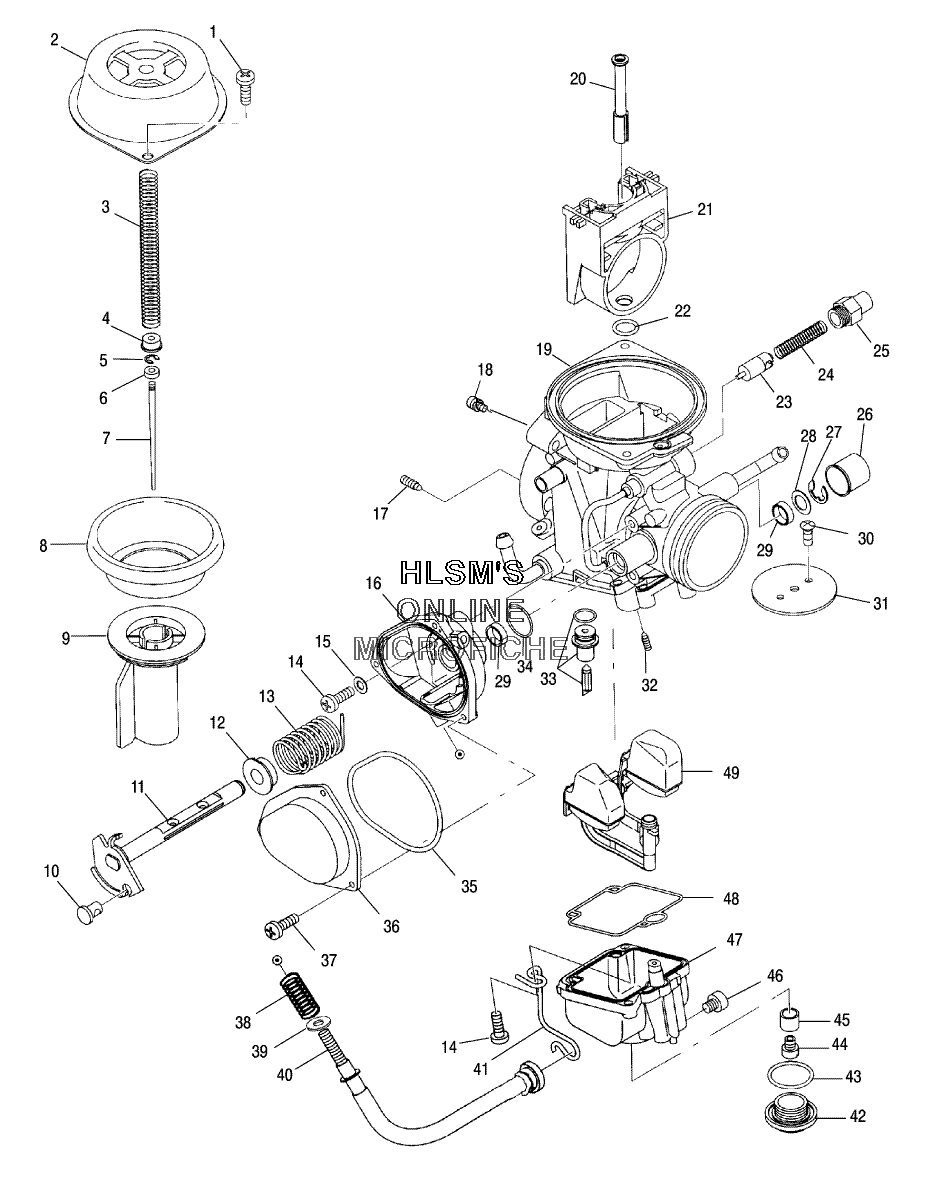

CARBURETOR для Polaris SCRAMBLER 500 4X4 (A05BG50AA) - 2005 года выпуска
-
№АртикулНазвание
-
13130821 SCREWSCREW
-
23130914 COVER DIAPHRAGMCOVER DIAPHRAGM
-
33130911 SPRINGSPRING
-
43130913 RINGRING
-
53130908 RING ERING E
-
63130915 RINGRING
-
73131358 NEEDLE JETNEEDLE JET
-
83130910 DIAPHRAGMDIAPHRAGM
-
93130912 VALVE PISTONVALVE PISTON
-
103130543 GUIDE CABLEGUIDE CABLE
-
113130931 THROTTLE SHAFT ASSYTHROTTLE SHAFT ASSY
-
123130932 RINGRING
-
133130927 SPRINGSPRING
-
143130933 SCREWSCREW
-
153130926 WASHERWASHER
-
163130925 CASECASE
-
173130619 JET AIRJET AIR
-
183084205 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
193131568 CARBURETOR ASSY (INCL. ALL LESS 18)CARBURETOR ASSY (INCL. ALL LESS 18)
-
203131594 JET NEEDLEJET NEEDLE
-
213130909 BLOCK JETBLOCK JET
-
223130916 RING ORING O
-
233130539 PLUNGER ASSYPLUNGER ASSY
-
243130538 SPRINGSPRING
-
253130199 HOLDER GUIDEHOLDER GUIDE
-
263130519 CAPCAP
-
273130518 E-RINGE-RING
-
293130515 SEALSEAL
-
303131475 SCREWSCREW
-
313130907 VALVE THROTTLEVALVE THROTTLE
-
323130624 JET PILOTJET PILOT
-
333131359 VALVE NEEDLEVALVE NEEDLE
-
343130928 O-RINGO-RING
-
353130929 O-RINGO-RING
-
363130930 COVERCOVER
-
373130924 SCREWSCREW
-
383130010 SPRING THROTTLE ADJUSTERSPRING THROTTLE ADJUSTER
-
393131296 WASHERWASHER
-
403131295 CABLE ADJUSTER ASSYCABLE ADJUSTER ASSY
-
413131242 CLIPCLIP
-
423130321 BOLT BANJOBOLT BANJO
-
433130239 O-RINGO-RING
-
443130571 MAIN JETMAIN JET
-
453130919 RINGRING
-
463130935 SCREWSCREW
-
473130923 FLOAT BODY ASSYFLOAT BODY ASSY
-
483130917 SEALSEAL
-
493130921 FLOAT, ASSYFLOAT, ASSY
