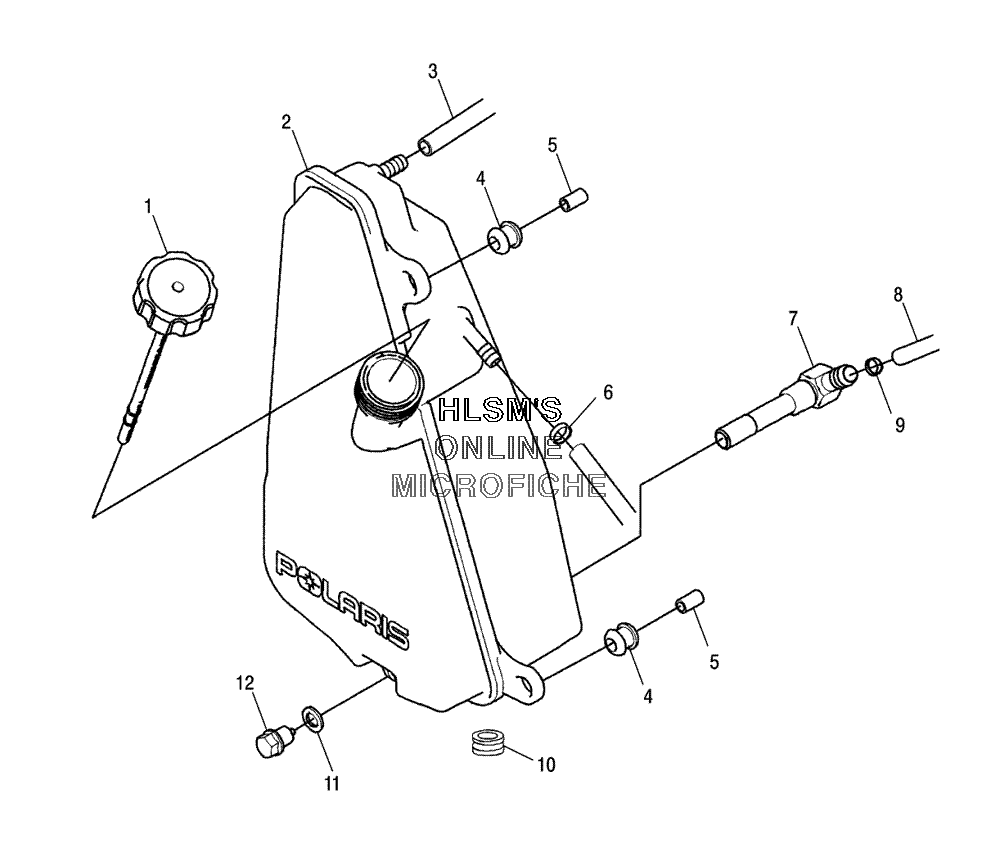

OIL TANK для Polaris SCRAMBLER 500 4X4 (A05BG50AA) - 2005 года выпуска
-
№АртикулНазвание
-
15434307 DIPSTICKDIPSTICK
-
21261175 TANK OIL PLASTICTANK OIL PLASTIC
-
35411873 HOSE BREATHER SLITHOSE BREATHER SLIT
-
45410828 GROMMET MOUNTING RESERVOIRGROMMET MOUNTING RESERVOIR
-
55333204 BUSHING MOUNTINGBUSHING MOUNTING
-
67080699 CLAMP HOSECLAMP HOSE
-
77052326 SCREEN OIL FILTER 90ШSCREEN OIL FILTER 90Ш
-
85412227 HOSE FORMED 1/2IDHOSE FORMED 1/2ID
-
97081026 CLAMP HOSE SPRINGCLAMP HOSE SPRING
-
105412507 GROMMETGROMMET
-
115850135 WASHERWASHER
-
127051524 PLUGPLUG
