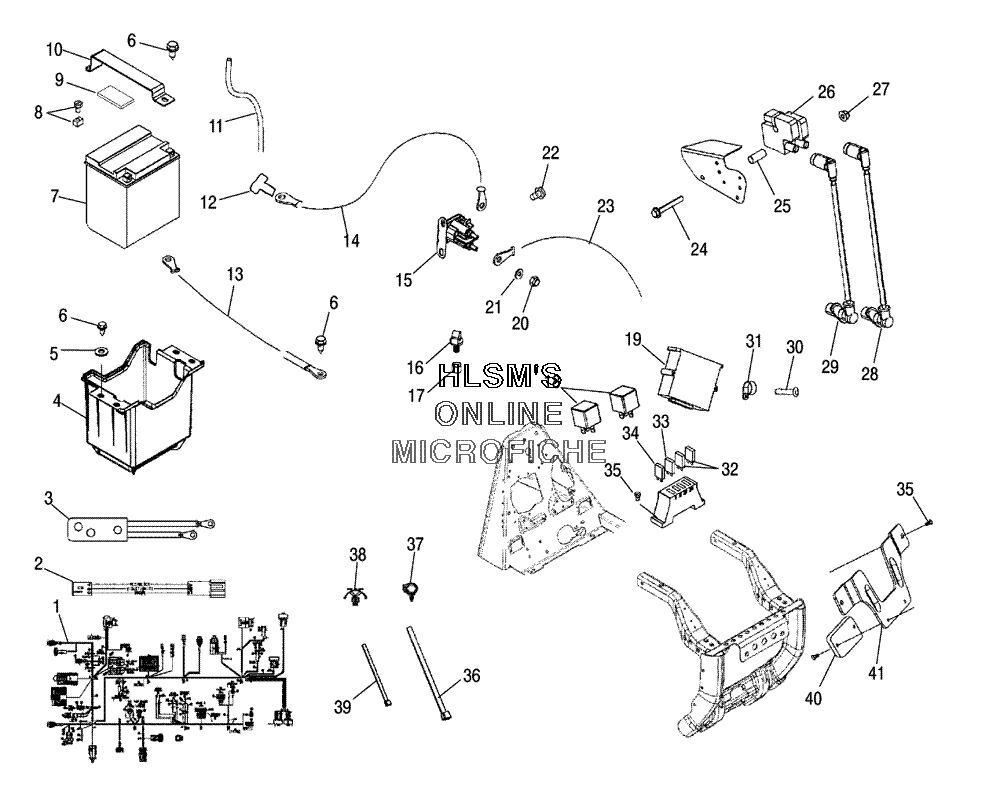

ELECTRICAL COMPONENTS для Polaris SPORTSMAN 800 EFI (A05MH76AU) (BLACK METALLIC) - 2005 года выпуска
-
№АртикулНазвание
-
12410528 HARNESS MAINHARNESS MAIN
-
22410587 HARNESSHARNESS
-
32410535 HARNESS WINCH, PREWIREHARNESS WINCH, PREWIRE
-
45435696 BOX BATTERYBOX BATTERY
-
57555859 WASHER, FLATWASHER, FLAT
-
67512232 BOLTBOLT
-
74011224 BATTERY SEALED (30 AH) (360 CCA)BATTERY SEALED (30 AH) (360 CCA)
-
82202848 BATTERY BOLT KITBATTERY BOLT KIT
-
95810455 PADPAD
-
105247376 STRAP BATTERY, HOLD DOWN (30 AMP)STRAP BATTERY, HOLD DOWN (30 AMP)
-
115432077 TUBE, VENTTUBE, VENT
-
125412874 BOOT BATTERY CABLE, RECT (IF BUILT AFTER 11/29/04)BOOT BATTERY CABLE, RECT (IF BUILT AFTER 11/29/04)
-
134011139 CABLE, COM (BATTERY/FRAME) (BLACK)CABLE, COM (BATTERY/FRAME) (BLACK)
-
144011286 CABLE BATTERY/SOLENOID (8.5) (RED) (IF BUILT BEFORE 11/29/04)CABLE BATTERY/SOLENOID (8.5) (RED) (IF BUILT BEFORE 11/29/04)
-
144010471 CABLE BATTERY/SOLENOID (8.5) (RED) (IF BUILT AFTER 11/29/04)CABLE BATTERY/SOLENOID (8.5) (RED) (IF BUILT AFTER 11/29/04)
-
154011072 SWITCH, MAGNETIC (IF BUILT BEFORE 1/10/05)SWITCH, MAGNETIC (IF BUILT BEFORE 1/10/05)
-
154011251 SWITCH MAGNETIC (IF BUILT AFTER 1/10/05)SWITCH MAGNETIC (IF BUILT AFTER 1/10/05)
-
165432302 CLIP, OIL LINE RET.CLIP, OIL LINE RET.
-
177080399 BUSHING, OPEN/CLOSEBUSHING, OPEN/CLOSE
-
184011141 RELAY SEALED, NO MOUNT TABRELAY SEALED, NO MOUNT TAB
-
194011256 ECU CALIBRATION ATVECU CALIBRATION ATV
-
207547283 NUT, HEXAGON JAM Y (1/4 20)NUT, HEXAGON JAM Y (1/4 20)
-
217552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
227512084 SCREWSCREW
-
234010376 CABLE, SOLENOID/STATER (.25")CABLE, SOLENOID/STATER (.25")
-
245248725 BRACKET MOUNT, VOLTAGE REG PLATEDBRACKET MOUNT, VOLTAGE REG PLATED
-
255133658 SPACER COILSPACER COIL
-
264010425 COIL EFICOIL EFI
-
277542151 NUTNUT
-
284011060 WIRE SPARKPLUG (59.3CM)WIRE SPARKPLUG (59.3CM)
-
294011059 WIRE SPARKPLUG (49.5CM)WIRE SPARKPLUG (49.5CM)
-
307518322 SCREW, TX/PH TRI WAX (10 24X1.75)SCREW, TX/PH TRI WAX (10 24X1.75)
-
317080585 CLAMP, 1" HOSECLAMP, 1" HOSE
-
322410365 FUSE SELF RESETTING (20 AMP)FUSE SELF RESETTING (20 AMP)
-
332410364 FUSE SELF RESETTING (15 AMP)FUSE SELF RESETTING (15 AMP)
-
342410363 FUSE SELF RESETTING (6 AMP)FUSE SELF RESETTING (6 AMP)
-
357512024 SCREWSCREW
-
367080492 CABLE TIE, 11 INCHCABLE TIE, 11 INCH
-
374020149 CLIP, ROSEBUDCLIP, ROSEBUD
-
387080965 MOUNT CABLE TIE (.25)MOUNT CABLE TIE (.25)
-
397080138 CABLE TIECABLE TIE
-
404011100 REGULATOR VOLT, 3PH. TALL FINREGULATOR VOLT, 3PH. TALL FIN
-
415248725 BRACKET, MOUNT VOLTAGE REGULATOR PLATEDBRACKET, MOUNT VOLTAGE REGULATOR PLATED
