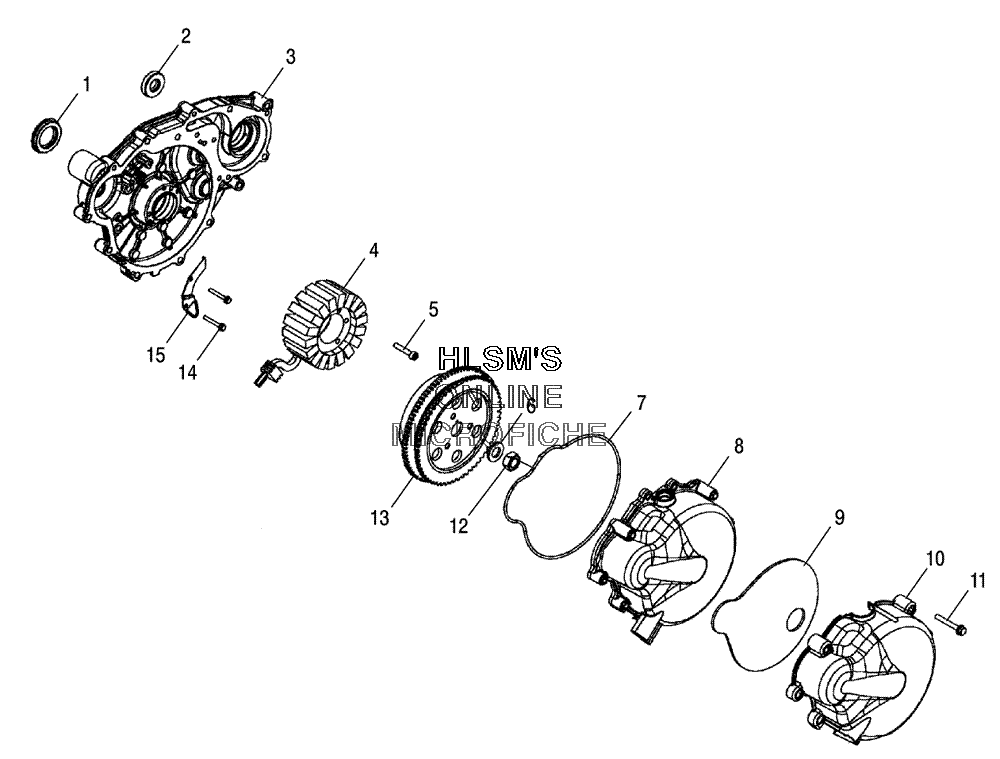

MAGNETO для Polaris SPORTSMAN 800 EFI (A05MH76AU) (BLACK METALLIC) - 2005 года выпуска

№

Артикул

Название
1

5412048 SEAL FLANGED W/HELIX (24X44X10)

SEAL FLANGED W/HELIX (24X44X10)

4 160 ₽
2

5412455 SEAL OIL (15X35X8)

SEAL OIL (15X35X8)

5 830 ₽
3

1200002 COVER ENGINE KIT (MAG)

COVER ENGINE KIT (MAG)

41 600 ₽
4

4010911 STATOR

STATOR

106 080 ₽
5

7517848 SCREW, SOC/CP Y/D (M6X1.0X35)

SCREW, SOC/CP Y/D (M6X1.0X35)

750 ₽
6

7555907 WASHER

WASHER

750 ₽
7

5412458 O-RING

O-RING

1 870 ₽
8

1202513 COVER STATOR DIE CAST ASSY

COVER STATOR DIE CAST ASSY

27 040 ₽
9

5812283 COVER SOUND DAMPENING

COVER SOUND DAMPENING

3 750 ₽
10

5435099 COVER STATOR (OUTER)

COVER STATOR (OUTER)

0 ₽
11

7517950 SCREW, HEXAGON FLANGE Y/D (M6X1.0X45)

SCREW, HEXAGON FLANGE Y/D (M6X1.0X45)

750 ₽
12

7547213 NUT, HEX Y (M14X1.50)

NUT, HEX Y (M14X1.50)

460 ₽
13

4010912 FLYWHEEL ENCODER KOK (W/160MM)

FLYWHEEL ENCODER KOK (W/160MM)

68 640 ₽
14

7517950 SCREW, HEXAGON FLANGE Y/D (M6X1.0X45)

SCREW, HEXAGON FLANGE Y/D (M6X1.0X45)

750 ₽
15

5245364 STATOR, BRACKET WIRE HOLD DOWN

STATOR, BRACKET WIRE HOLD DOWN

6 030 ₽
