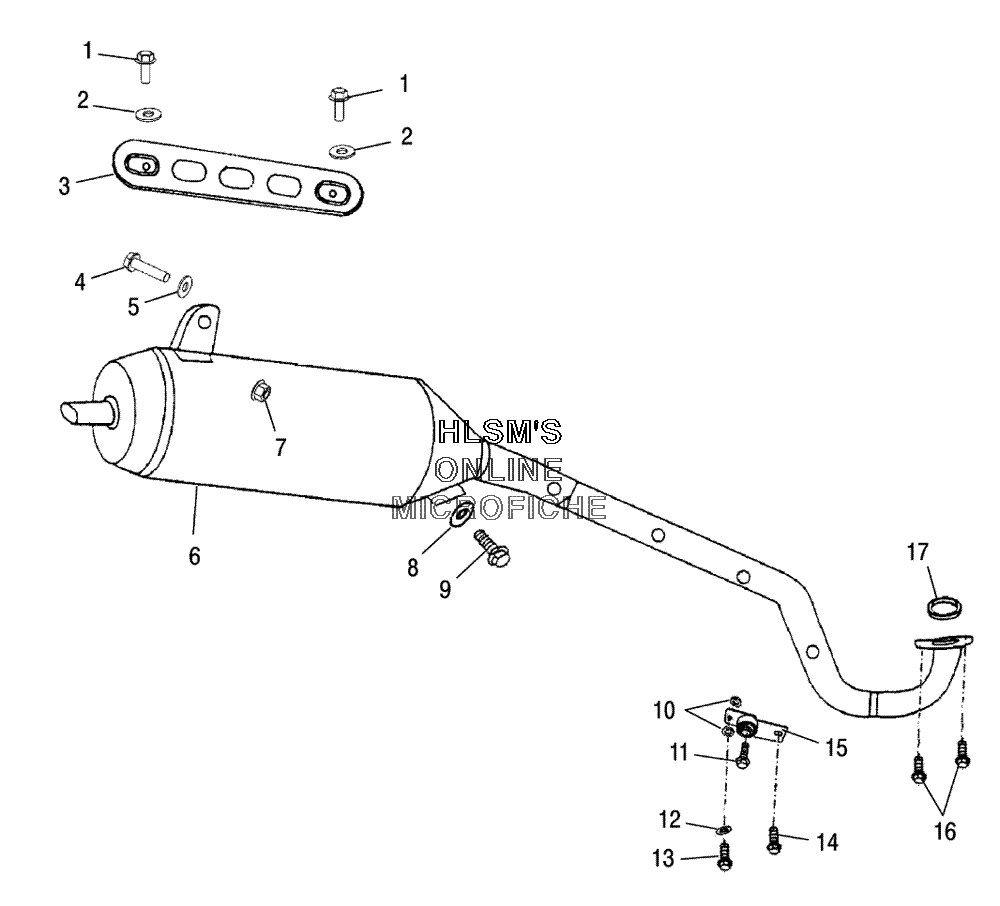

EXHAUST SYSTEM для Polaris SPORTSMAN 90 (A05FA09CB) (N.B.U. SUB CAMO) - 2005 года выпуска
-
№АртикулНазвание
-
10450658 BOLT PHILLIPS PANBOLT PHILLIPS PAN
-
20450126 GASKETGASKET
-
30450657 PROTECTORPROTECTOR
-
40450684 BOLT HEXAGON WASHERBOLT HEXAGON WASHER
-
50450279 WASHERWASHER
-
60452120 PIPE EXHAUSTPIPE EXHAUST
-
70450282 NUT LOCKNUT LOCK
-
80450659 GASKETGASKET
-
90450325 BOLT HEXAGONBOLT HEXAGON
-
100452122 GASKET EXHAUST BRACKETGASKET EXHAUST BRACKET
-
110452123 BOLT HEXAGON WASHER FACEBOLT HEXAGON WASHER FACE
-
120451702 WASHER SPRINGWASHER SPRING
-
130450323 BOLT HEXAGONBOLT HEXAGON
-
140450298 BOLT HEXAGONBOLT HEXAGON
-
150450128 PLATE FIXED EXHAUSTPLATE FIXED EXHAUST
-
160450123 BOLT HEXAGON WASHBOLT HEXAGON WASH
-
170450122 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
